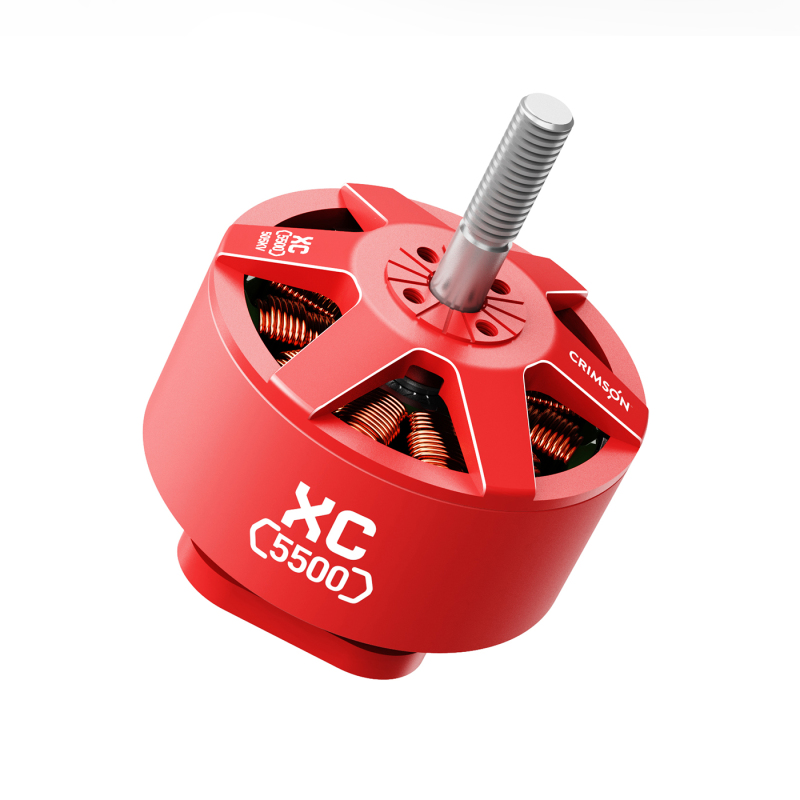

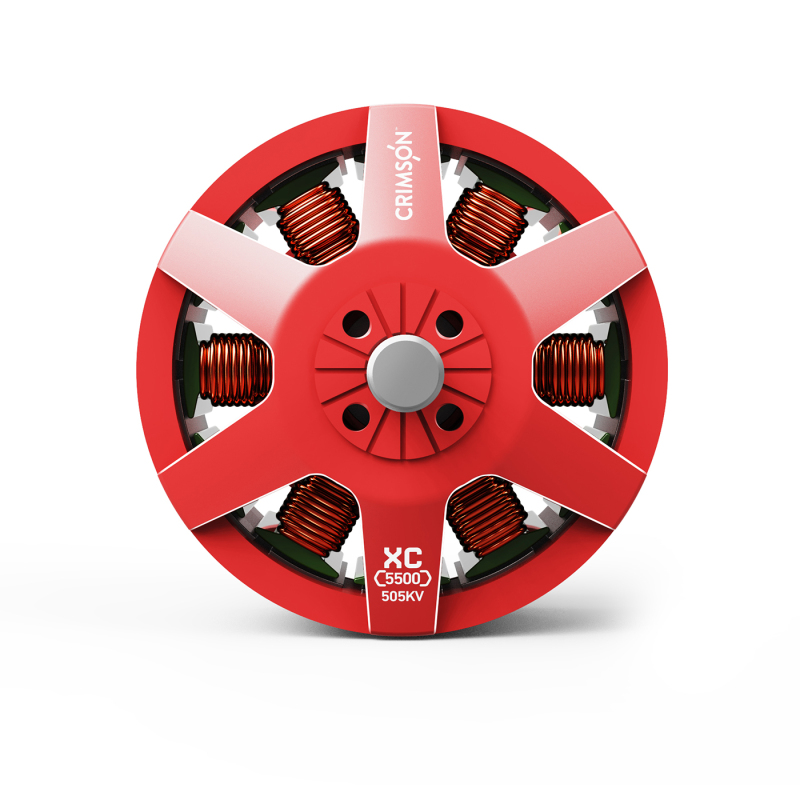

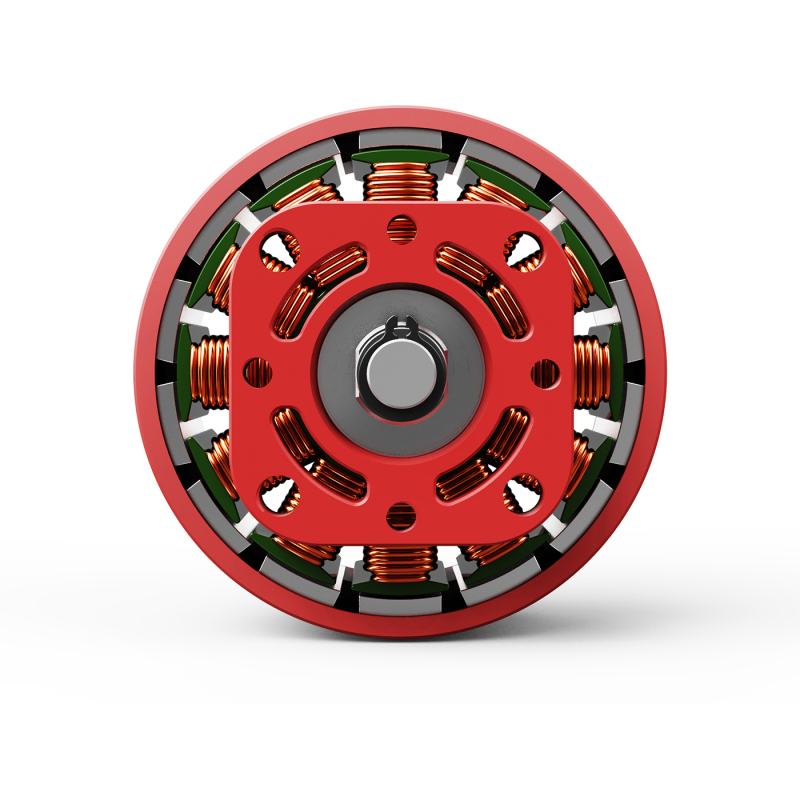

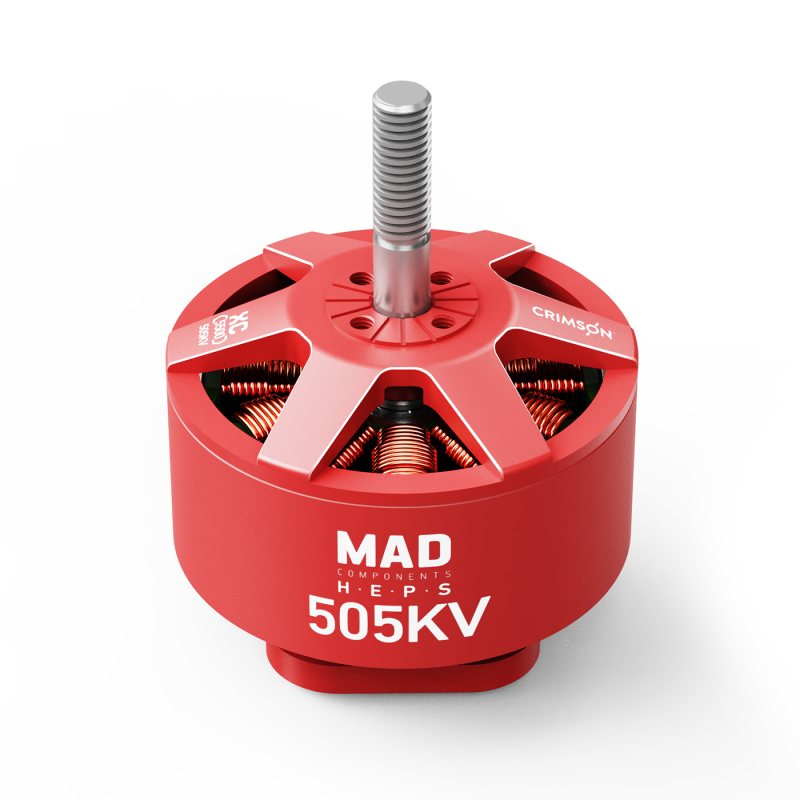

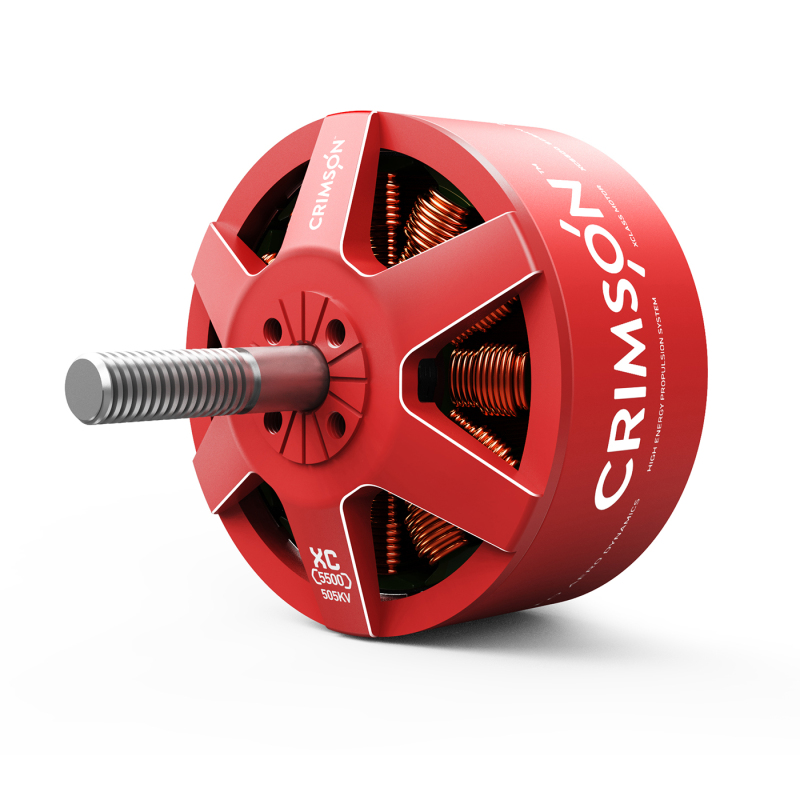

XC5500 CRIMSON brushless motor

SKU: 0101DJ0003
XC5500 and XC5000 motors are designed for the fastest high-end X-class drones, i.e.: 800-1200mm multi-rotor aircraft, VTOL aircraft and agricultural copters (2-3kg load per rotor).
1.Weighs 324g with 3pcs durable bearings.
2. Maximum thrust 6.1kg.
$0.00 $92.90
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    505kv
    635kv
    Please select the information you wantX
Quantity
-
+
Download
  • XC5500 CRIMSON brushless motor
  • XC5500 CRIMSON brushless motor
  • XC5500 CRIMSON brushless motor
  • XC5500 CRIMSON brushless motor
  • XC5500 CRIMSON brushless motor
  • Description
  • 505KV
  • 635KV

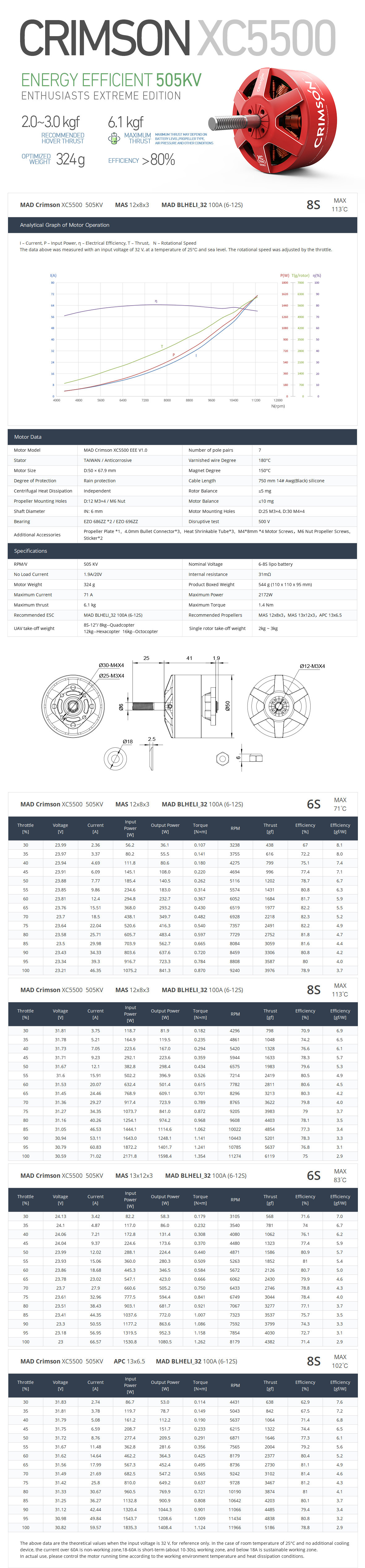

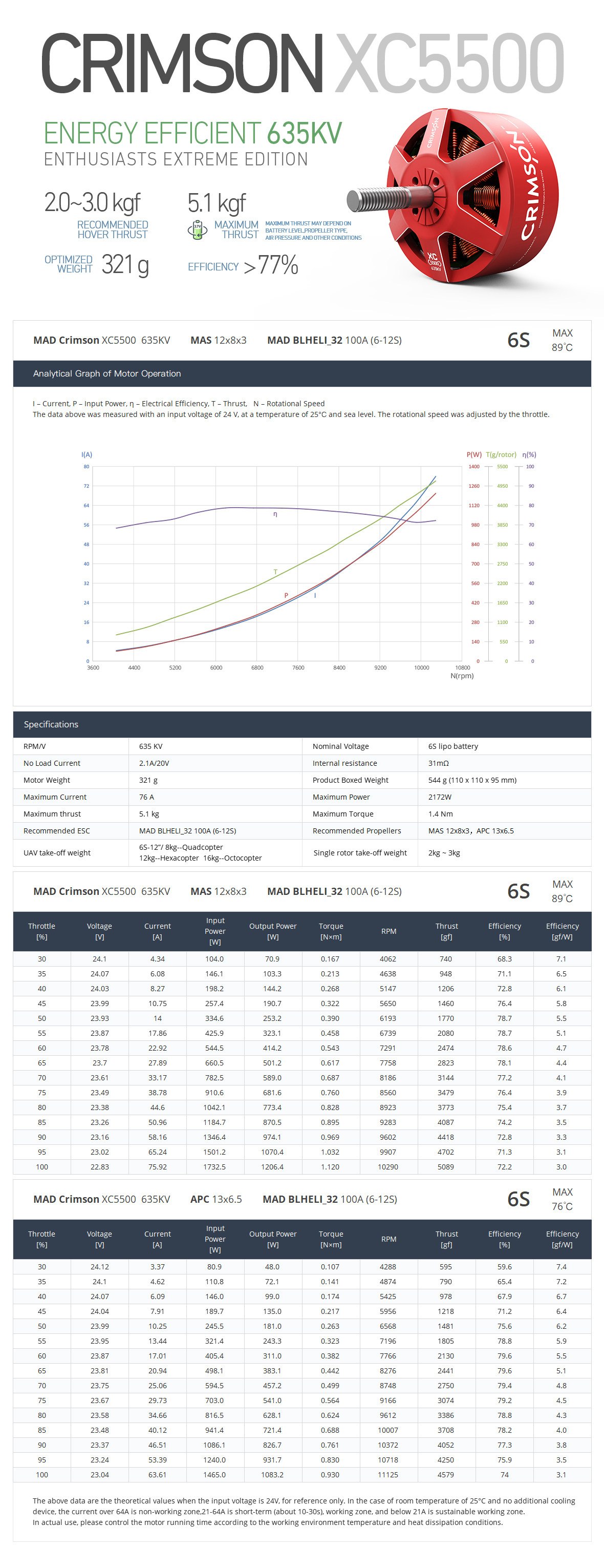

Motor Data

Motor Model MAD Crimson XC5500 V1.0 Number of pole pairs 7
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:50 × 67.9 mm Motor Balance 150°C
Degree of Protection Rain protection Cable Length 750 mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation Independent Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4 / M6 Nut Motor Balance ≤10 mg
Shaft Diameter IN: 6 mm Motor Mounting Holes D:25 M3×4, D:30 M4×4
Bearing 686ZZ *2 / 696ZZ Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
