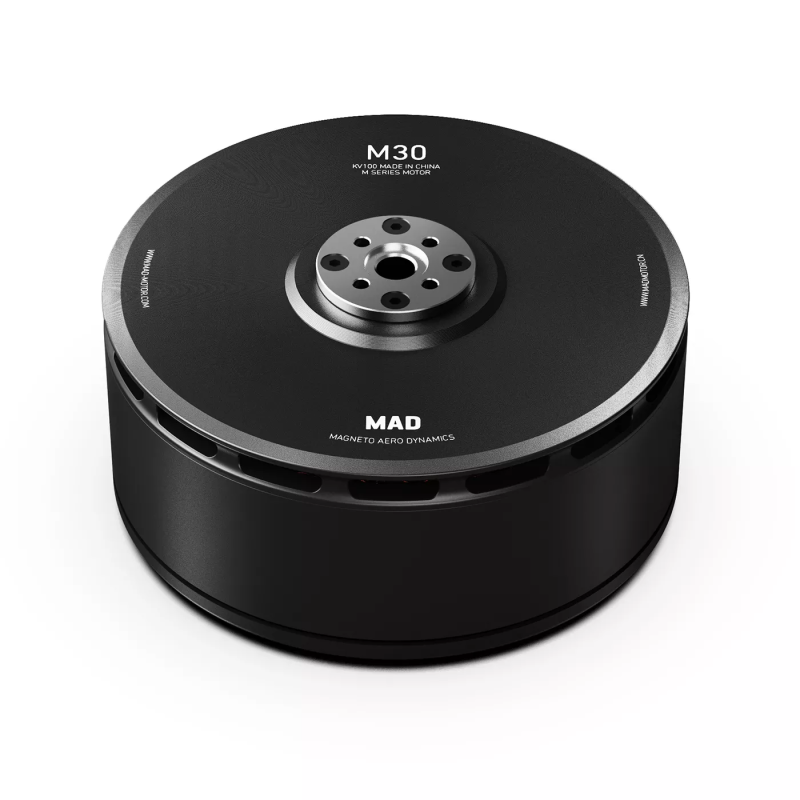

M30 Pro IPE brushless drone motor

SKU: 0101DJ0047
1.12S Voltage
2. Recommend: continue thrust:12-15kgf
3.ESCAMPX ESC 200a 5-14s ,AMPX ESC 300a (5-14s)
4.Propeller: 40x13.1 inch carbon fiber prop,fluxer vtol 40.1x16 inch propeller
$0.00 $689.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    80KV
    100KV
    Please select the information you wantX
Quantity
-
+
  • MAD M30 IPE Pro brushless drone motor for heavy lift industrial delivery UAV aircraft Personal Aerial Vehicle (PAV)
  • MAD M30 IPE Pro brushless drone motor for heavy lift industrial delivery UAV aircraft Personal Aerial Vehicle (PAV)
  • MAD M30 IPE Pro brushless drone motor for heavy lift industrial delivery UAV aircraft Personal Aerial Vehicle (PAV)
  • MAD M30 IPE Pro brushless drone motor for heavy lift industrial delivery UAV aircraft Personal Aerial Vehicle (PAV)
  • MAD M30 IPE Pro brushless drone motor for heavy lift industrial delivery UAV aircraft Personal Aerial Vehicle (PAV)
  • Description
  • 100KV
M Series motors are the flagship motors designed specifically for large multi-rotor electric paragliders, large agricultural tethered VTOLs, UAVs. Used for aerial photography, mapping, electric paragliding, agricultural spraying, surveying or anything in between where professional industrial grade propulsion systems are required. This type of motor is made with industrial grade components.

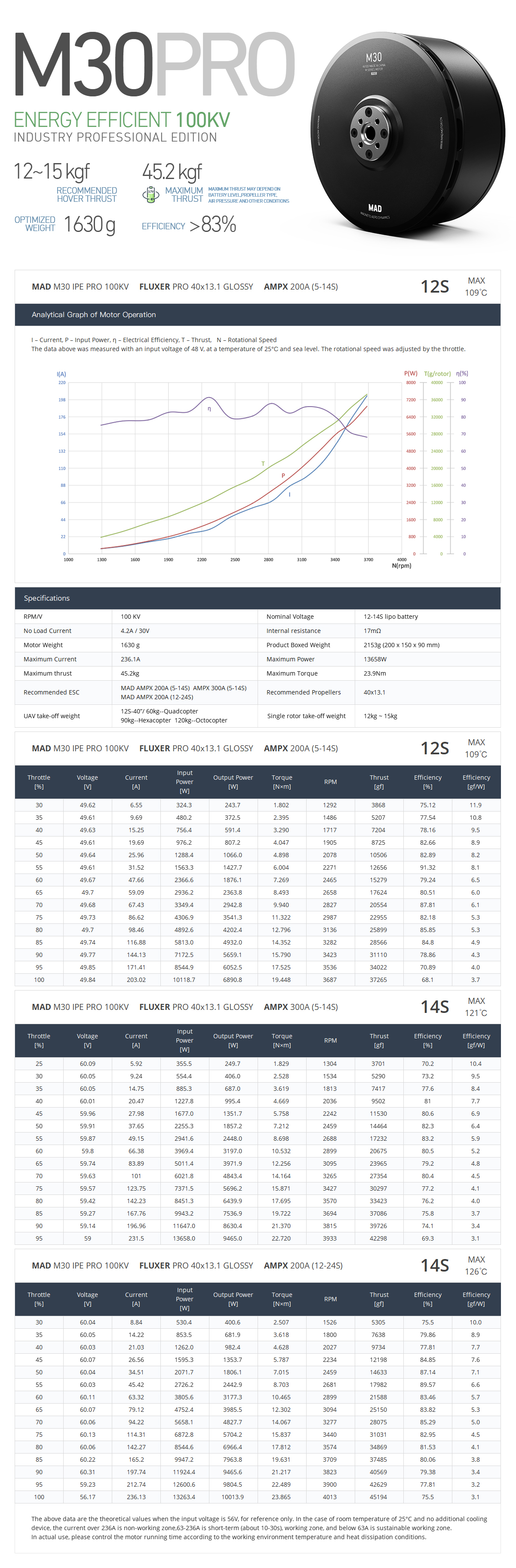

Motor Data

Motor Model MAD M30 IPE PRO V1.0 Number of pole pairs 15
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:122 × 59 mm Motor Balance 180°C
Degree of Protection IP35 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:20 M3×4 Motor Balance ≤20 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:50 M4×4
Bearing HR30202J / 3202A-2RZTN Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
