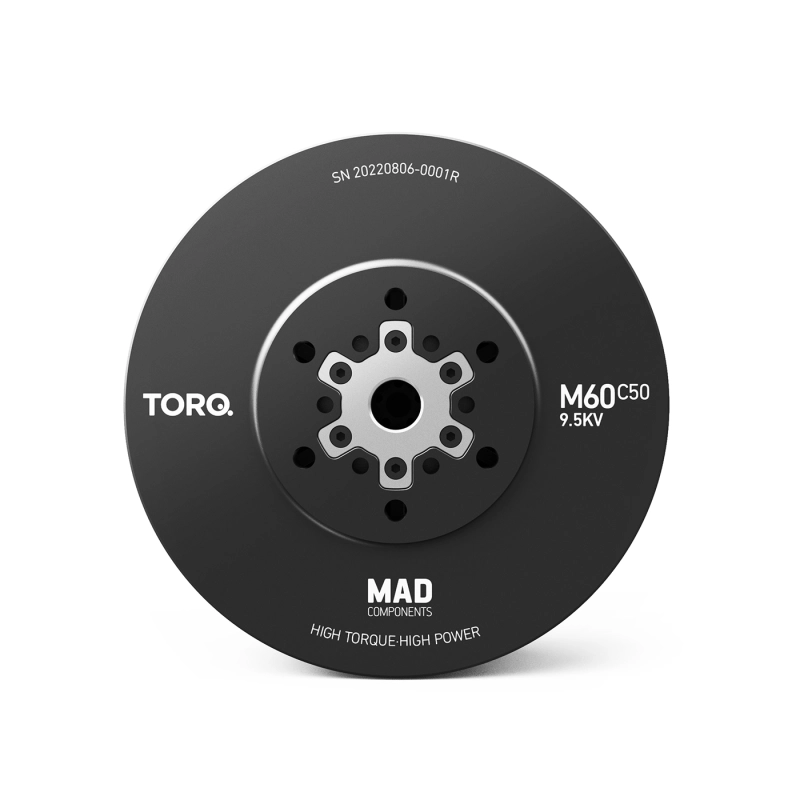

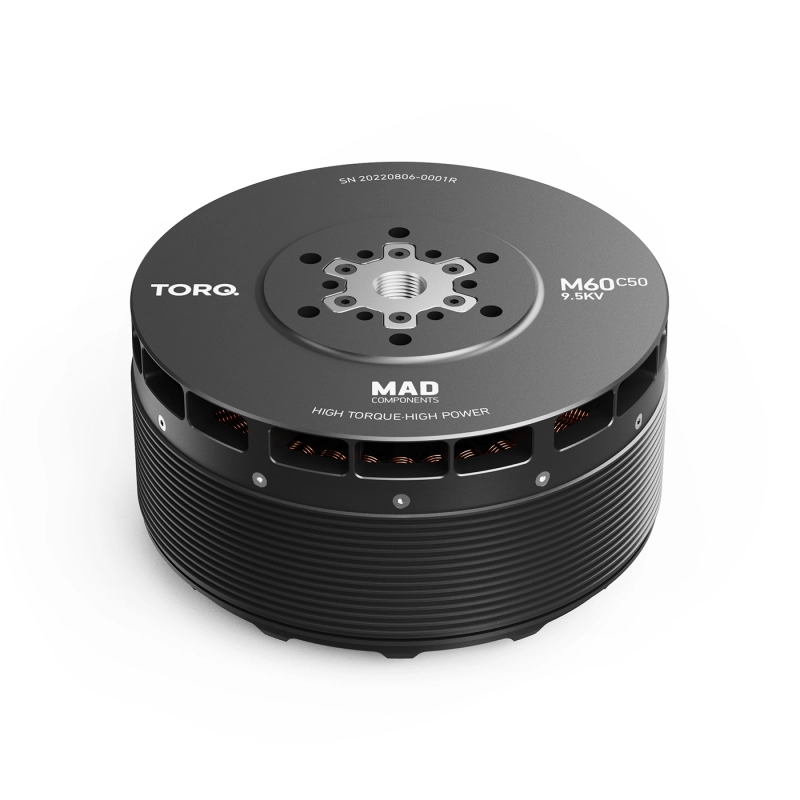

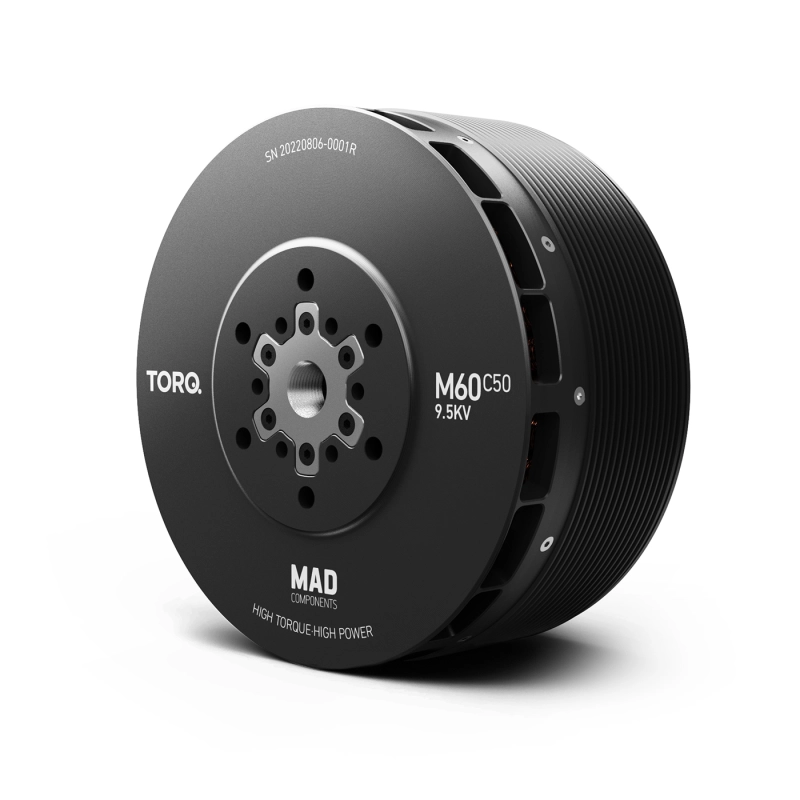

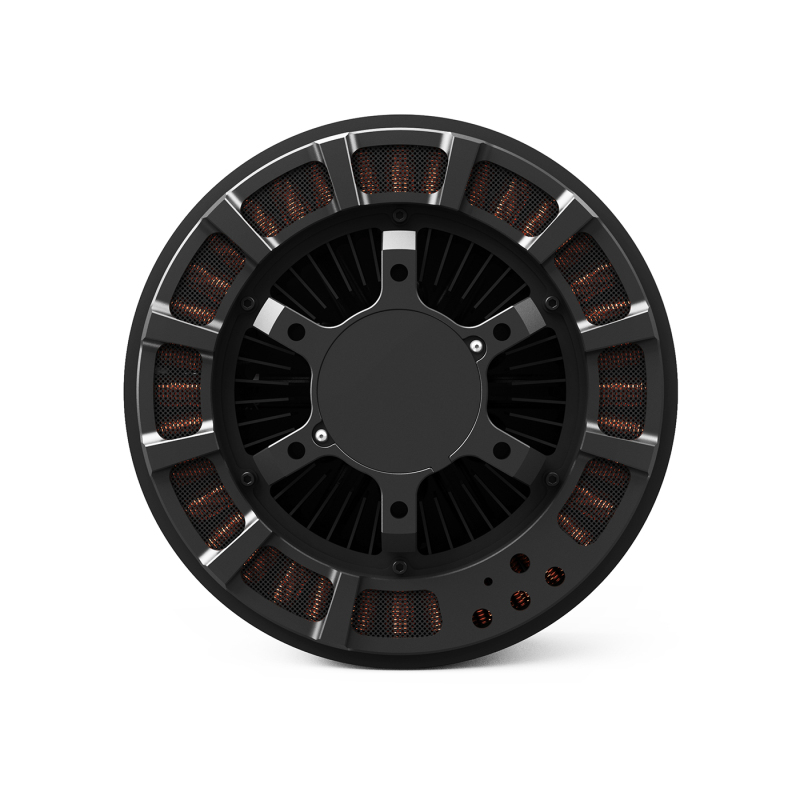

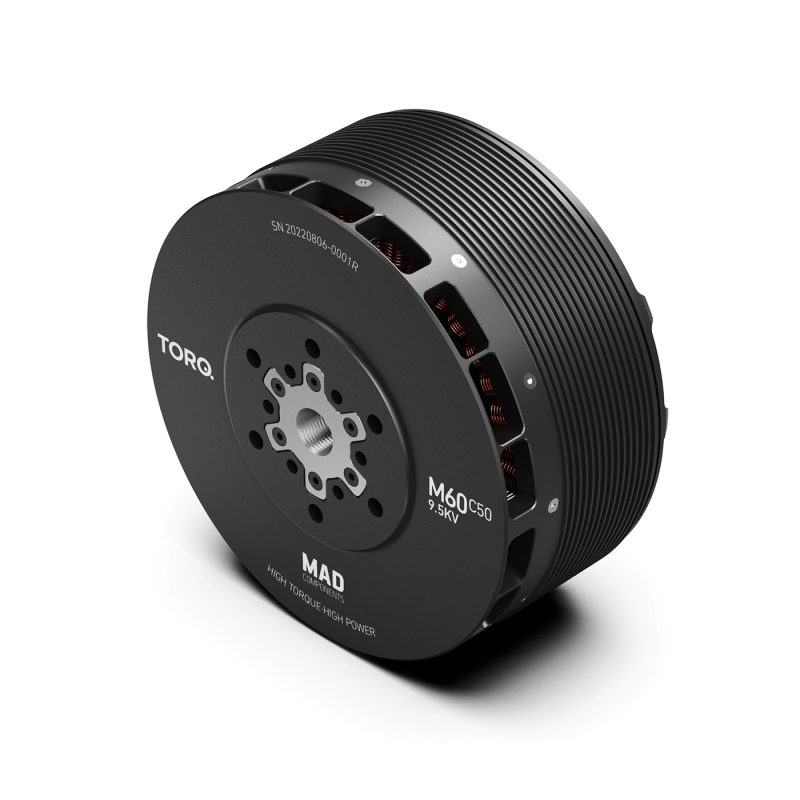

M60C50 PRO IPE drone motor

SKU: 0101DJ1910101DJ19155
  1. It has a power output of 37 kW ,80kgf continue thrust , 150kgf max thurst equivalent to 50hp.
  2. Recommended ESC and propeller:
    SineSic FOC 160A Pro 400V , 63x22-inch propeller
$0.00 $3,150.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    9.5KV
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • MAD M60C50 PRO IPE
  • MAD M60C50 PRO IPE
  • MAD M60C50 PRO IPE
  • MAD M60C50 PRO IPE
  • MAD M60C50 PRO IPE
  • Description
  • 9.5KV

Motor Data
Motor Model MAD M60C50 IPE V1.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D: 196.8 X 110 mm Magnet Degree 180°C
Degree of Protection IP45 Cable Length 150 mm (extended Enameled wires）
Centrifugal Heat Dissipation YES Rotor Balance ≤20 mg
Propeller Mounting Holes D:75 M8×6  D:50 M6*6 Motor Balance ≤30 mg
Shaft Diameter IN: 25 mm Motor Mounting Holes D:80 M6×6
Bearing NSK 6205 ZZ *2 Disruptive test 1500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
