Home > FPV ESC > MAD PULSAR BL-S 6S 60A 4IN1 ESC

1/1

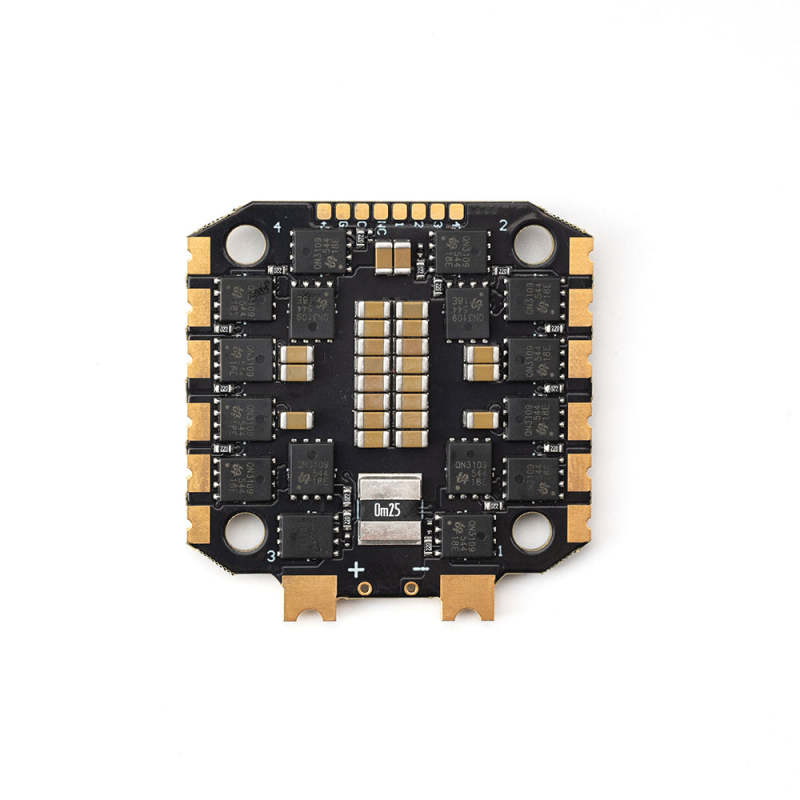

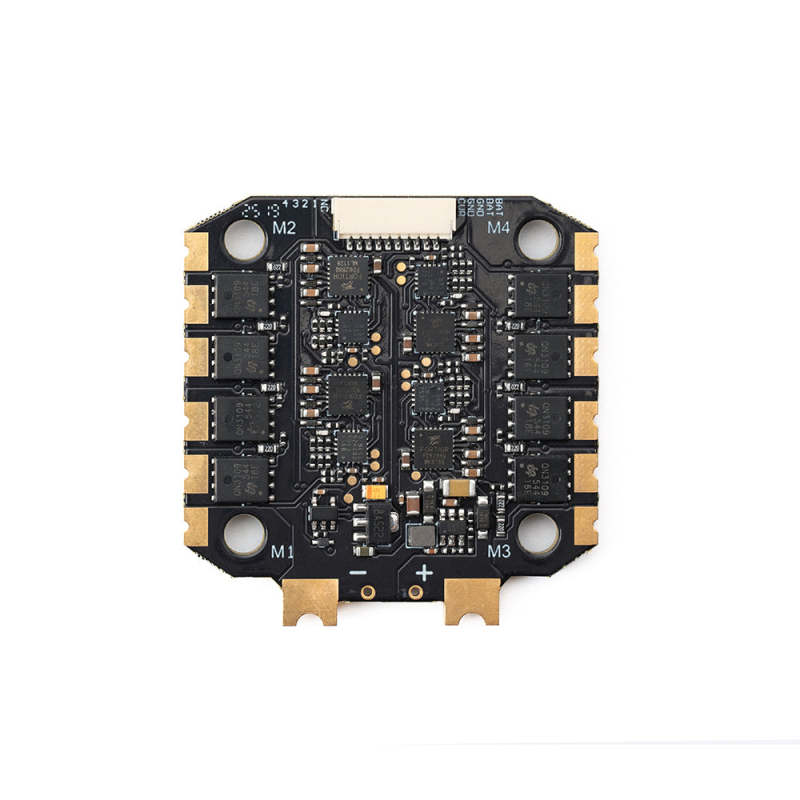

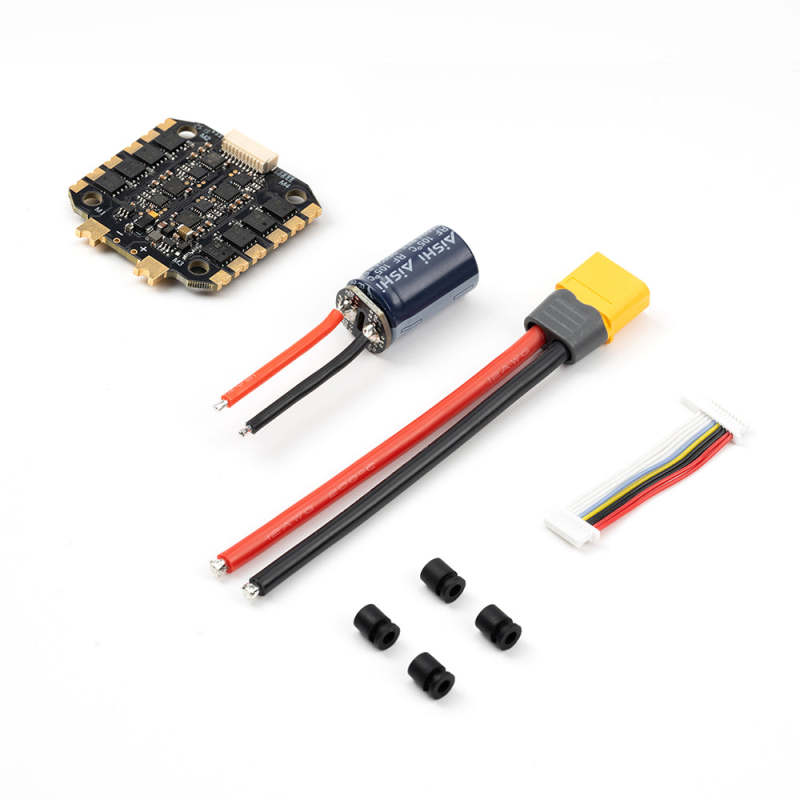

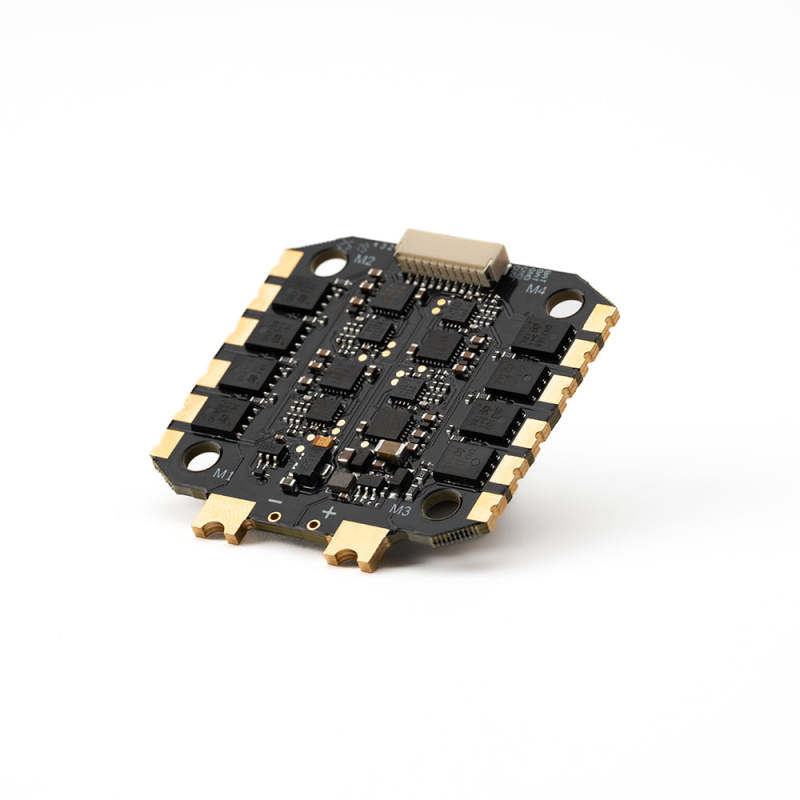

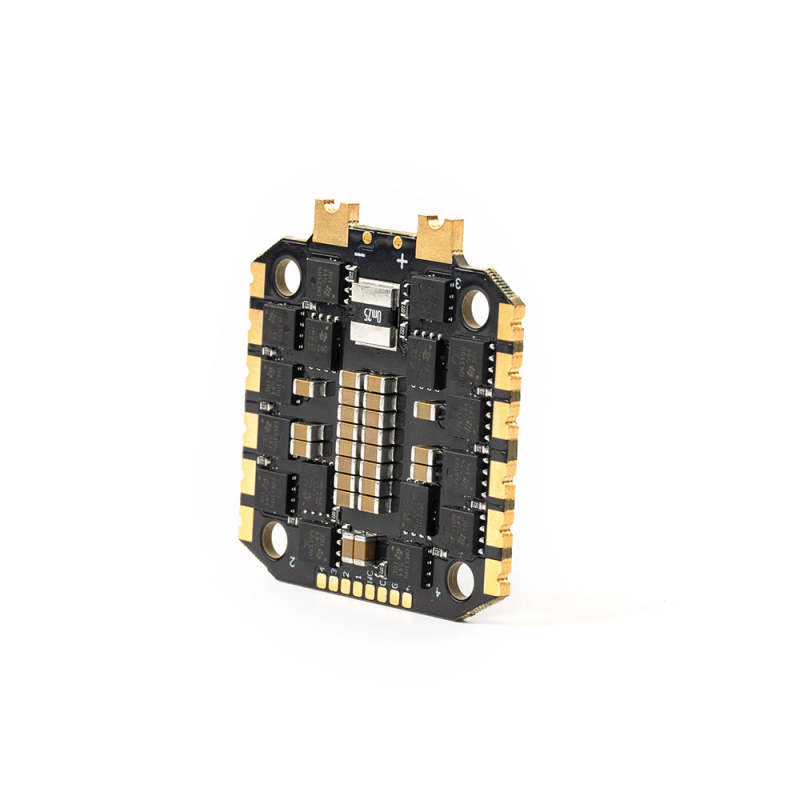

MAD PULSAR BL-S 6S 60A 4IN1 ESC

SKU: 0102DT0508

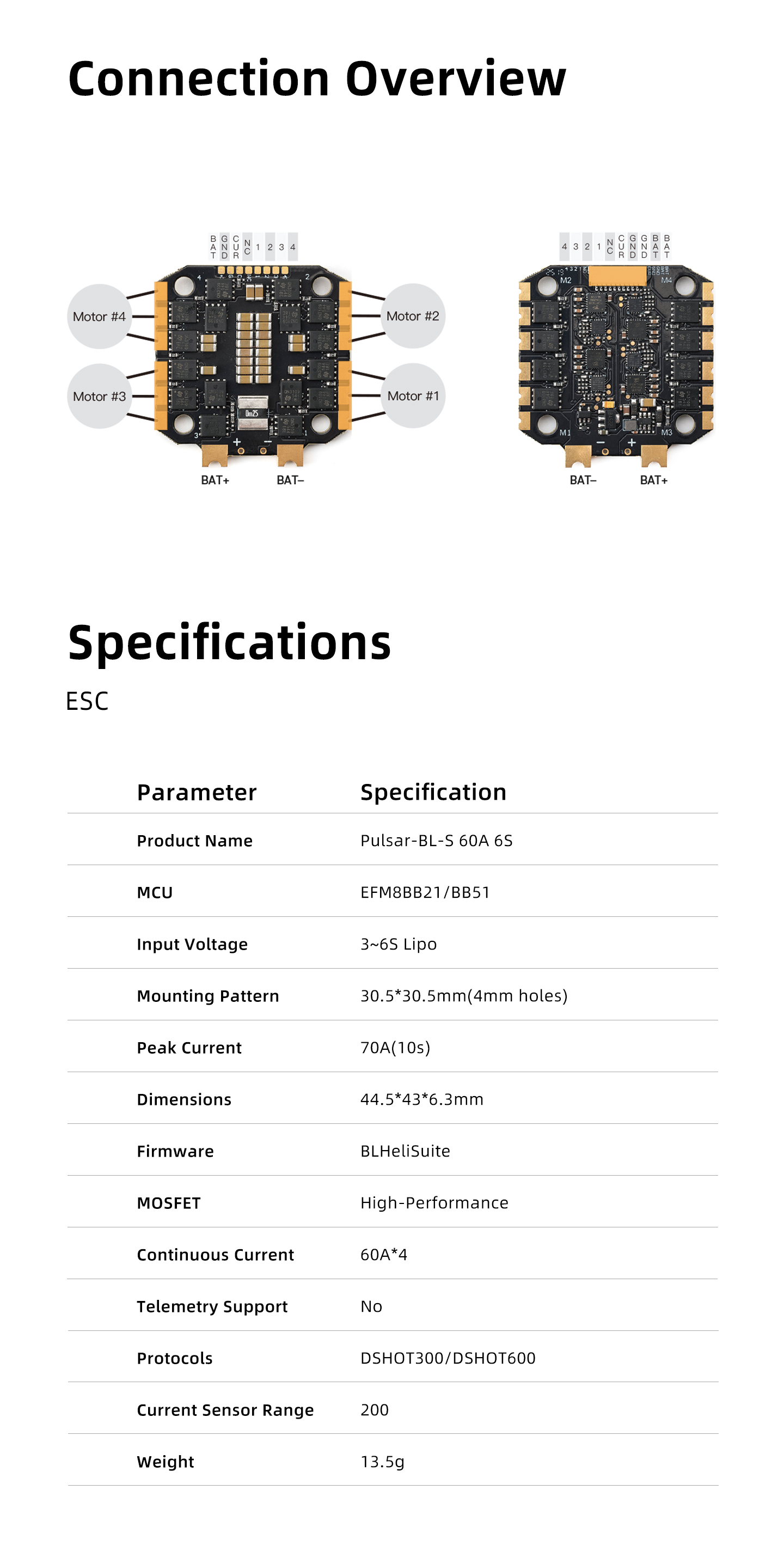

Continuous Current:	60Ax4
Peak Current:	70A(10S)
MCU:	EFM8BB21/BB51
Voltage Support:	3~6S Lipo
Mounting Hole:	30.5x30.5mm(4mm holes)
FC Plug:	14-Pin Plug-and-Play Port

$55.00

Received successfully

Coupon Code

Description
FAQ

The continuous current of the 4-in-1 ESC is the operating current under forced air cooling, provided that forced air cooling is used to keep the overall temperature below 90 degrees. FPV series aircraft come with built-in forced air cooling and can use this during high-speed flight. However, long-endurance aircraft typically use low KV motors without forced air cooling, so they cannot be used.
