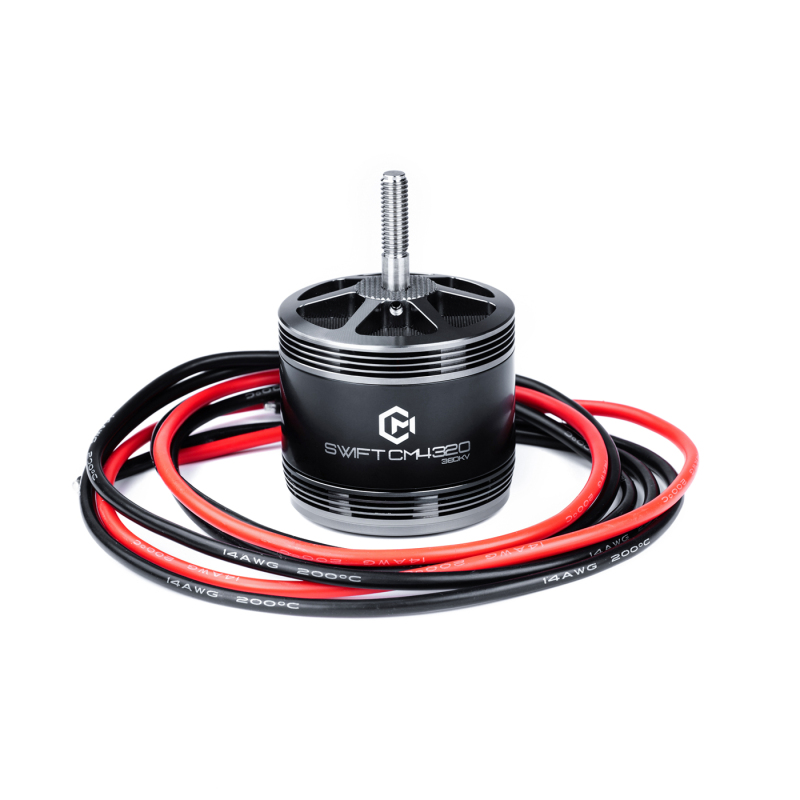

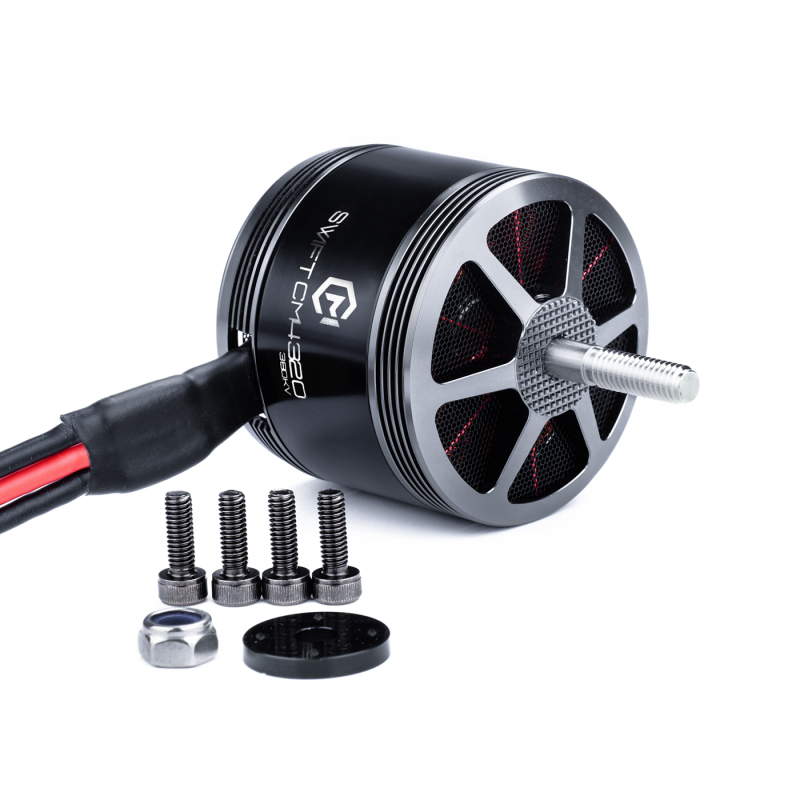

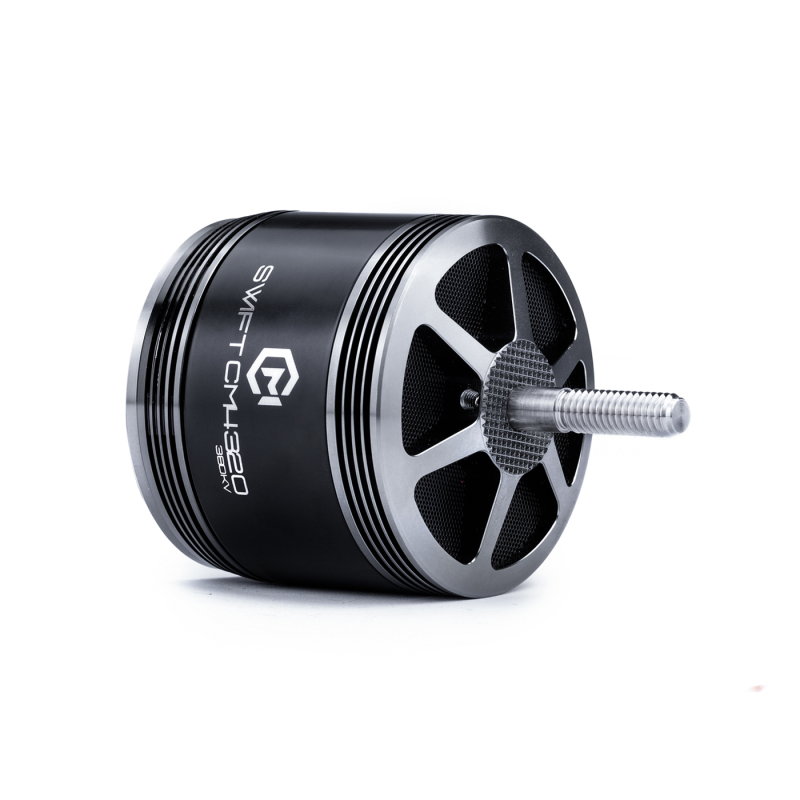

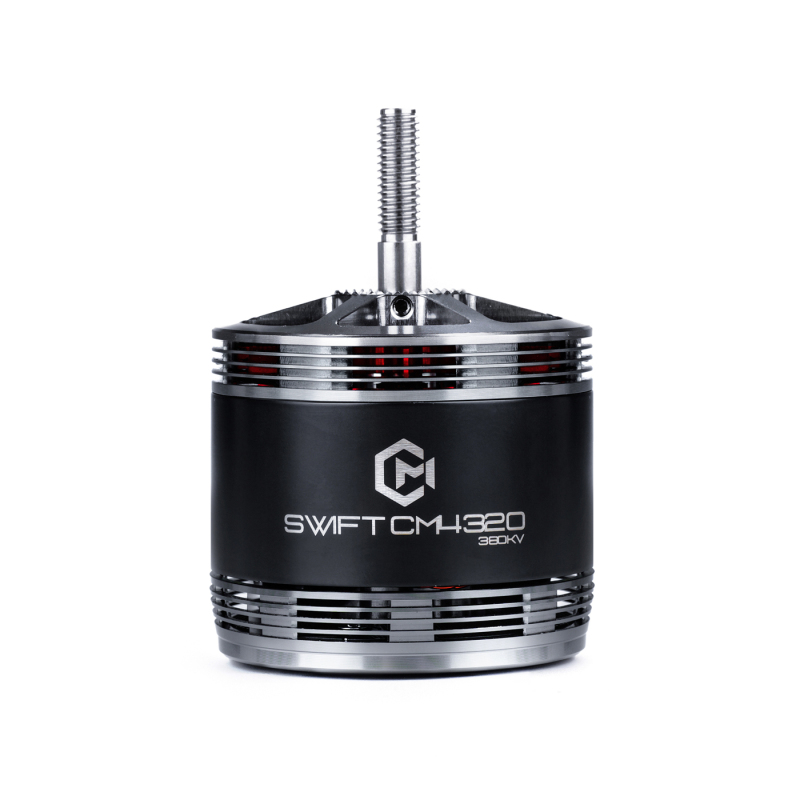

CM 4320 SWIFT FPV Drone motor

SKU: 0202XQ0893

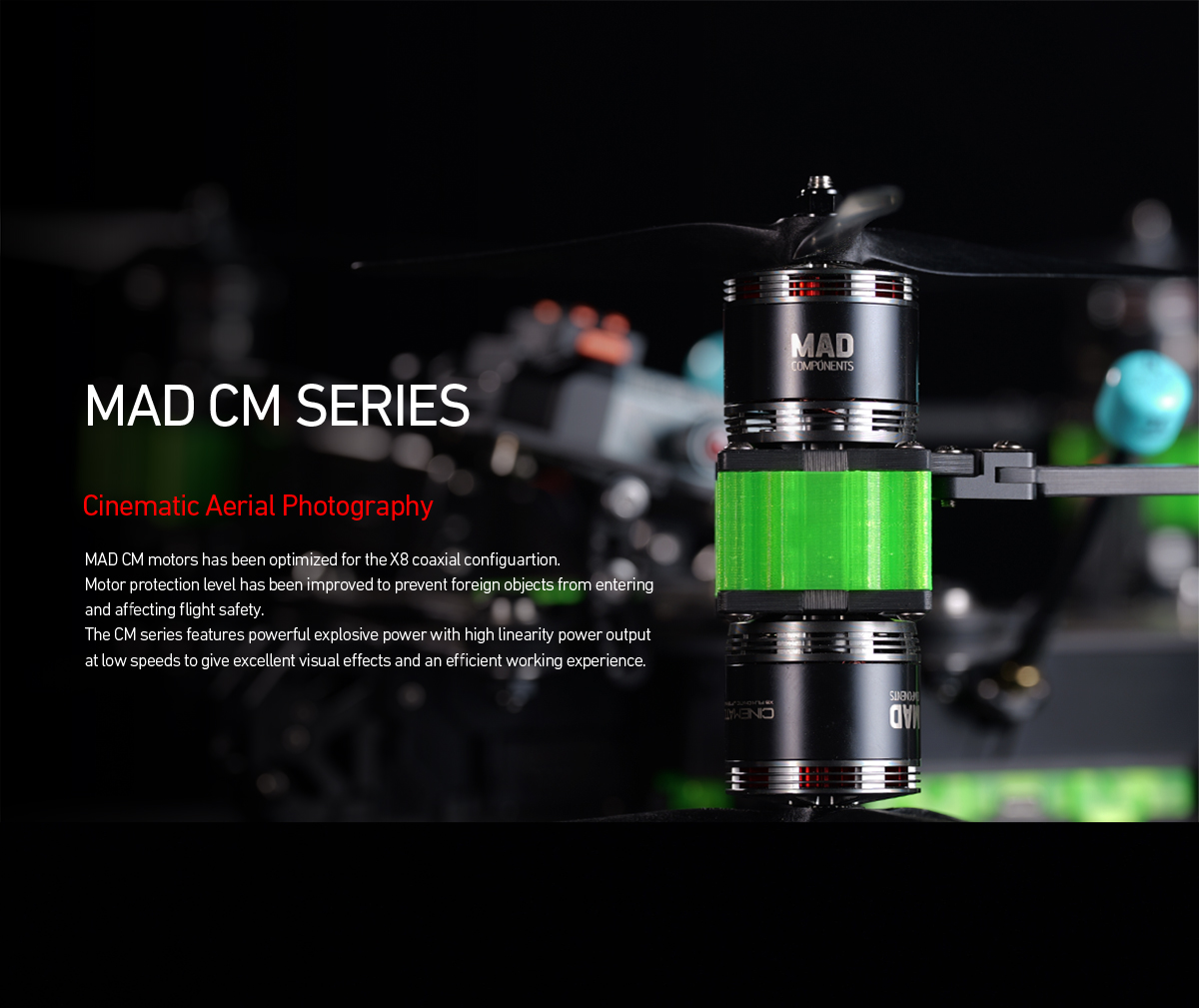

The CM Series is the highest dust level motor and the best heat dissipation among FPV motors, specially designed for film shooting work.

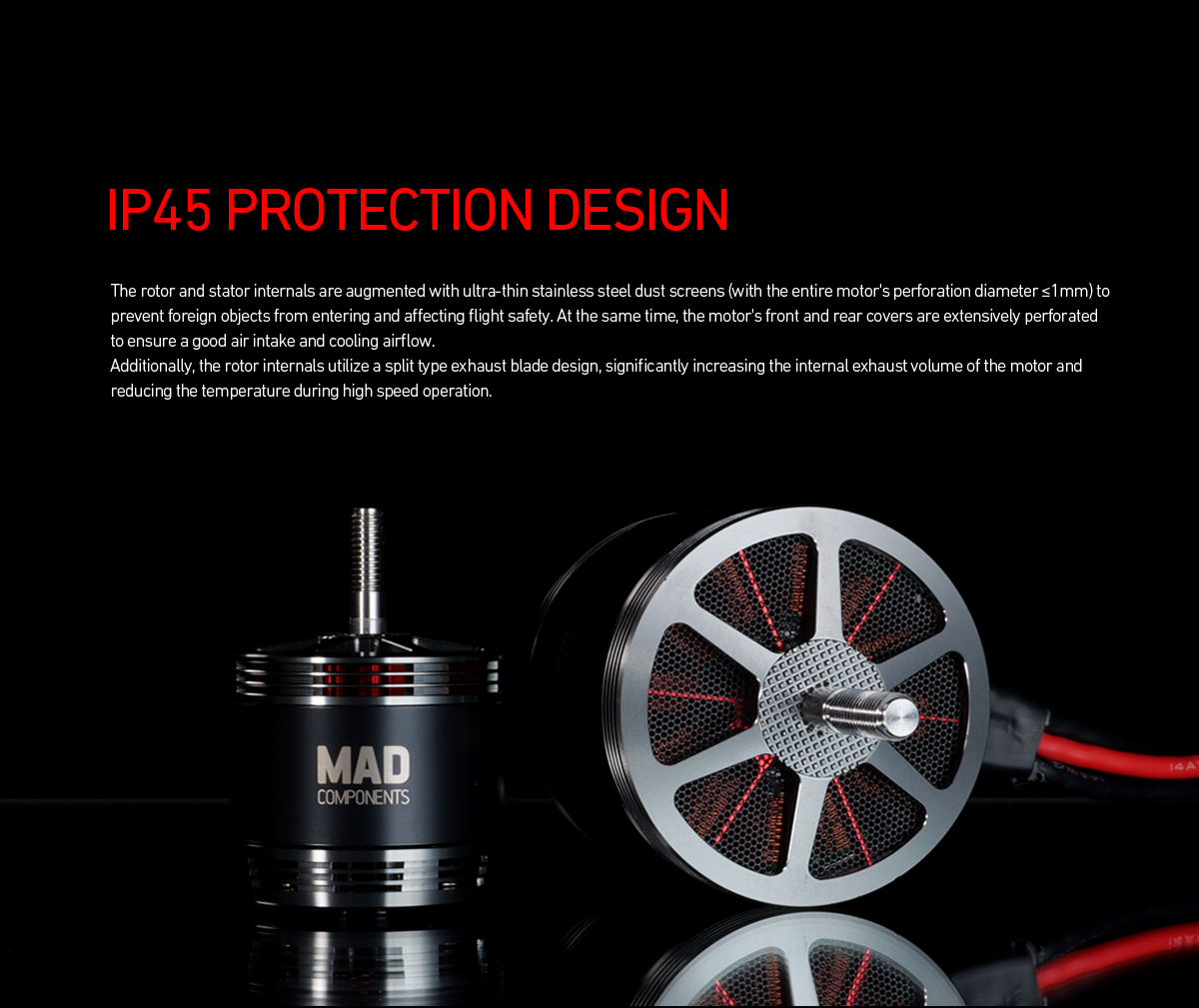

1.Two ultra-thin stainless steel dust filters are added inside the stator for proactive heat dissipation design.

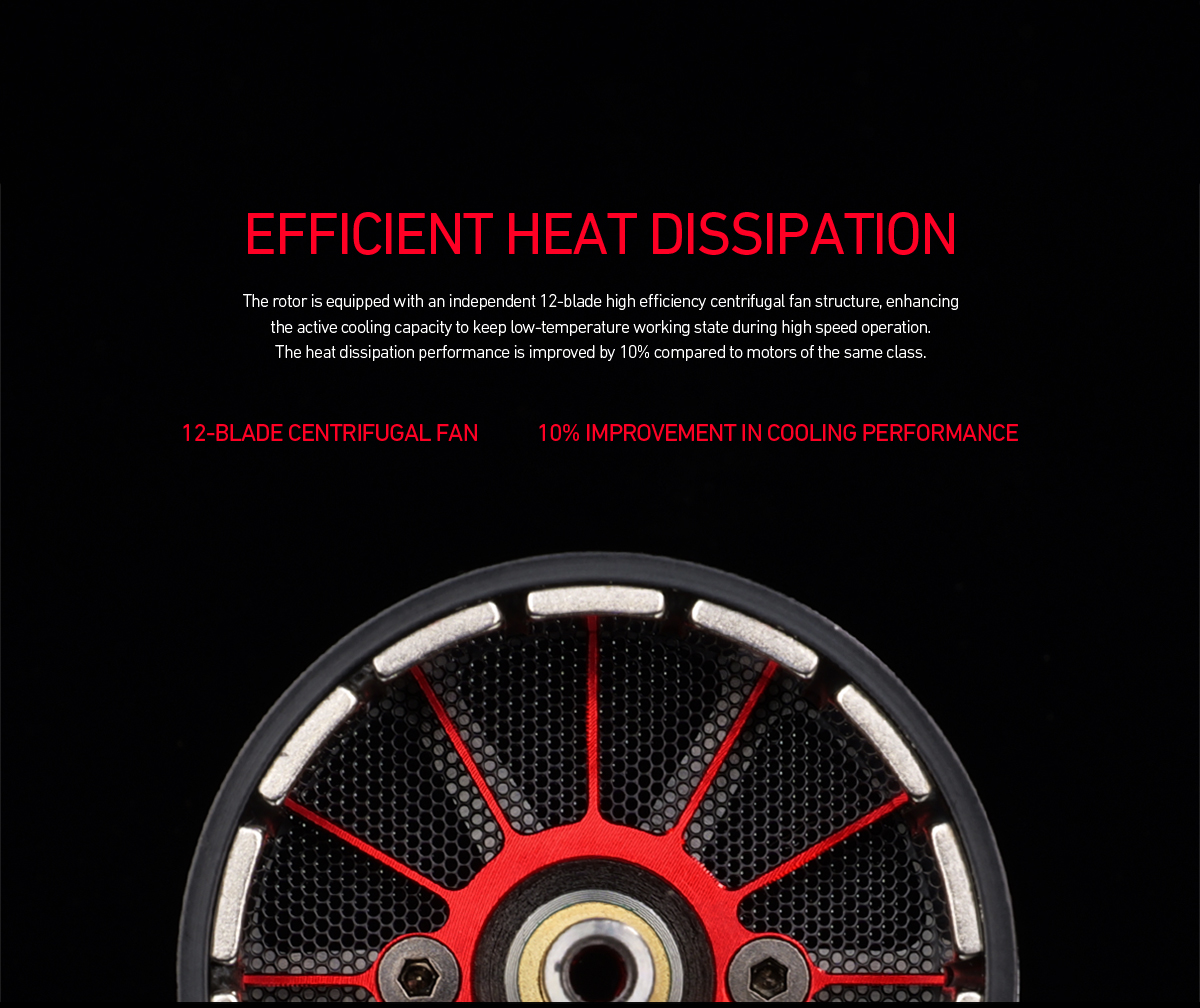

2.The split exhaust blade is added inside the rotor.

3.Providing robust power for 3-12S, 13X10X3 inch propeller  X4 X8 cinematic drones with heavy payloads

$0.00 $84.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV OPTION:
    380KV
    Please select the information you wantX
Quantity
-
+
Download
  • CM4320 SWIFT FPV drone motor
  • CM4320 SWIFT FPV drone motor
  • CM4320 SWIFT FPV drone motor
  • CM4320 SWIFT FPV drone motor
  • CM4320 SWIFT FPV drone motor
  • Description
  • 380KV

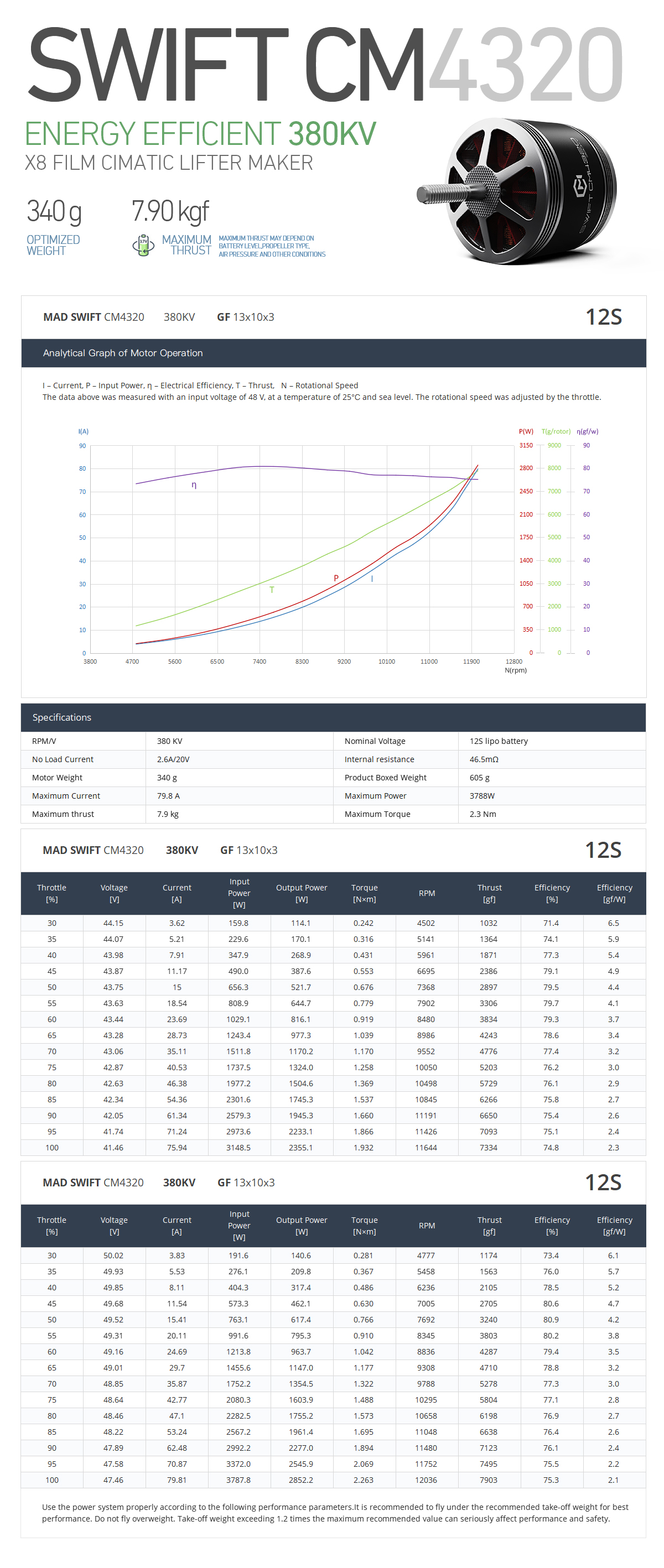

Motor Data

Motor Model MAD SWIFT CM4320 V1.0 Number of pole pairs 7
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:51 × 73.2 mm Motor Balance 180°C
Propeller Mounting Holes M6 Nut Cable Length 750 mm 14# Awg silicone

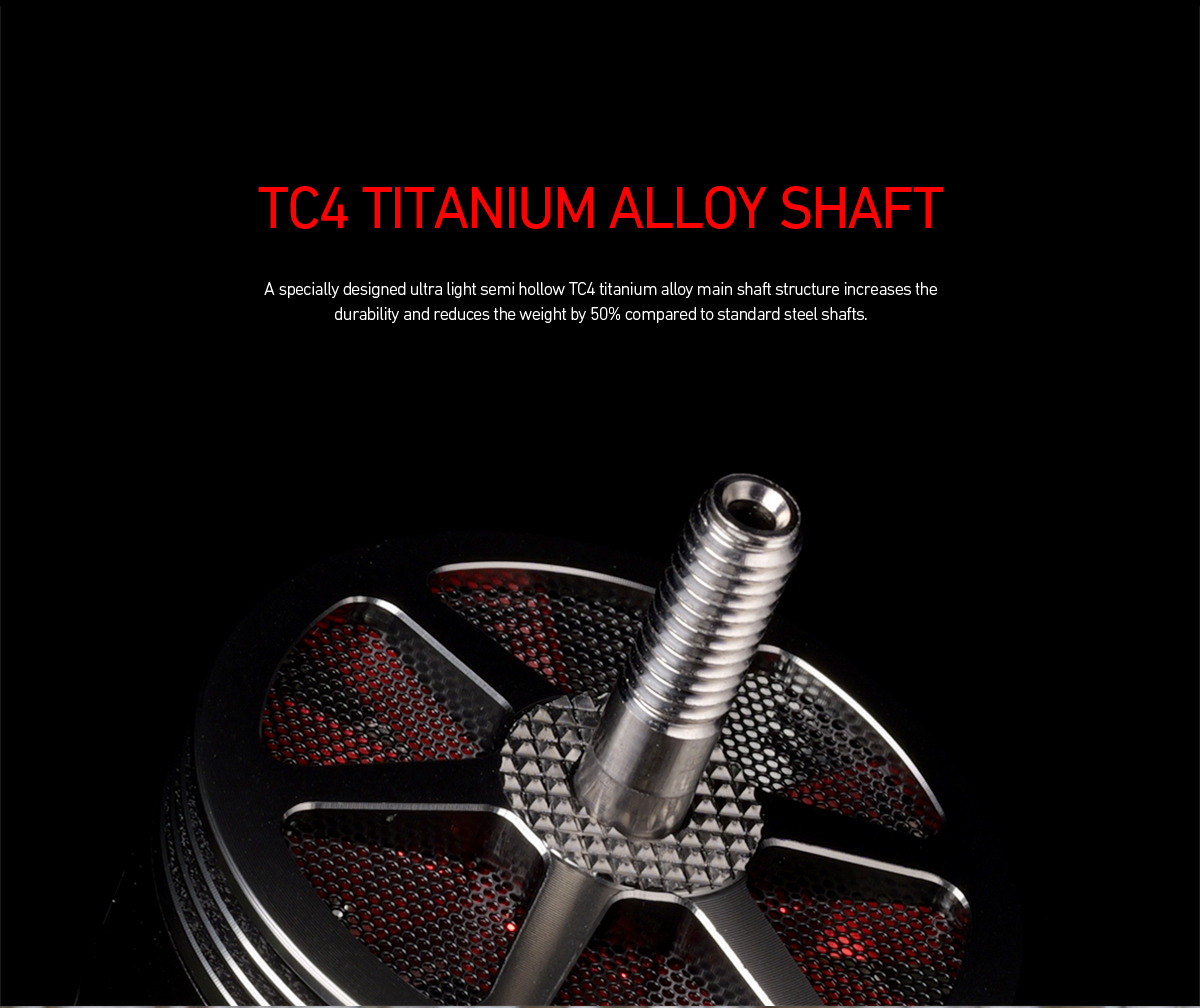

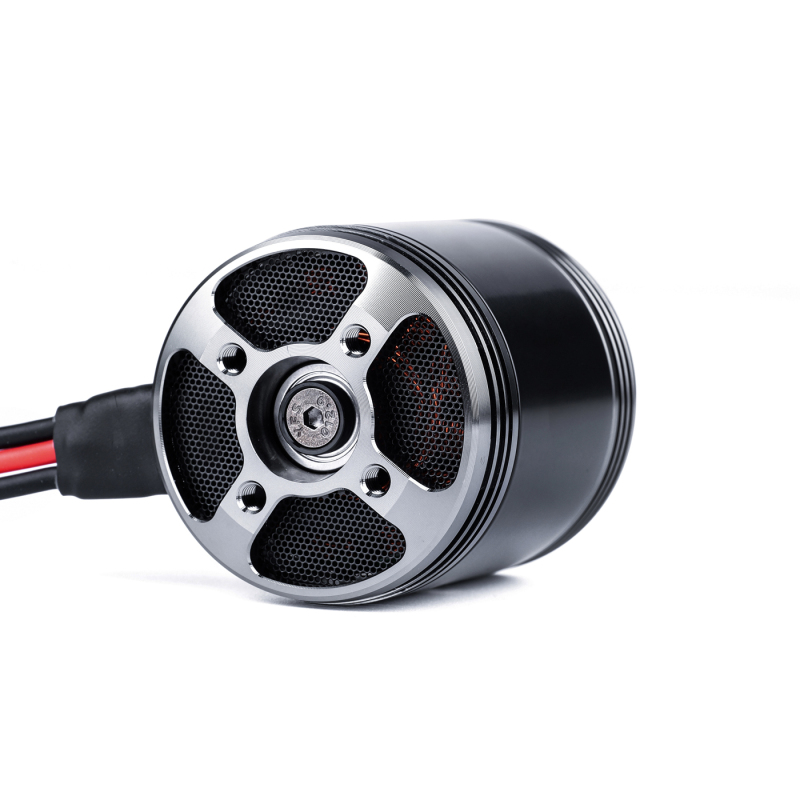

Shaft Diameter IN: 6 mm Motor Mounting Holes D:30 M4×4
Bearing 606 ZZ *3 Disruptive test 500 V

___________________________________________________________________________________________________________________________

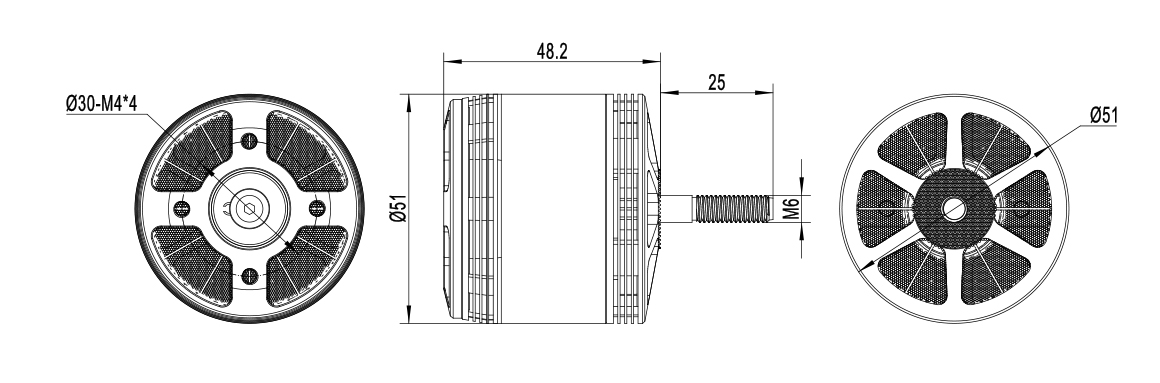

Drawing and mount holes
