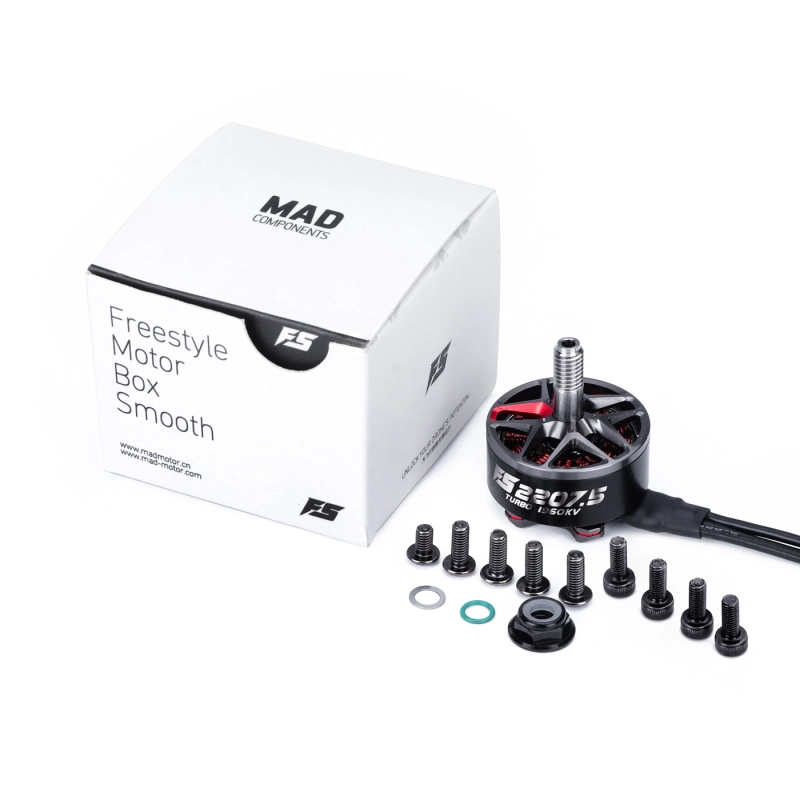

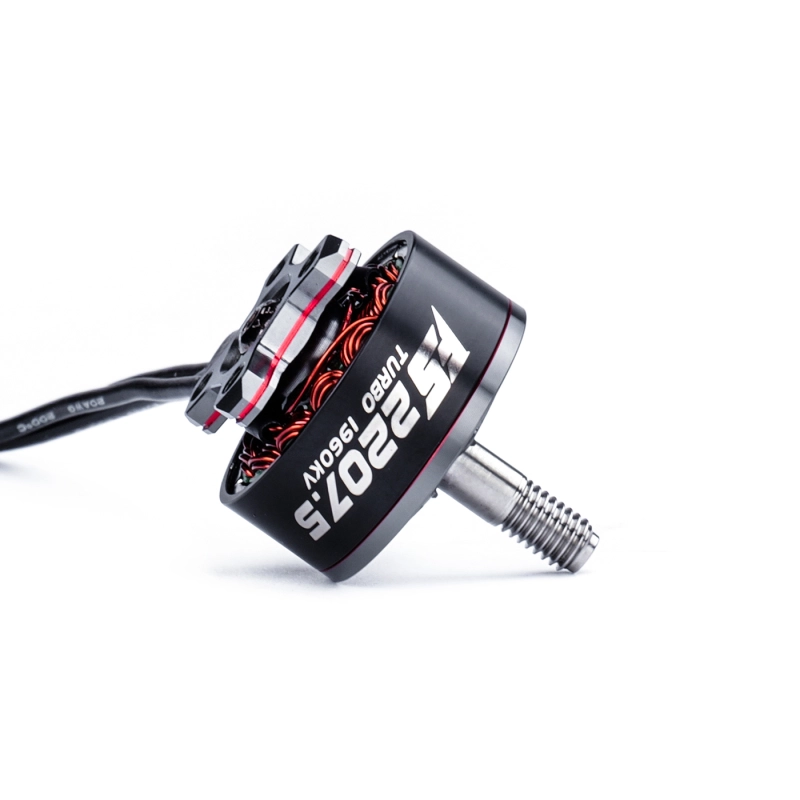

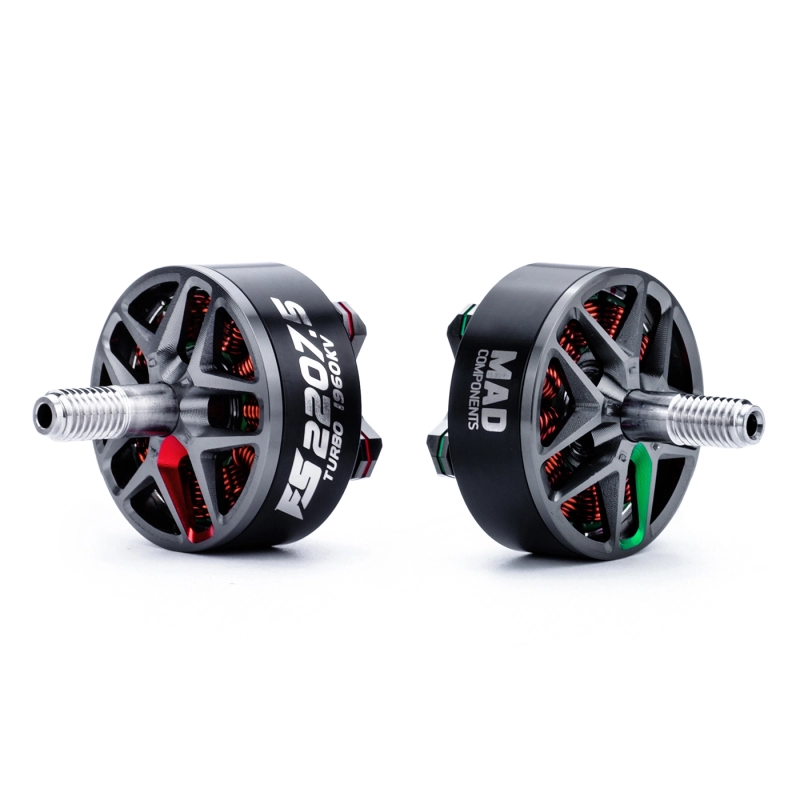

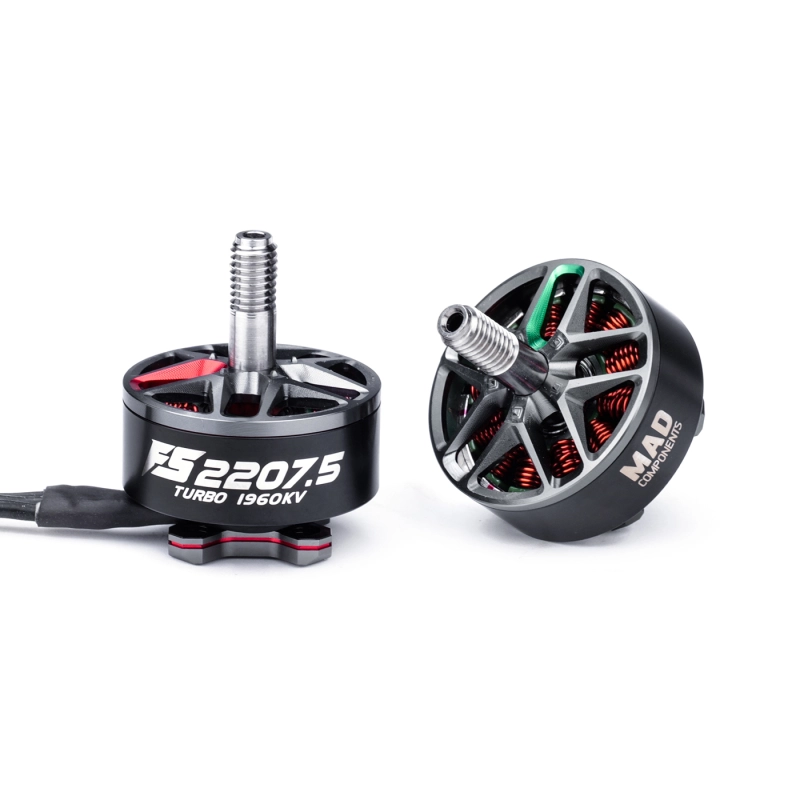

FS2207.5 Turbo Brushless motor

SKU: 0101DJ1517
The FS series of MAD FPV brushless motors is specifically designed for freestyle flying. The development process involved six months of rigorous testing, resulting in refined aesthetics and improved functionality.
The main difference between the FS and BSC series is the lightweight titanium shaft and the 0.15mm silicon steel sheet, which increases efficiency. Additionally, the product has an aesthetically pleasing appearance due to secondary anodizing.
$0.00 $18.90
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    1750KV-6S
    1960KV-6S
    2550KV-4S
  • Color:
    Red
    Green
    Please select the information you wantX
Quantity
-
+
  • MAD Turbo FS2207.5 Brushless motor for5-6inch freefly FPV drone
  • MAD Turbo FS2207.5 Brushless motor for5-6inch freefly FPV drone
  • MAD Turbo FS2207.5 Brushless motor for5-6inch freefly FPV drone
  • MAD Turbo FS2207.5 Brushless motor for5-6inch freefly FPV drone
  • MAD Turbo FS2207.5 Brushless motor for5-6inch freefly FPV drone
  • MAD Turbo FS2207.5 Brushless motor for5-6inch freefly FPV drone
  • Description
  • 1750KV-6S
  • 1960KV-6S
  • 2550KV-4S

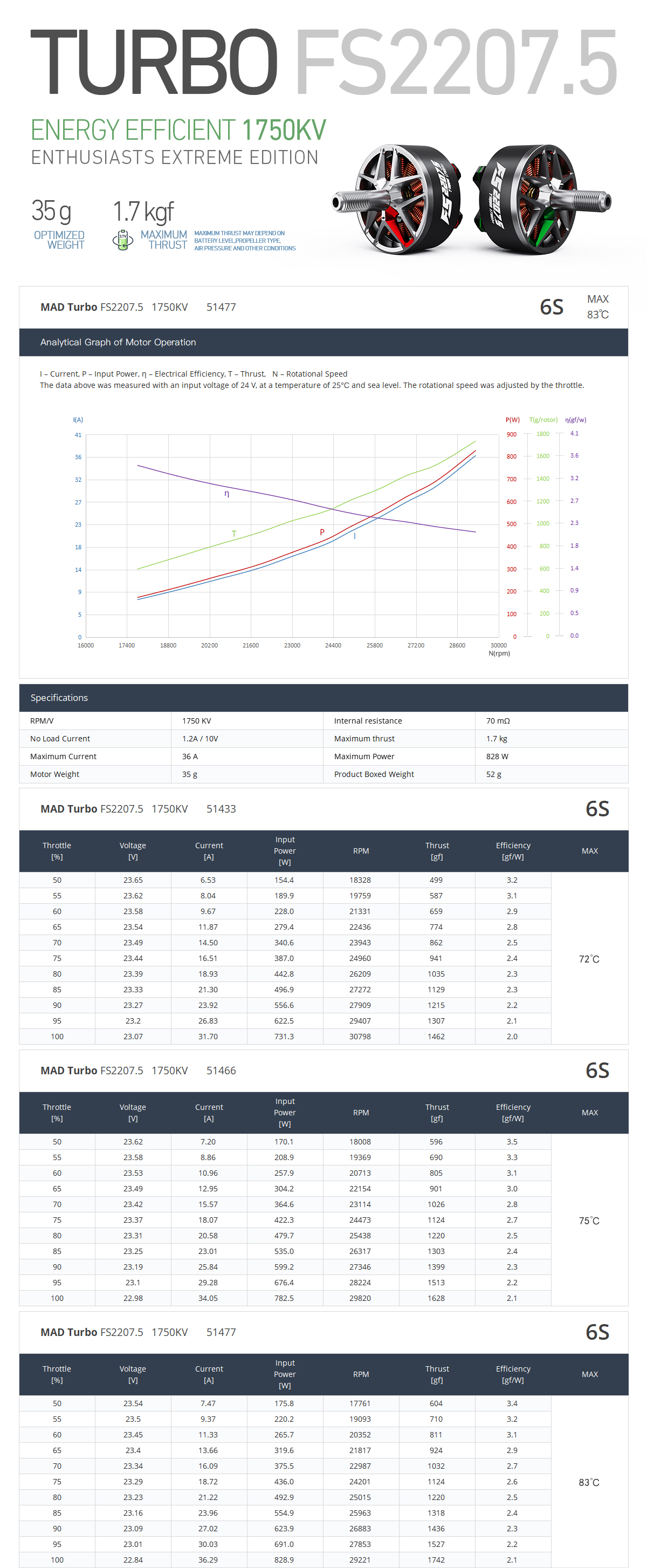

Specification


Motor Model
Turbo FS2207.5 V1.0
Number of pole pairs
7
Stator
Anticorrosive
Varnished wire Degree
180°C
Motor Size
D:27 ×33.4 mm
Magnet Degree
150°C
Degree of Protection
Rain protection Cable Length
150 mm 20# Awg(Black) silicone
Centrifugal Heat Dissipation
Independent Rotor Balance
≤5 mg
Propeller Mounting Holes
M5 Nut
Motor Balance
≤10 mg
Shaft Diameter
IN: 5 mm
Motor Mounting Holes
D:16 M3×4
Bearing 684ZZ *2
Disruptive test
500 V

___________________________________________________________________________________________________________________________


Drawing and mount holes
