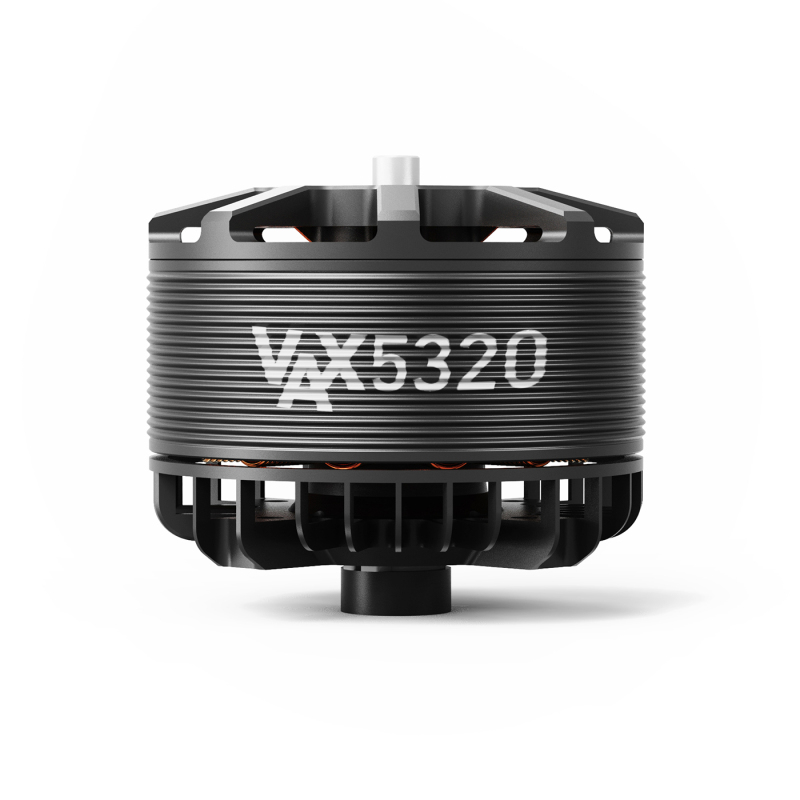

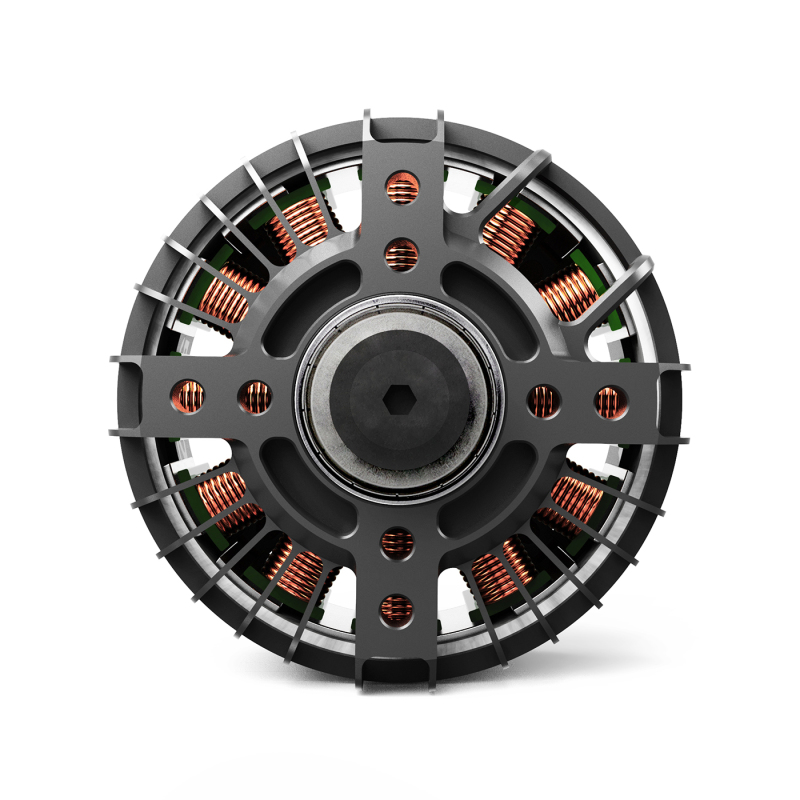

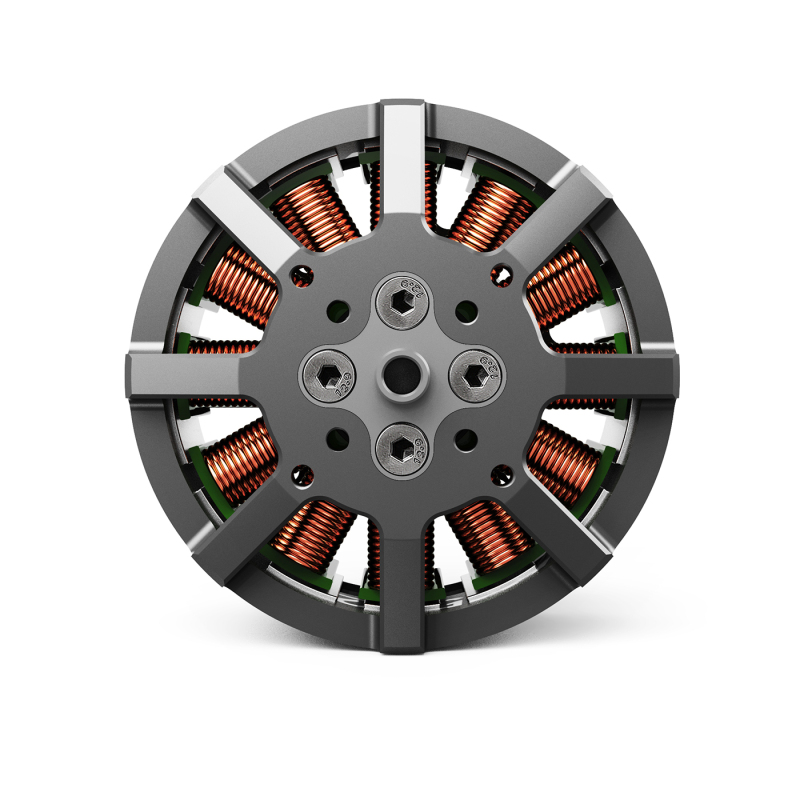

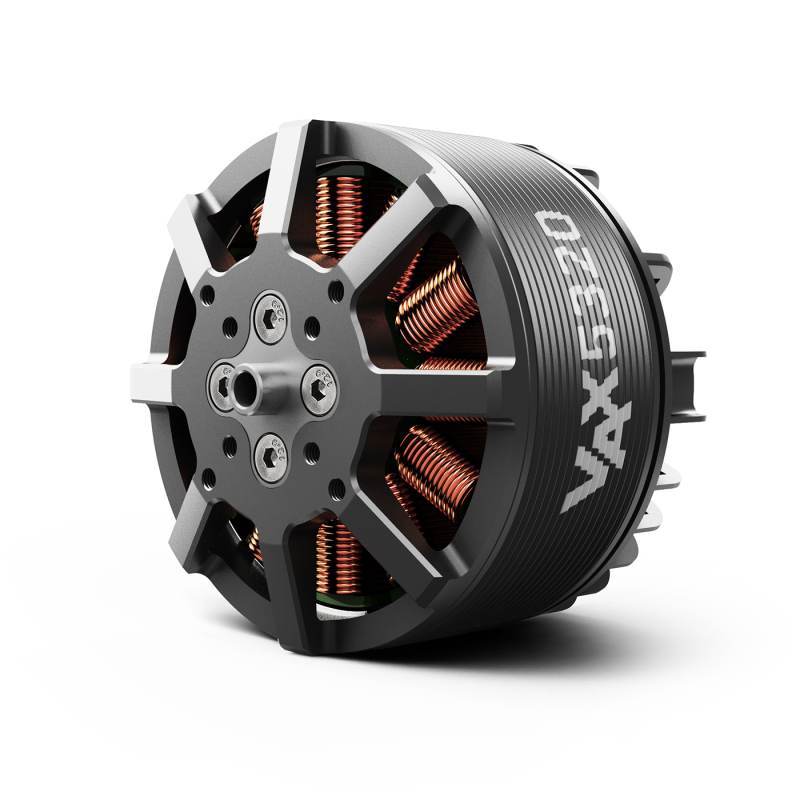

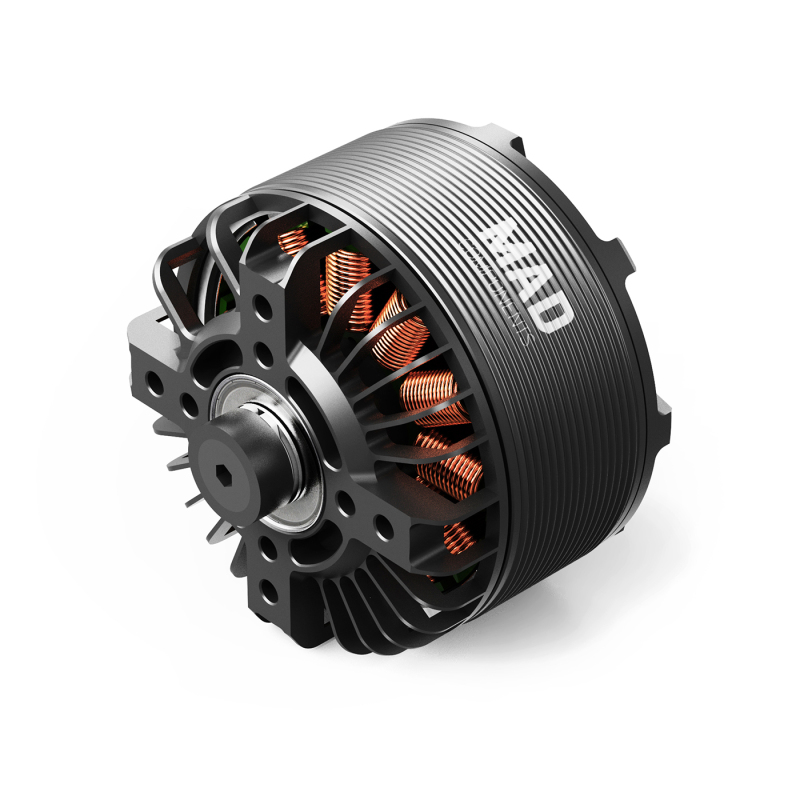

VAX 5320 (Short Shaft) V3.0 eVTOL Drone Motor

Name: VAX 5320 (Short Shaft) V3.0 eVTOL Drone Motor
Brand: MAD COMPONENTS
SKU: 0101DJ2240
Price: 149 USD
Availability: InStock

SKU: 0101DJ2240

VAX 5320 with thrust bearing is designed for EVTOL,AIRCRAFT,XCLASS to carry of 8-10 kg, supports 12S voltage. VAX 5320 is improved to get higher reliability and stability for long range flight. It also maintains the excellent properties and characteristics of the previous generation and enhances motor safety and service life that fully meets the demanding requirements of various industries.

$149.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

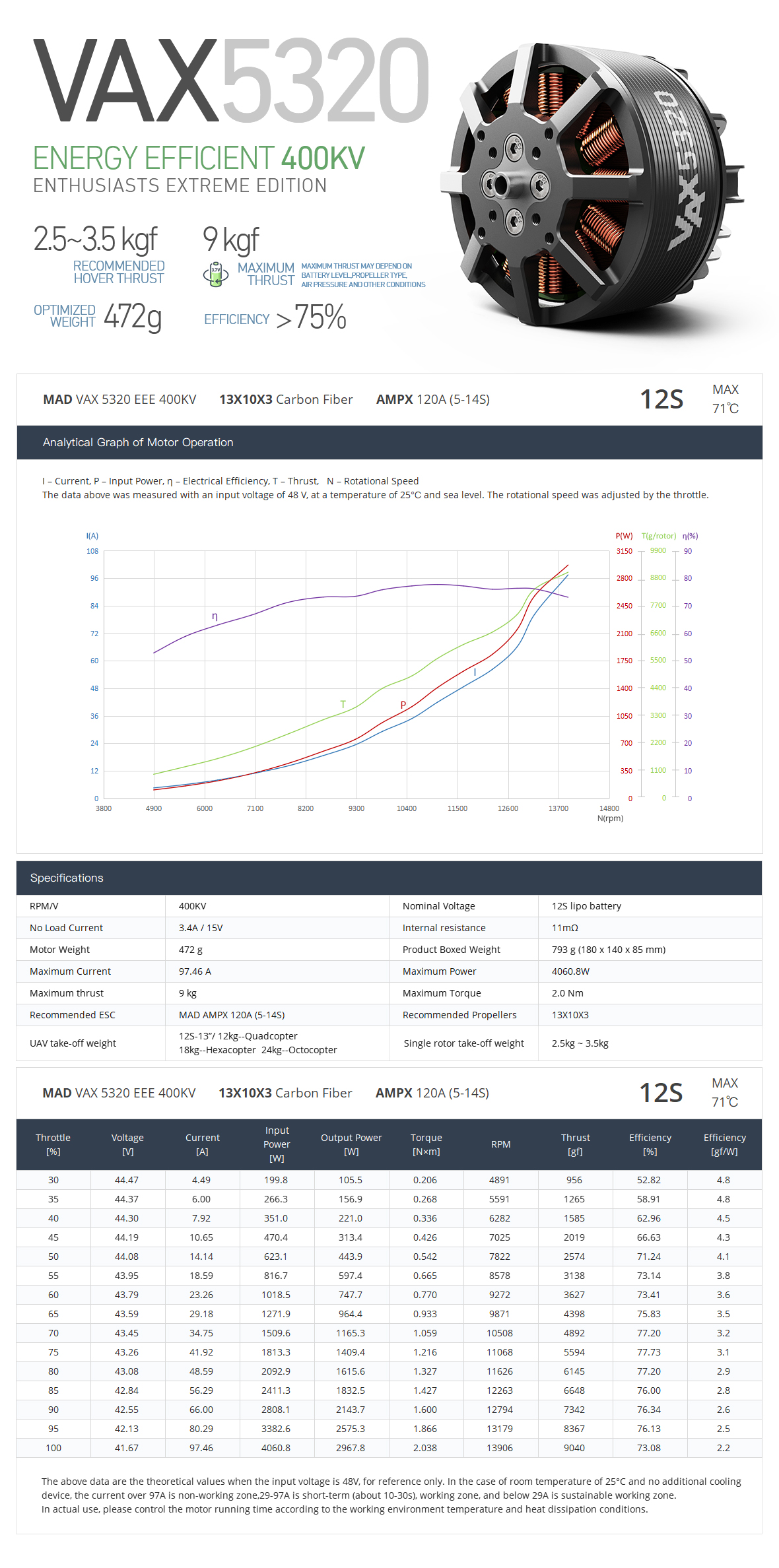

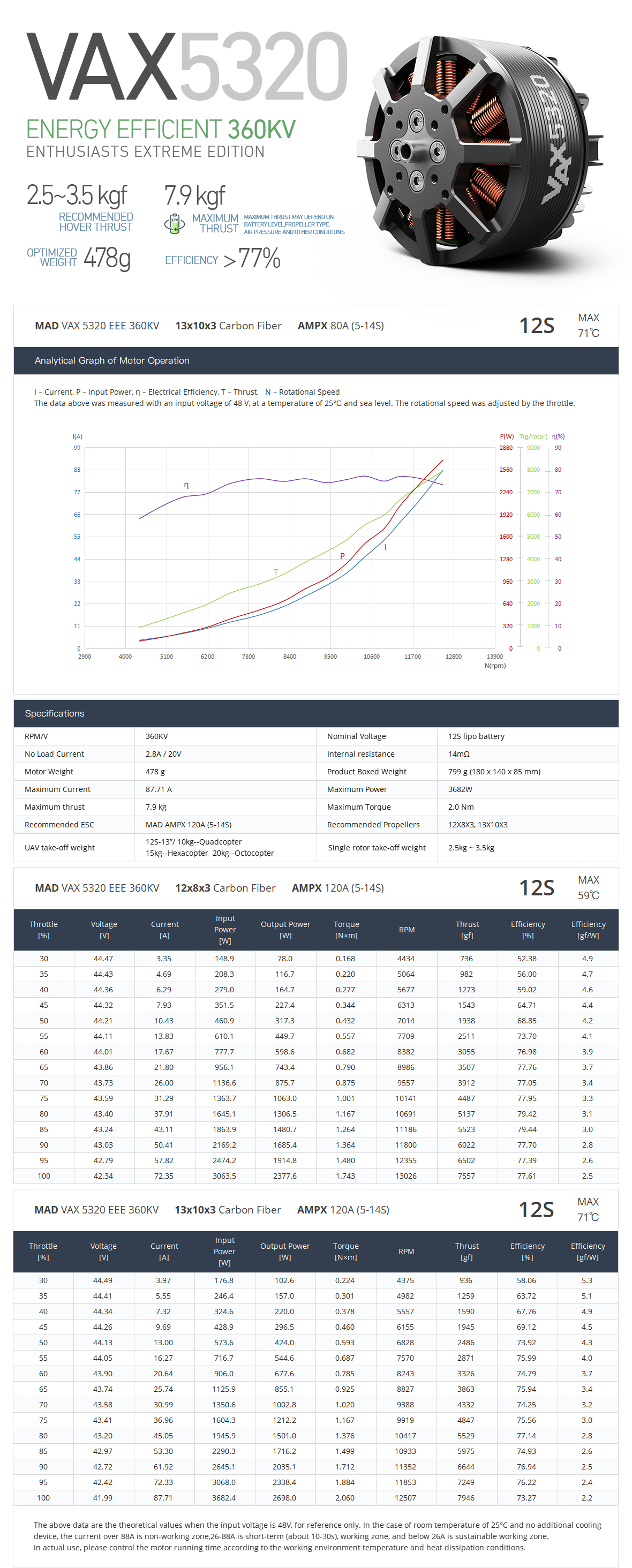

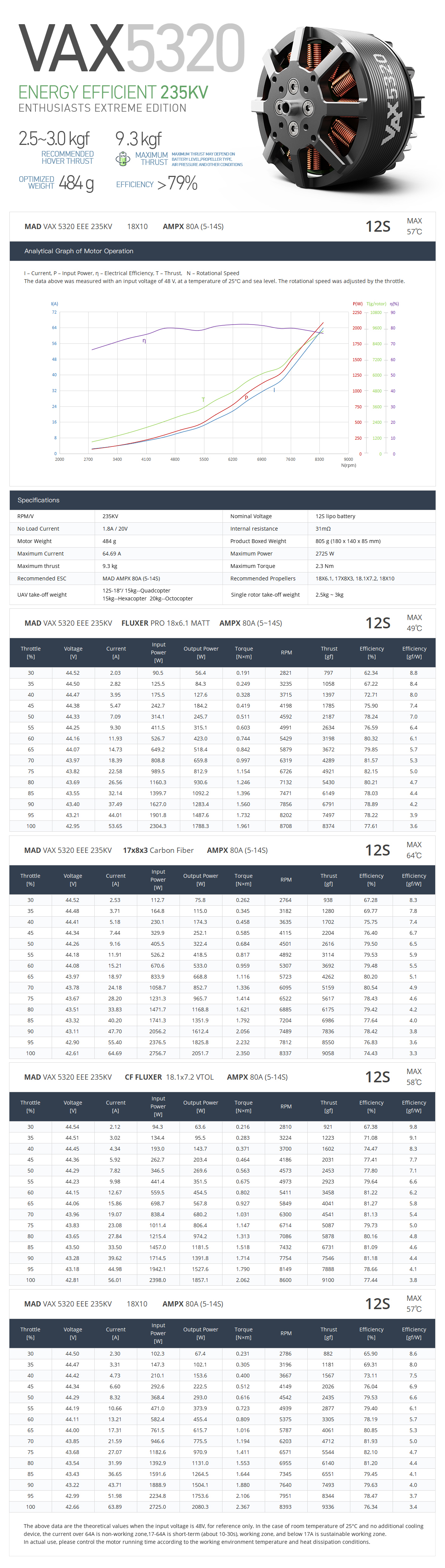

Motor Data

Motor Model

MAD VAX 5320 EEE V3.0

Number of pole pairs

Stator Size

TAIWAN / Anticorrosive

Varnished wire Degree

180°C

Motor Size

D:35 × 40.1mm

Magnet Degree

150°C

Degree of Protection

Rain protection

Cable Length

150 mm (extended Enameled wires)

Centrifugal Heat Dissipation

Independent

Rotor Balance

≤5 mg

Propeller Mounting Holes

D:31 M3×4，D:20 M3*4

Motor Balance

≤10 mg

Shaft Diameter

IN: 10 mm

Motor Mounting Holes

D:30 M4×4, D:44 M4×4

Bearing

EZO 6800ZZ*2 / EZO 6900ZZ*1

Disruptive test

500 V

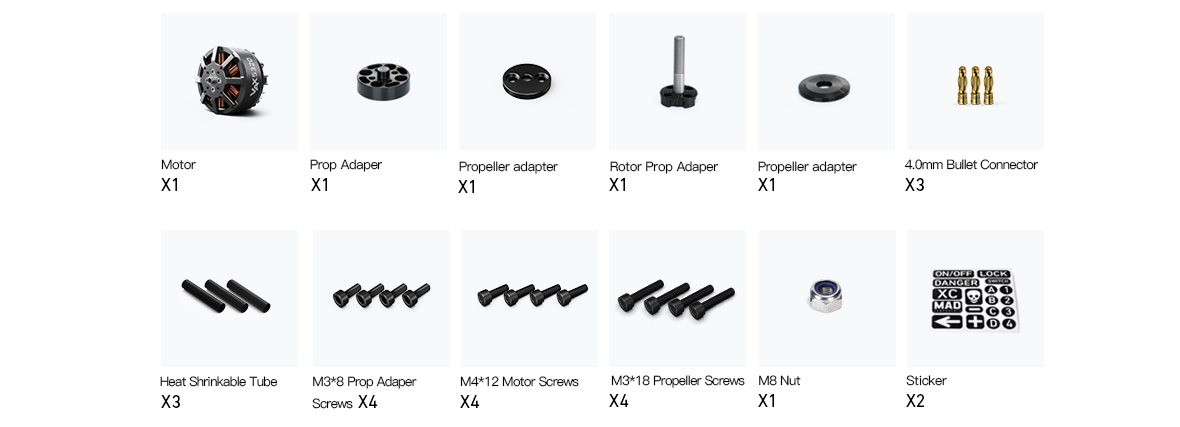

Additional Accessories

Propeller Adapter*1, Propeller plate *1, 4.0mm Bullet connnector*3, Heat shrink tube *3, M4*12mm*4 motor screws, M3*8mm*4 prop adapter screws, Rotor propeller adapter *1, M3*18mm*4 propeller screws, M8 nut *1, Sticker *2
