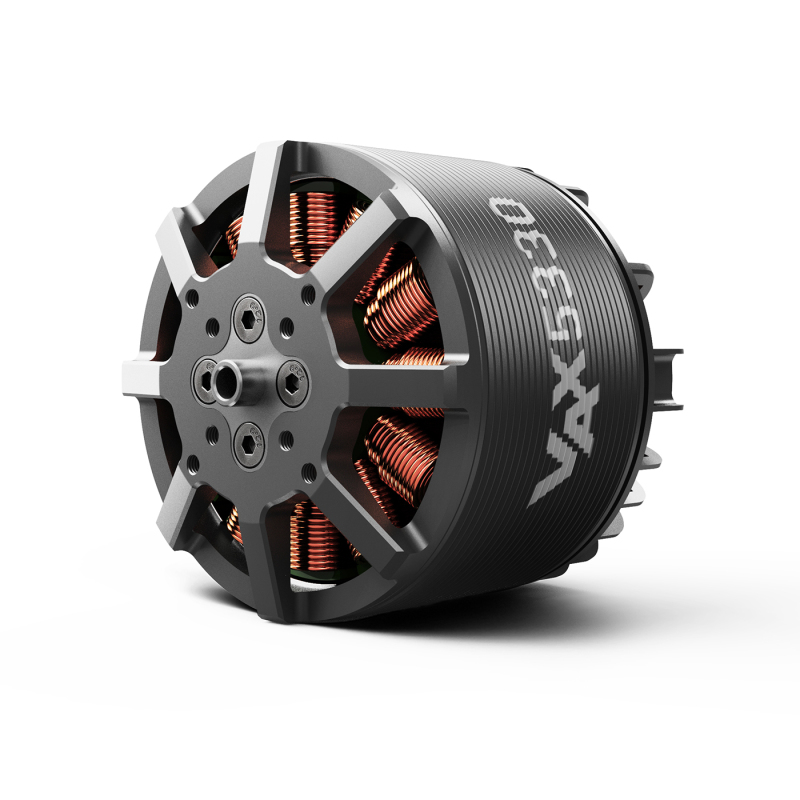

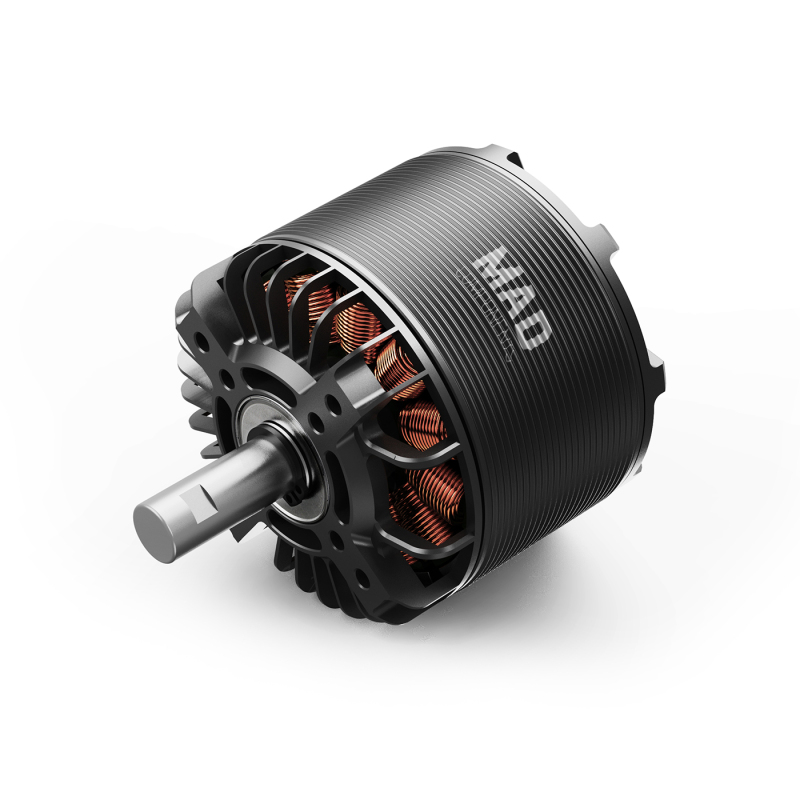

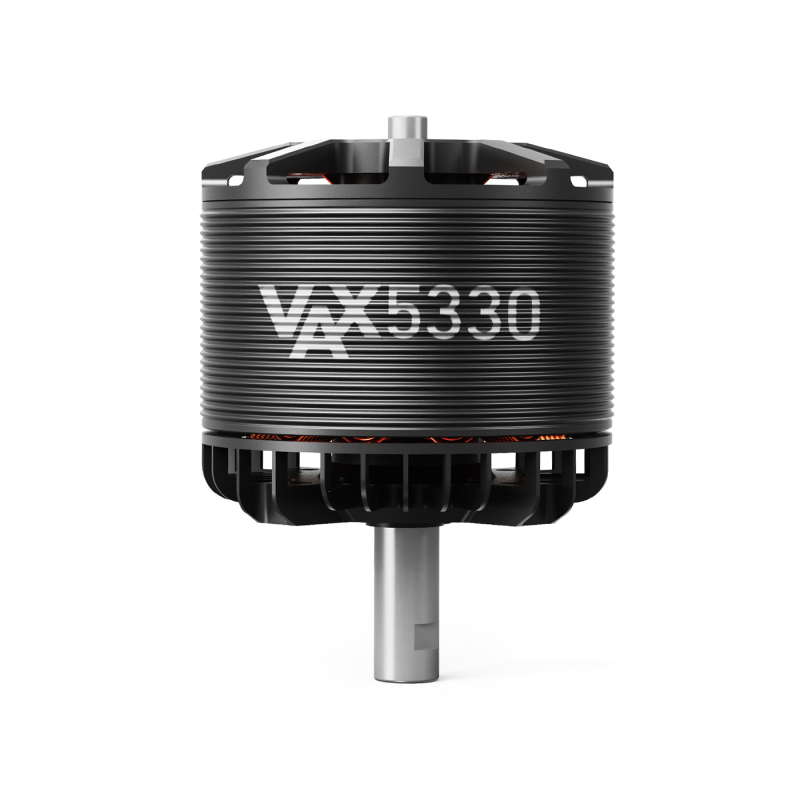

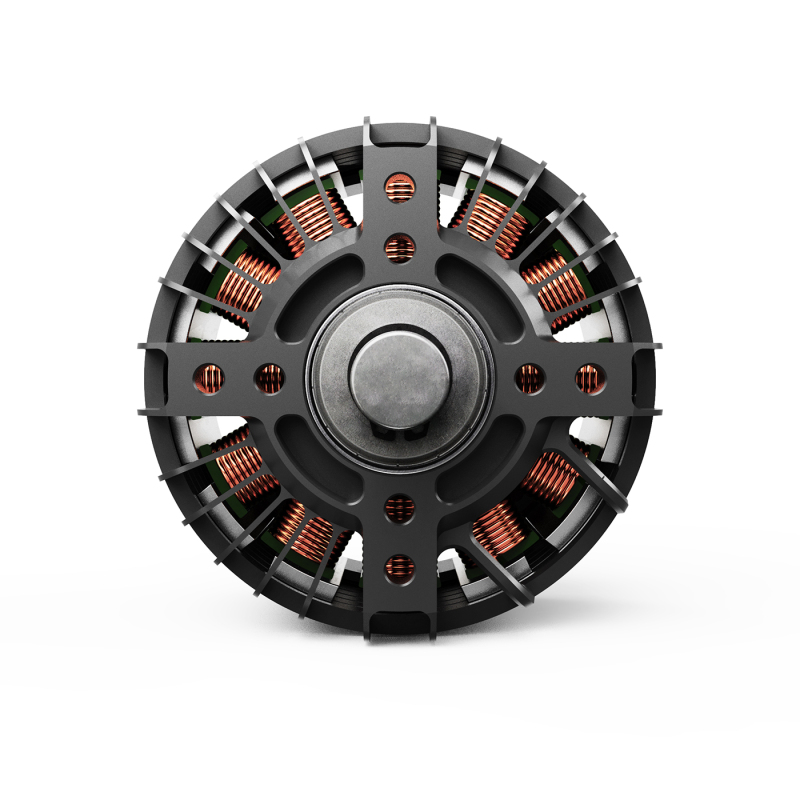

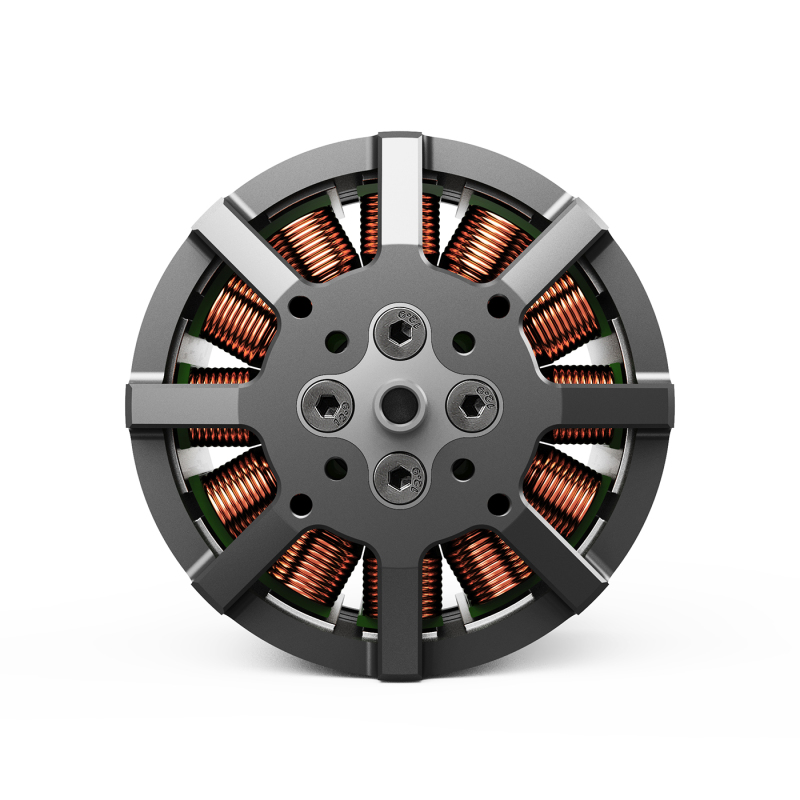

VAX 5330 V2.0 eVTOL Airplane Drone motor (Long Shaft)

SKU: 0101DJ2731
1. Designed for EVTOL, AIRCRAFT, XCLASS to carry 8-10 kg, supports 12S voltage. 2. Long shaft motors may be used to drive pusher propellers (the motor is located in the middle of the fuselage, transmitting power through an axle to the tail boom).
$0.00 $169.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option::
    220kv
    260kv
    Please select the information you wantX
Quantity
-
+
Download
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
1/1
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • VAX 5330 (Long Shaft) eVTOL Airplane Drone motor
  • Description

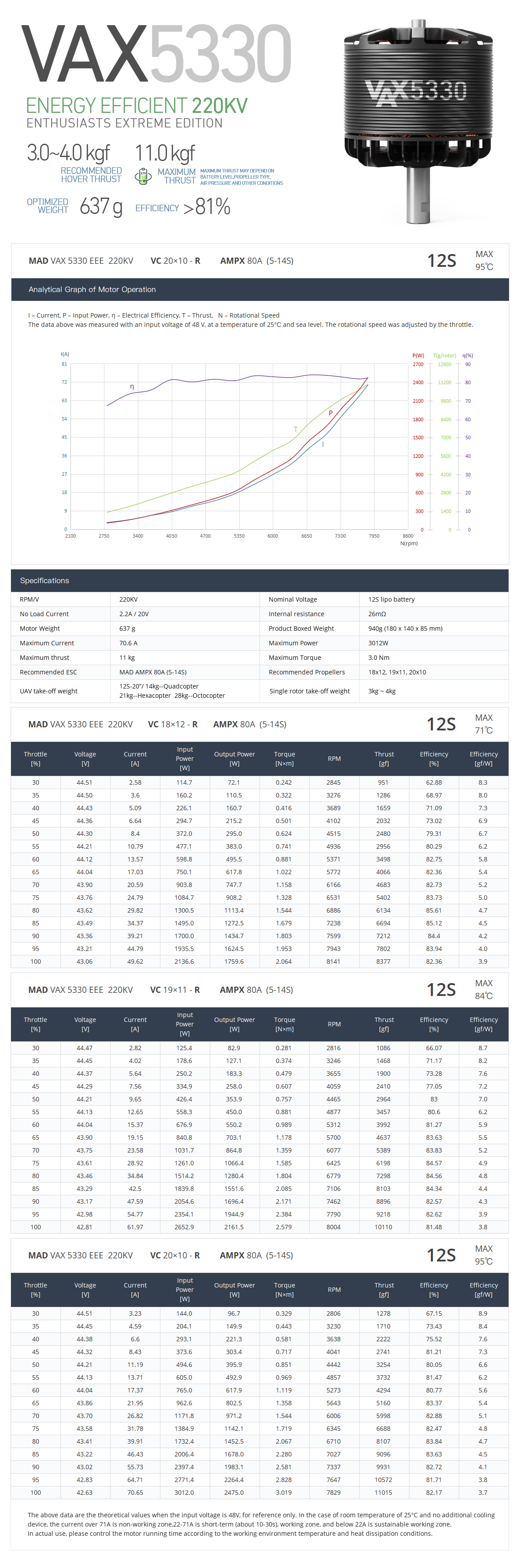

  • 220KV

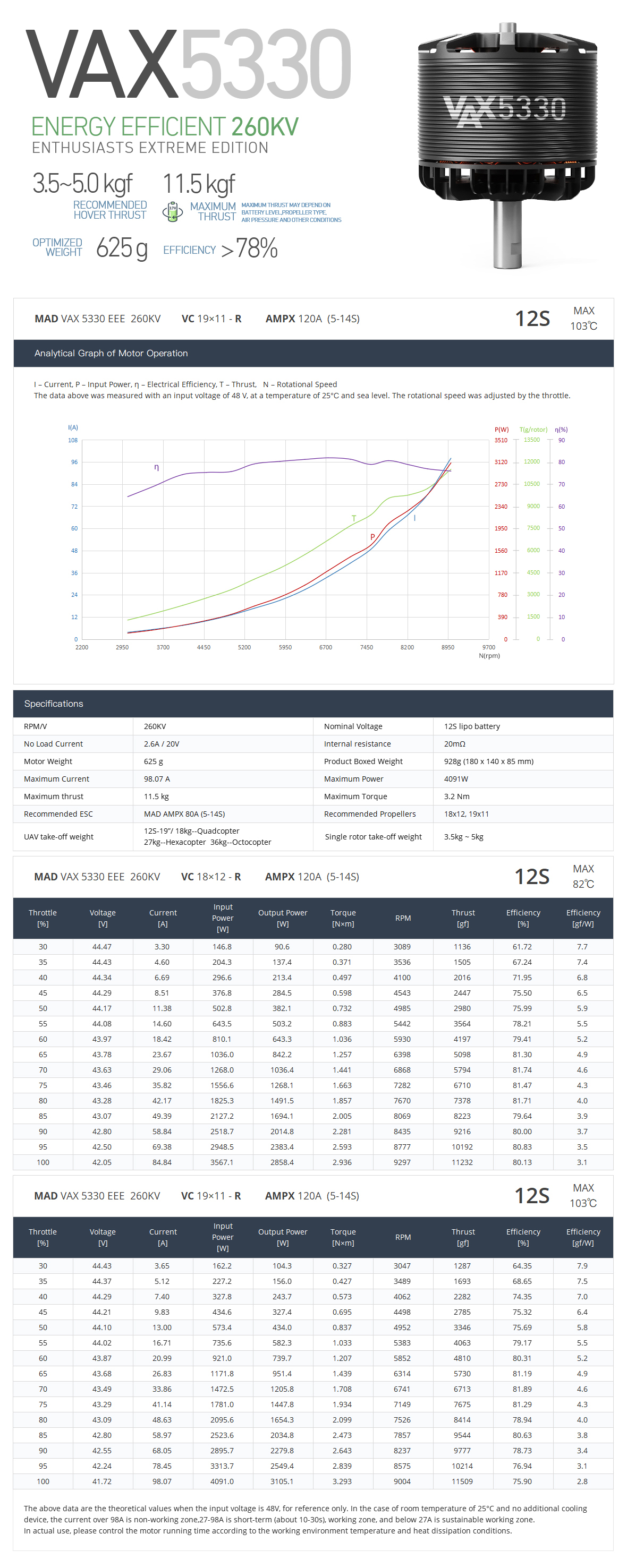

  • 260KV
Motor Data
Motor Model MAD VAX 5330 EEE V2.0 Long Shaft Number of pole pairs 7
Stator Size TAIWAN / Anticorrosive Varnished wire Degree 180°C
Motor Size D: 62.5 × 67.6mm Magnet Degree 150°C
Degree of Protection Rain protection Cable Length 150 mm (14# black silicone wire)
Centrifugal Heat Dissipation Independent Rotor Balance ≤5 mg
Propeller Mounting Holes D:31 M3×4,D:20 M3*4 Motor Balance ≤10 mg
Shaft Diameter IN: 10 mm Motor Mounting Holes D:30 M4×4, D:44 M4×4
Bearing EZO 6800ZZ*2 / EZO 6900ZZ*1 Disruptive test 500 V

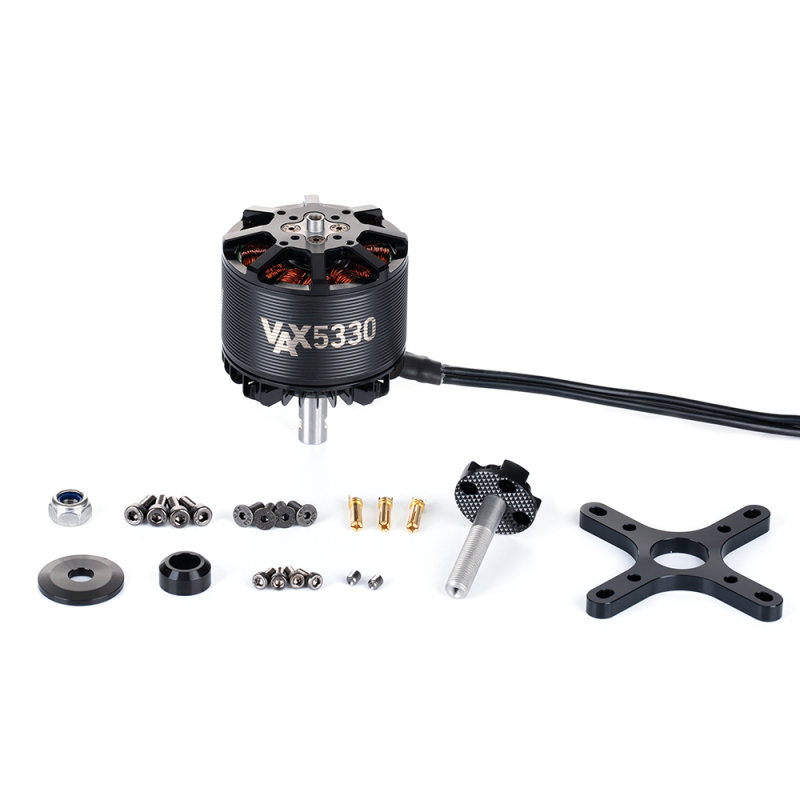

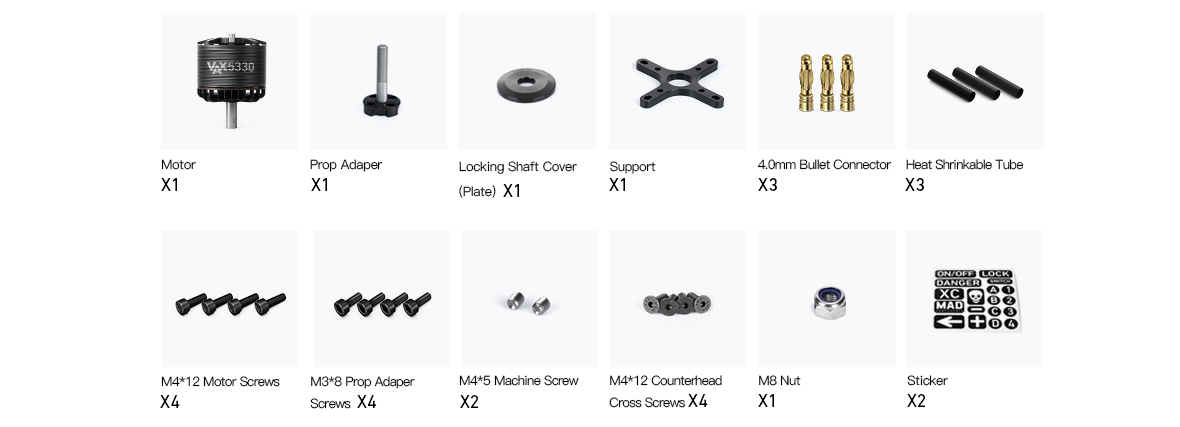

Additional Accessories Propeller Adapter*1, Propeller plate *1, 4.0mm Bullet connnector*3, Heat shrink tube *3, M4*12mm*4 motor screws, M3*8mm*4 prop adapter screws, Rotor propeller adapter *1, M3*18mm*4 propeller screws, M8 nut *1, Sticker *2

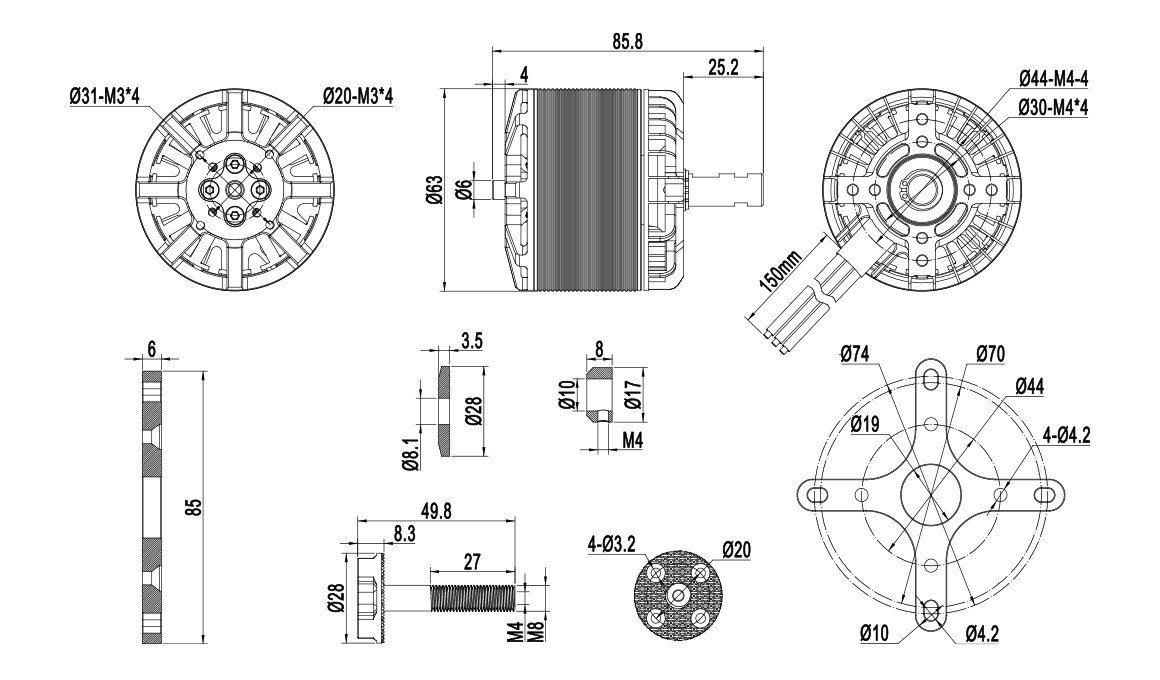

Drawing and mount holes
