VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor

SKU: 0101DJ2676
1. Designed for EVTOL, AIRCRAFT, XCLASS to carry 8-10 kg, supports 12S voltage. 2. For long range flight. It also retains the excellent features and characteristics of the previous generation and improves the safety and durability of the motor, which fully meets the demanding requirements of various industries.
$0.00 $169.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    220KV
    260KV
    Please select the information you wantX
Quantity
-
+
Download
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
1/1
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • VAX 5330 V3.0 (short shaft) EVTOL Airplane Drone motor
  • Description

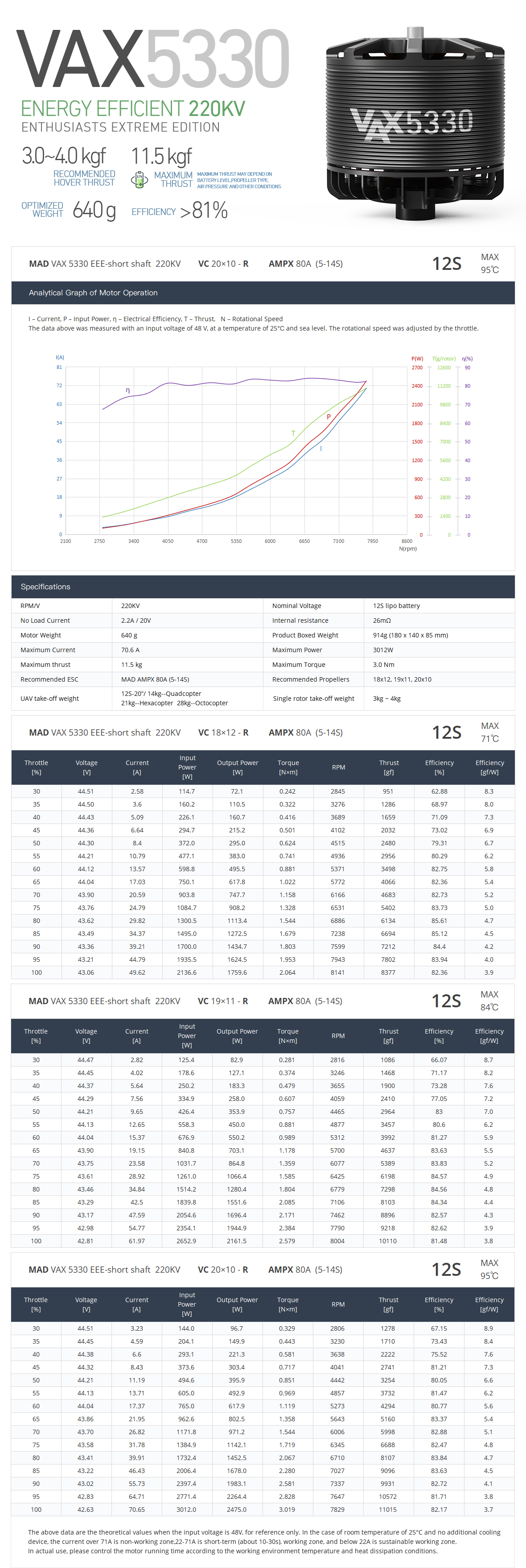

  • 220KV

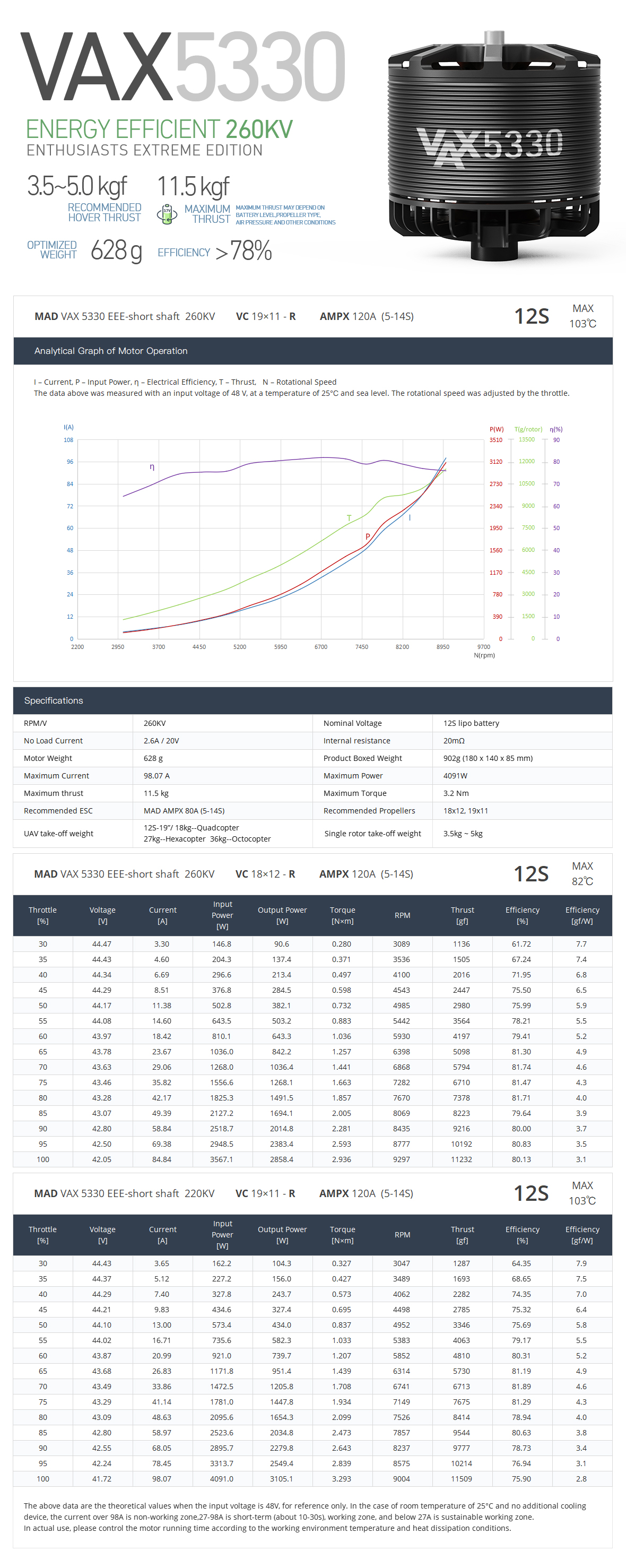

  • 260KV
Motor Data
Motor Model MAD VAX 5330 EEE V3.0 Short Shaft Number of pole pairs 7
Stator Size TAIWAN / Anticorrosive Varnished wire Degree 180°C
Motor Size D: 62.5 × 67.6mm Magnet Degree 150°C
Degree of Protection Rain protection Cable Length 150 mm (Silicone wire)
Centrifugal Heat Dissipation Independent Rotor Balance ≤5 mg
Propeller Mounting Holes D:31 M3×4,D:20 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 10 mm Motor Mounting Holes D:30 M4×4, D:44 M4×4
Bearing EZO 6800ZZ*2 / EZO 6900ZZ*1 Disruptive test 500 V

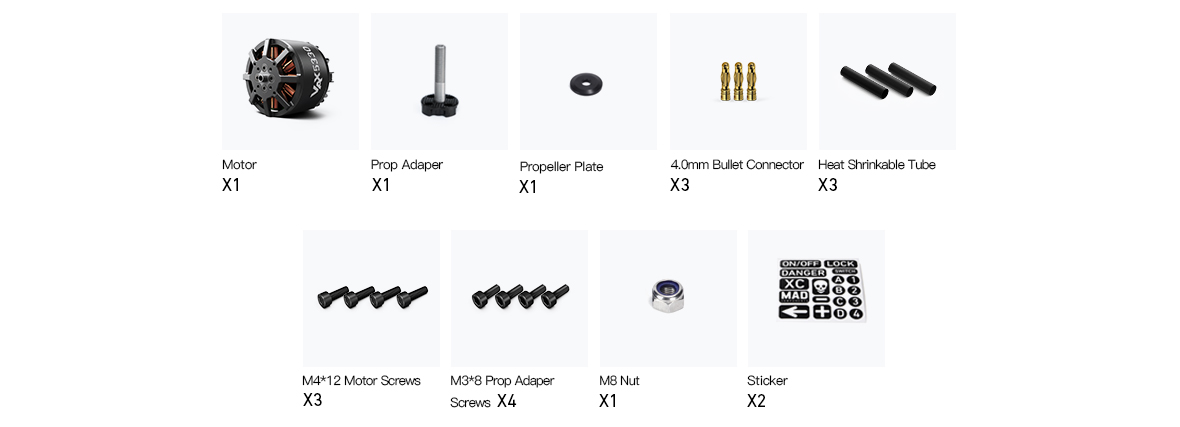

Additional Accessories Propeller Adapter*1, Propeller plate *1, 4.0mm Bullet connnector*3, Heat shrink tube *3, M4*12mm*4 motor screws, M3*8mm*4 prop adapter screws, Rotor propeller adapter *1, M3*18mm*4 propeller screws, M8 nut *1, Sticker *2

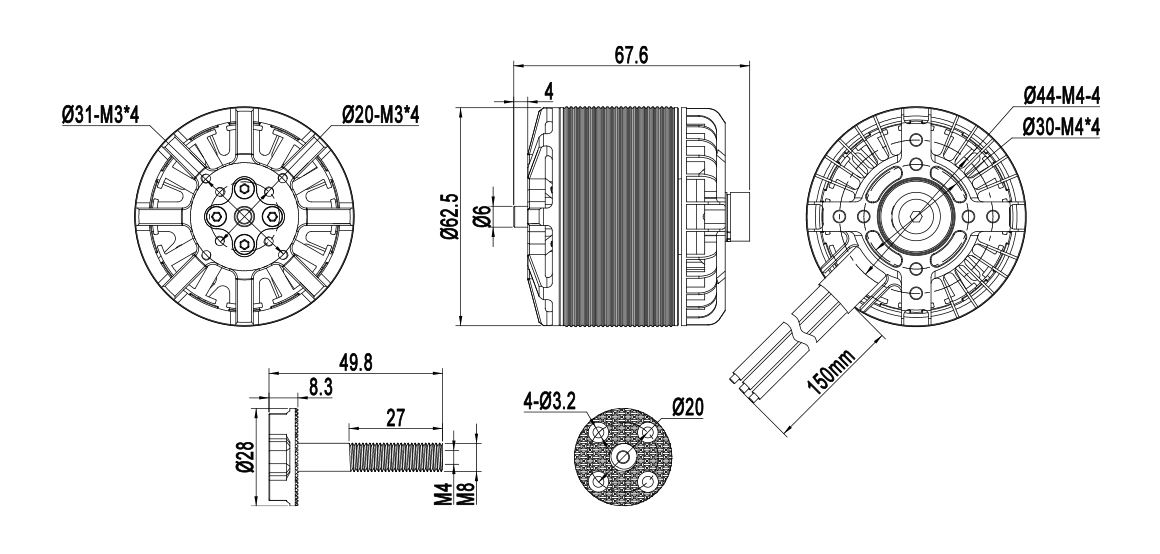

Drawing and mount holes

Accessories
