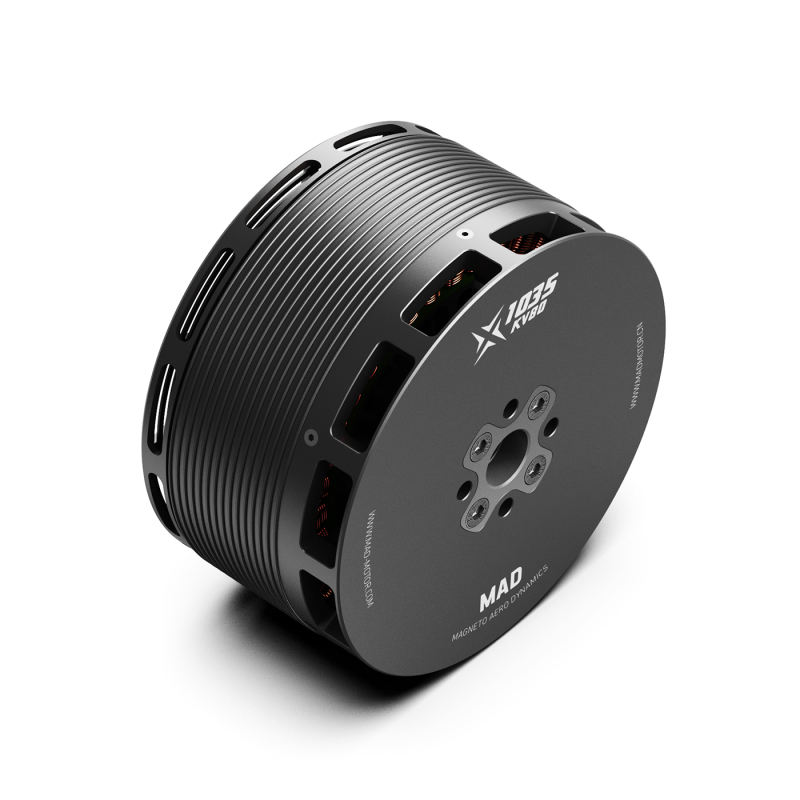

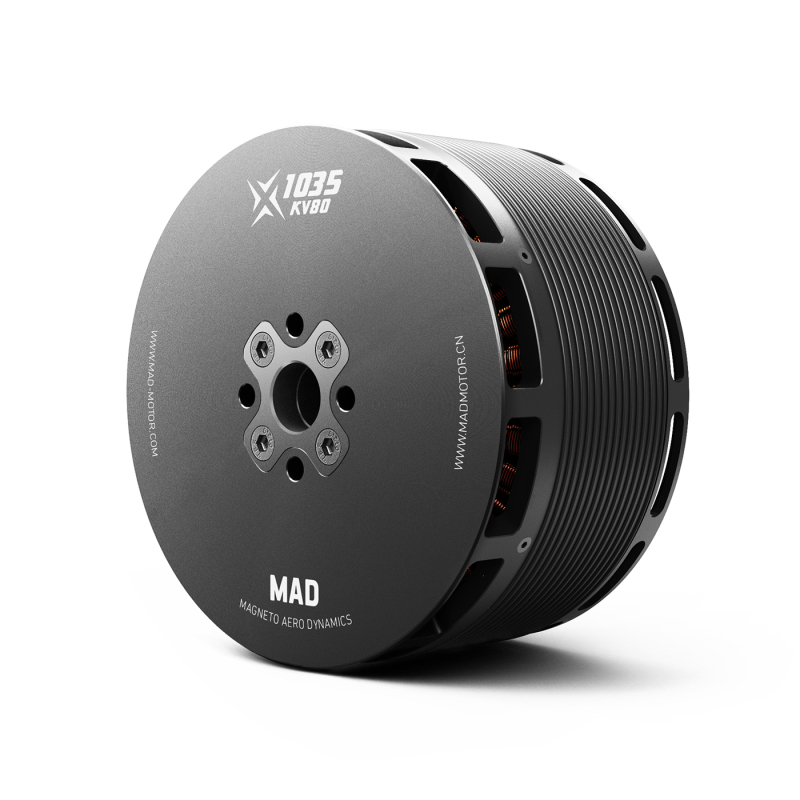

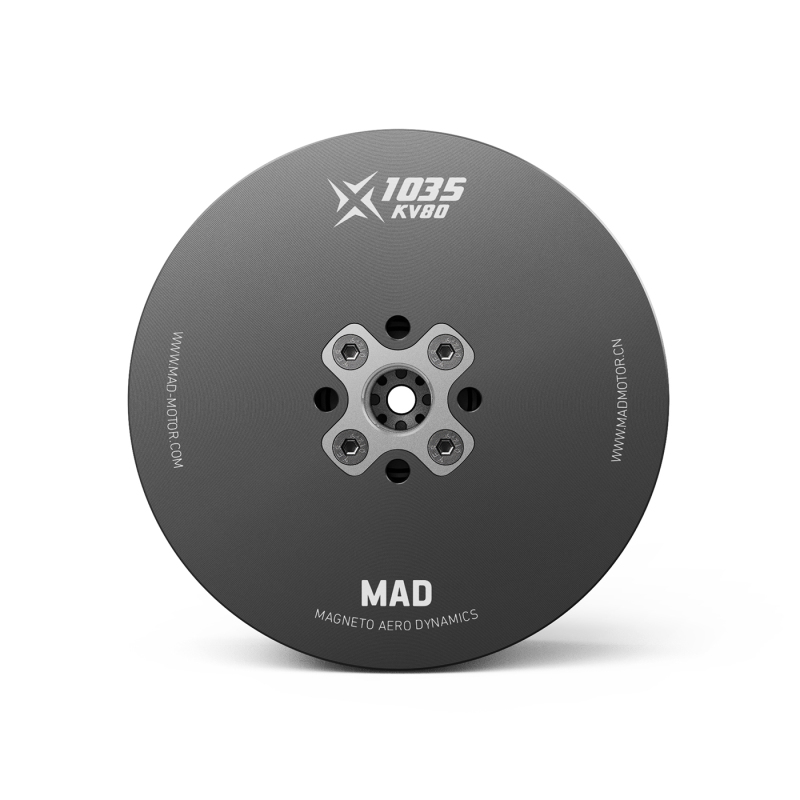

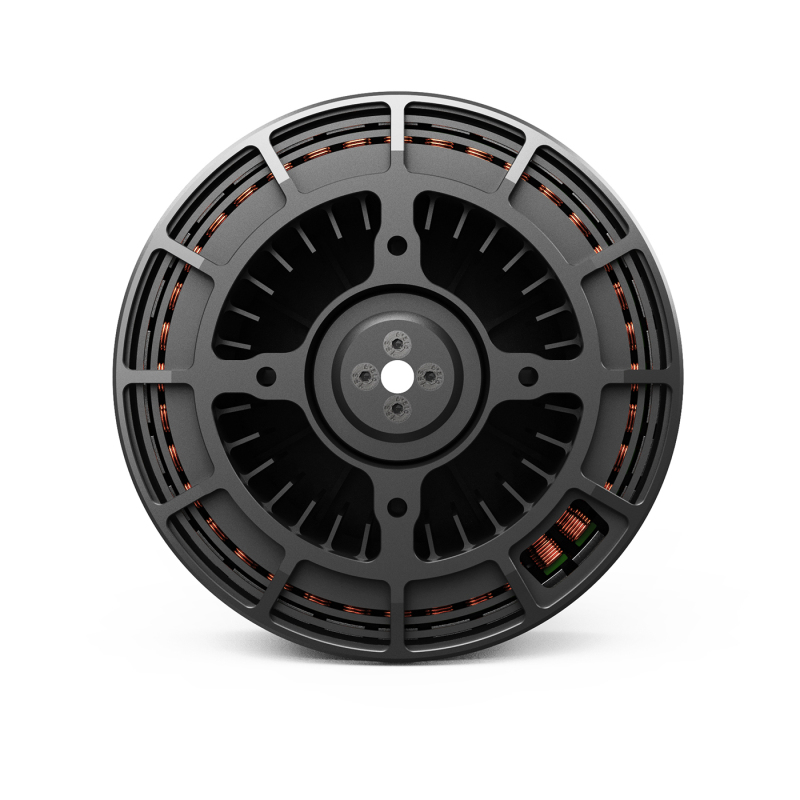

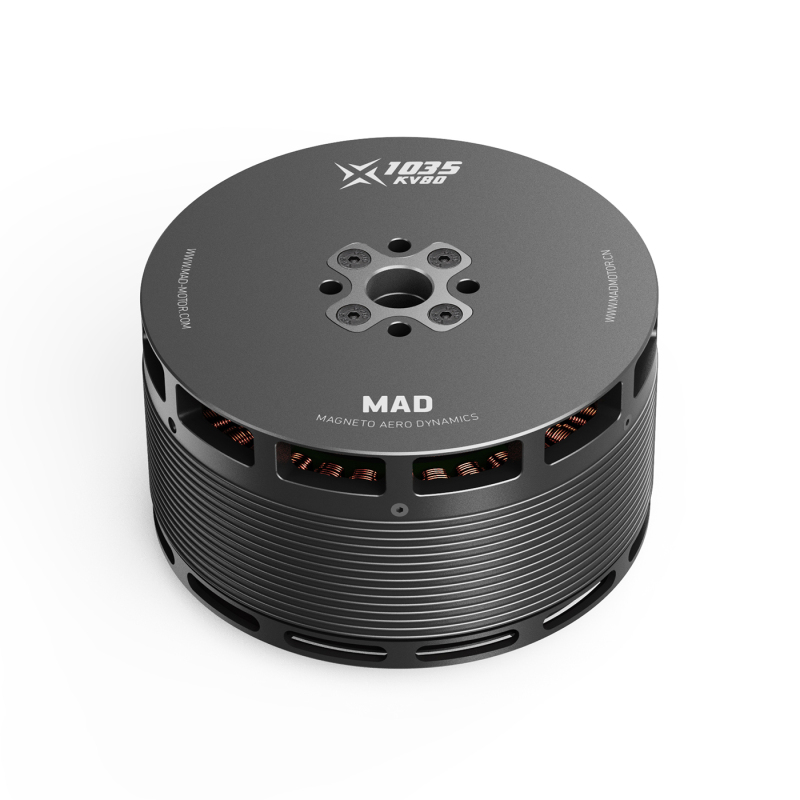

X1035 eVTOL Airplane Drone Motor

SKU: 0101DJ2584

Powering the Future of Hybrid Flight

Engineered for next-gen eVTOL drones and hybrid aircraft, the MAD X1035 redefines propulsion with brutal efficiency and whisper-quiet operation. Whether lifting off vertically or cruising at speed, this motor delivers unmatched thrust-to-weight ratios while sipping energy—because dominance shouldn’t come at the cost of endurance.

KEY FEATURES

 Hybrid Flight Optimized – Seamlessly transitions between vertical lift and forward flight.
 Aerospace-Grade Materials – Titanium-reinforced rotor assembly withstands extreme forces.
 Intelligent Thermal Management – Runs cooler under load, ensuring reliability mid-mission.
 55 dB Silent Operation – Stealthy enough for urban operations or sensitive missions.

For pilots who refuse to choose between power and agility.

🚀 UPGRADE YOUR PLATFORM  Available for integration now.

$0.00 $759.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    80KV
    Please select the information you wantX
Quantity
-
+
Download
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
1/1
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • MAD X1035 eVTOL Airplane Drone Motor
  • Description
  • 80KV

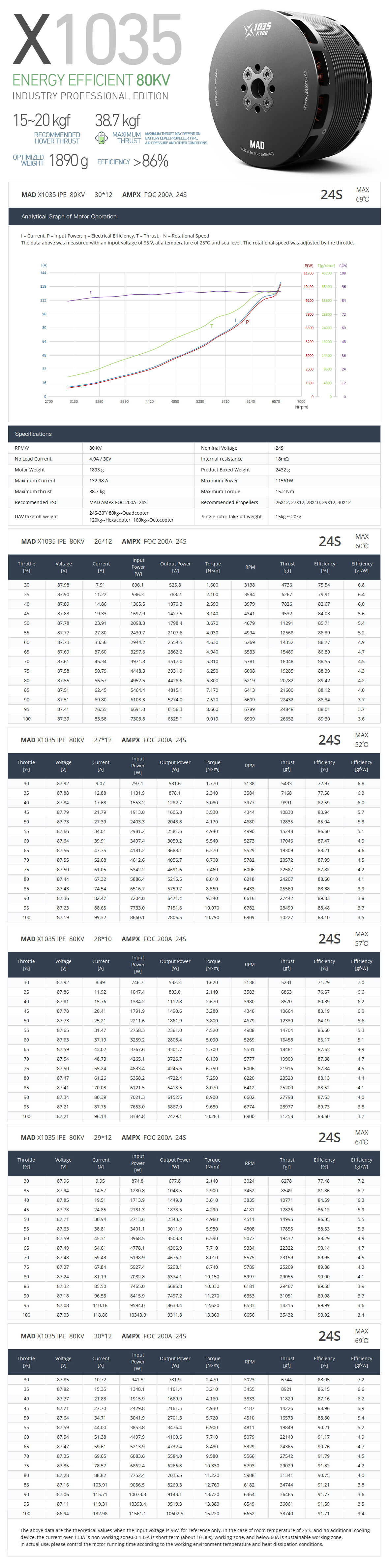

Motor Data
Motor Model MAD X1035 IPE V1.0 Number of pole pairs 15
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:122 x 68.5 mm Magnet Degree 180°C
Degree of Protection Rain protection Cable Length 150 mm (extended Enameled wires
Centrifugal Heat Dissipation Independent Rotor Balance ≤10 mg
Propeller Mounting Holes D:29 M5x4 Motor Balance ≤20 mg
Shaft Diameter IN: 20 mm Motor Mounting Holes D:55 M5×4
Bearing EZO 6904ZZ*2 Disruptive test 1000 V

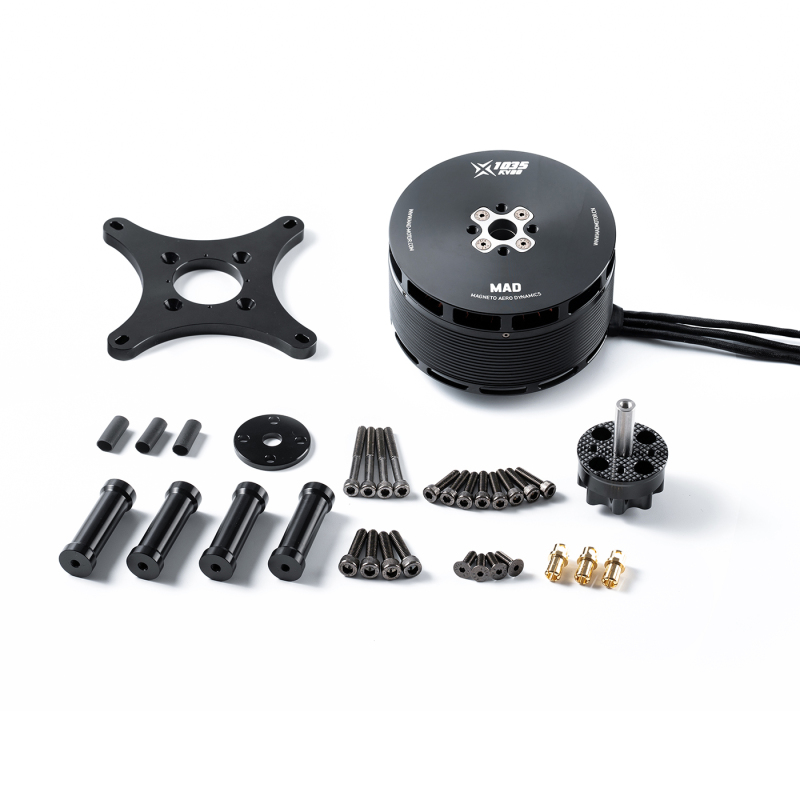

Additional Accessories Support Rod*4Cross*1Propeller Adapter *1Prop Plate *18.0mm Bullet Connector*3Heat Shrinkable Tube*3  M5*20mm *12 Motor Screws,  M5*40mm *4 Propeller ScrewsM5*16mm *4 Counterhead Cross ScrewsSticker*1

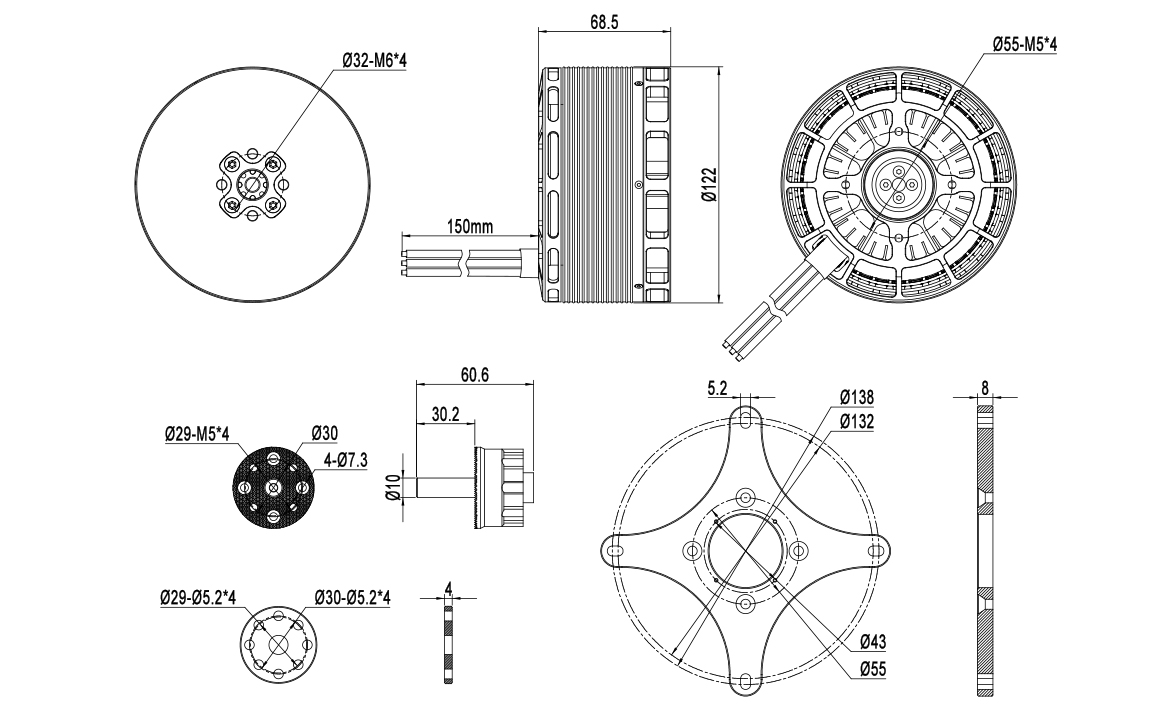

Drawing and mount holes

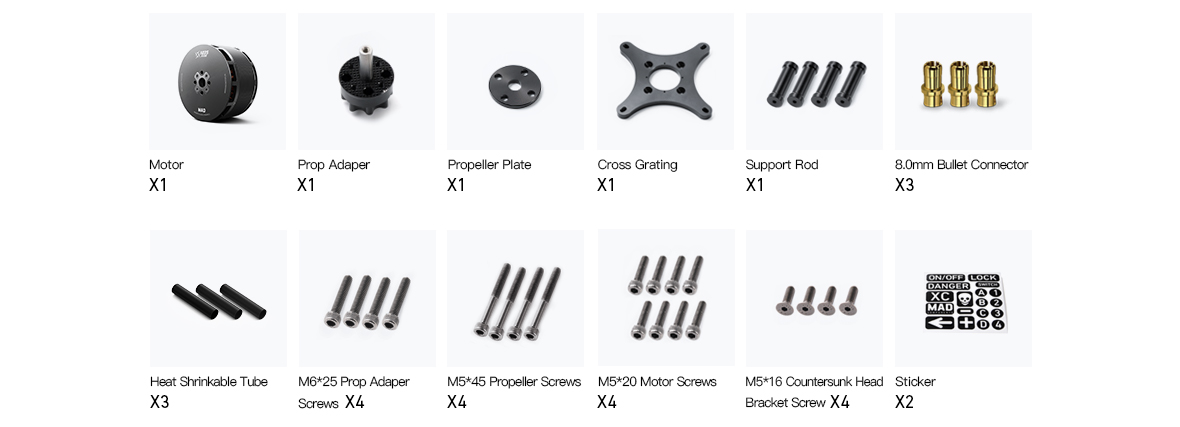

Accessories
