X4219 (short shaft version) eVTOL Airplane Drone Motor

SKU: 0101DJ1615
X-mould is for eVTOL and airplane engines. Designed for harsh conditions and endurance flying. More powerful and efficient than the same thrust motors on the market. 1.Max thrust 6.8kg, 2.IP35 water and dust resistant.
$0.00 $89.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV OPTION:
    270KV
    550KV
    600KV
    Please select the information you wantX
Quantity
-
+
Download
  • X4219
  • X4219
  • X4219
  • X4219
  • X4219
  • X4219
  • X4219
  • X4219
  • X4219
  • X4219
1/1
  • X4219
  • X4219
  • X4219
  • X4219
  • X4219
  • Description
  • 270KV
  • 550KV
  • 600KV

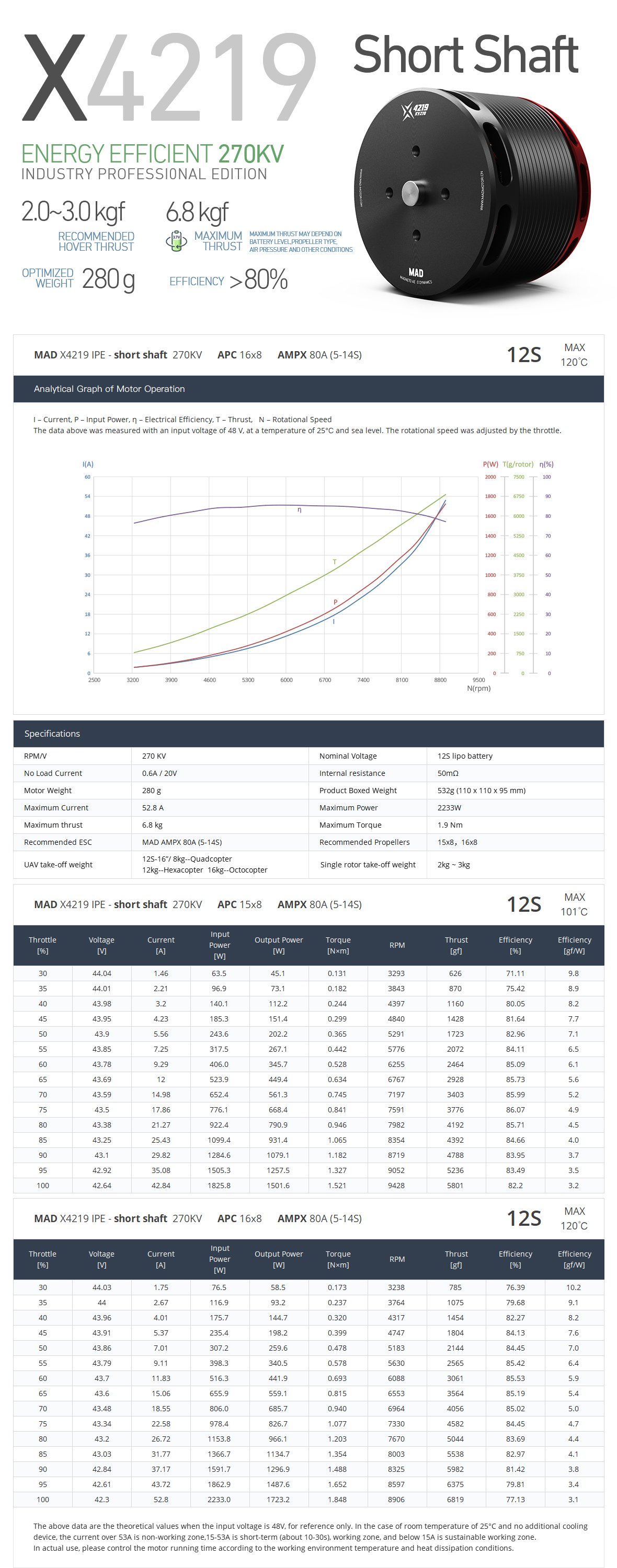

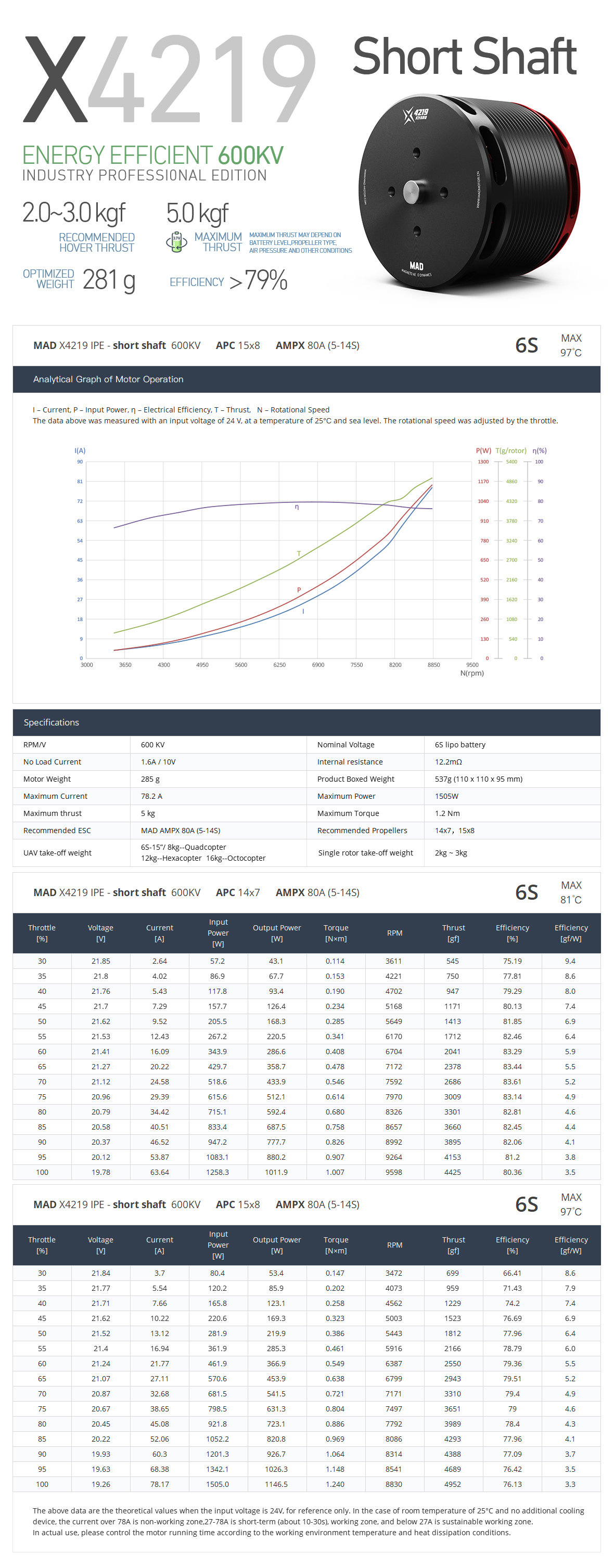

Motor Data

Motor Model MAD X4219 IPE V1.0  (short shaft) Number of pole pairs 7
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:50 × 47 mm Magnet Degree 150°C
Degree of Protection IP35 Cable Length 110 mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:20 M3×4 / M8 Nut Motor Balance ≤10 mg
Shaft Diameter IN: 6 mm Motor Mounting Holes D:30 M4×4, D:56 M4×4, D:60 M4×4
Bearing STT 696 ZZ Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes___________________________________________________________________________________________________________________________

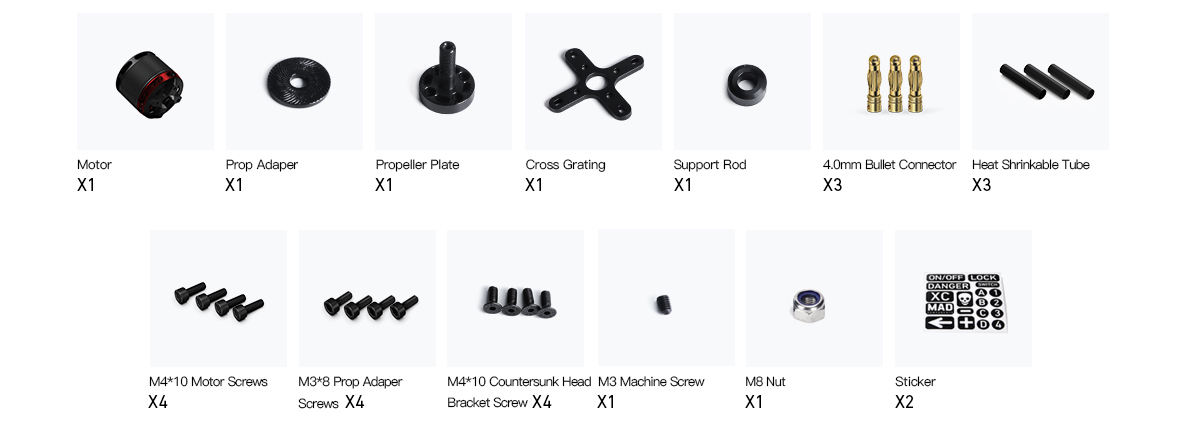

Accessories
