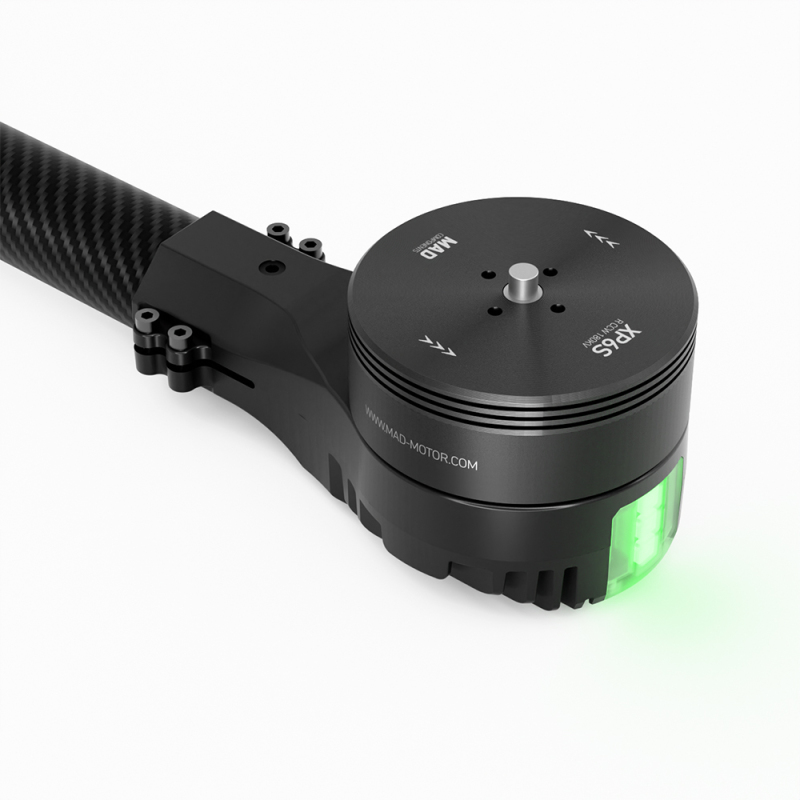

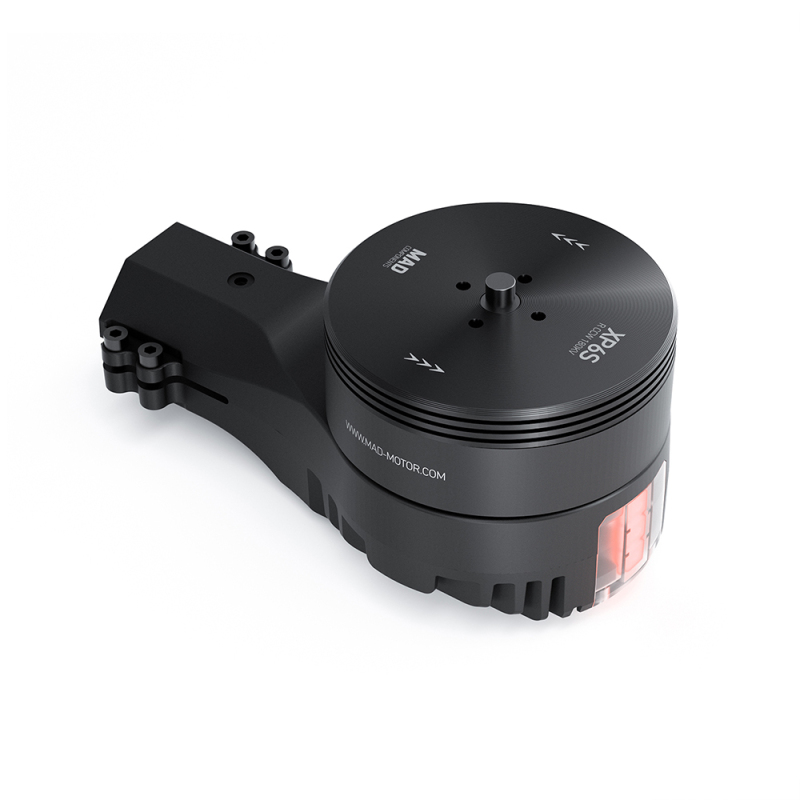

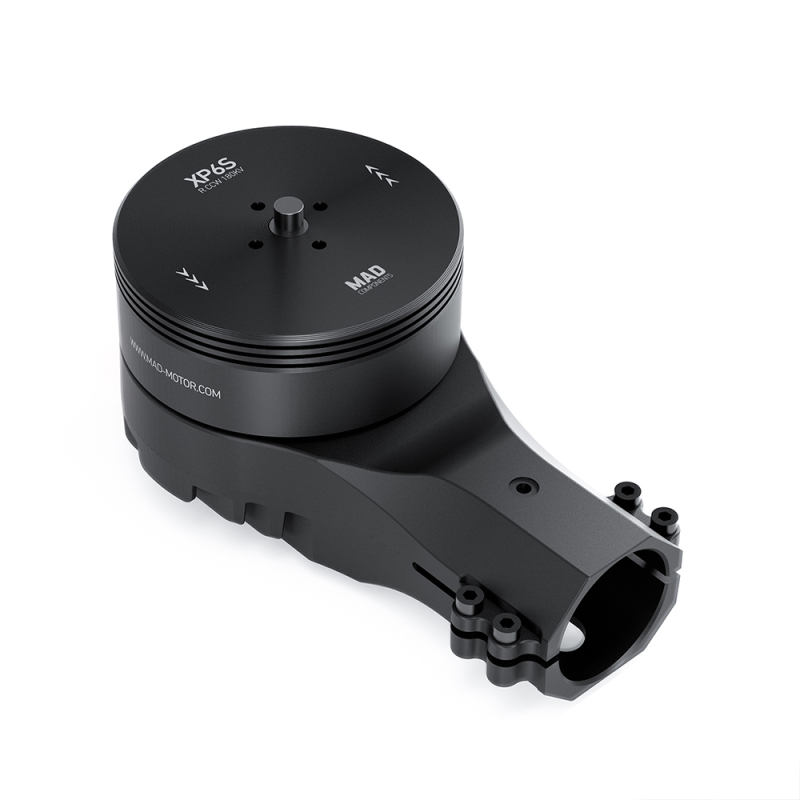

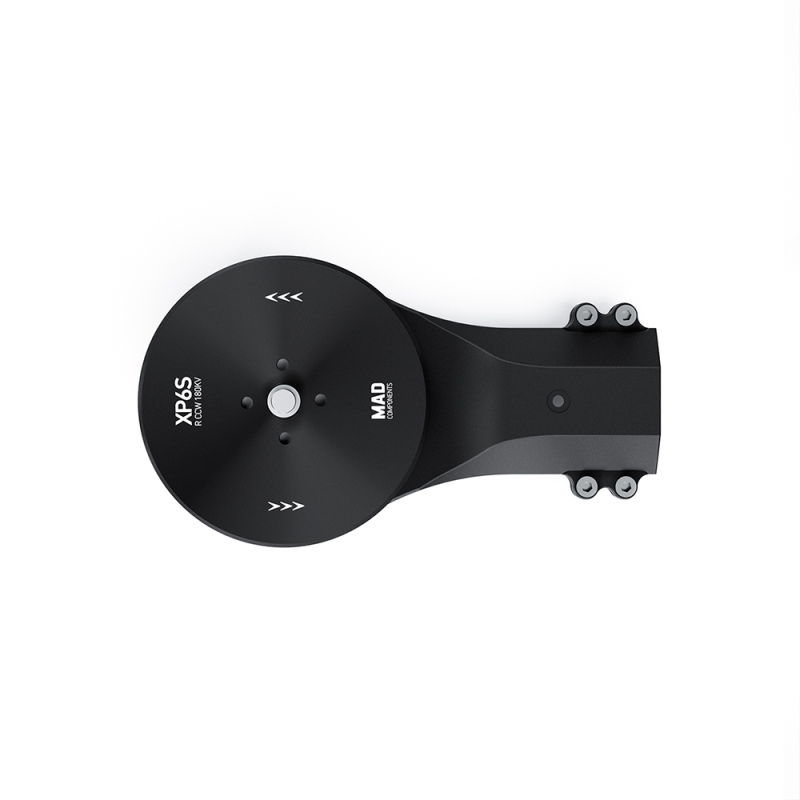

XP6S Drone Arm Set

SKU: 0119XP0003

Features modular design for easy maintenance and upgrades, FOC ESC control for superior efficiency, and IPX6 waterproofing for durability in harsh conditions.

-Rigorously tested to ensure long-term reliability in demanding operations
IP Rating:ipx6
Total weight:766g+10
Maximum thrust: 12kg
Recommended sustained thrust: 3.5-5.5KG
Built-in high brightness LED night ligh

$179.99

Received successfully

Coupon Code

Please select the information you want X

KV VALUE:

160KV
Rotation direction:

CW

CCW
PROPELLER:

Without Propeller

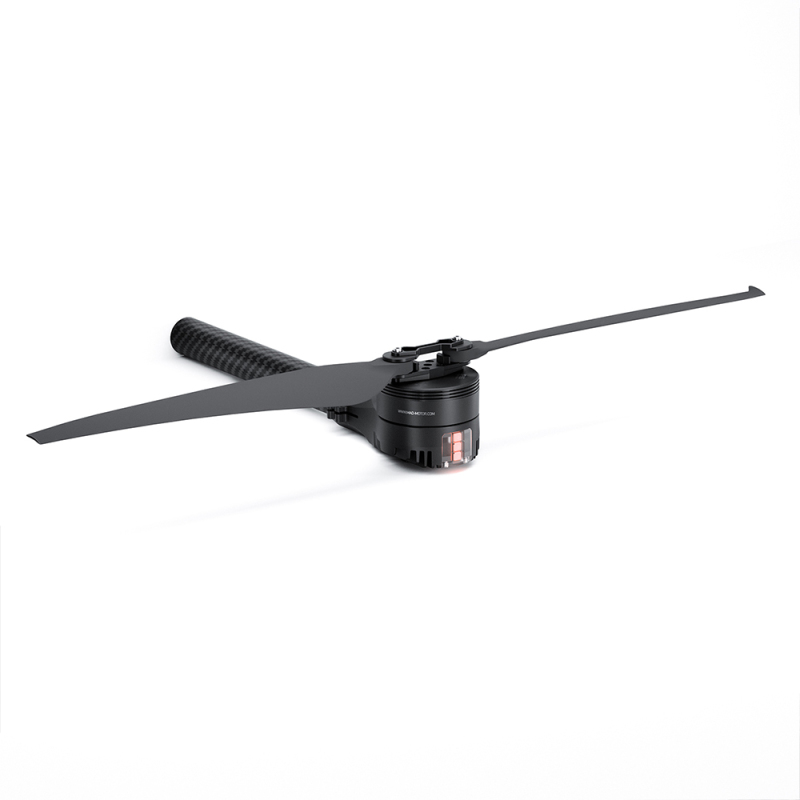

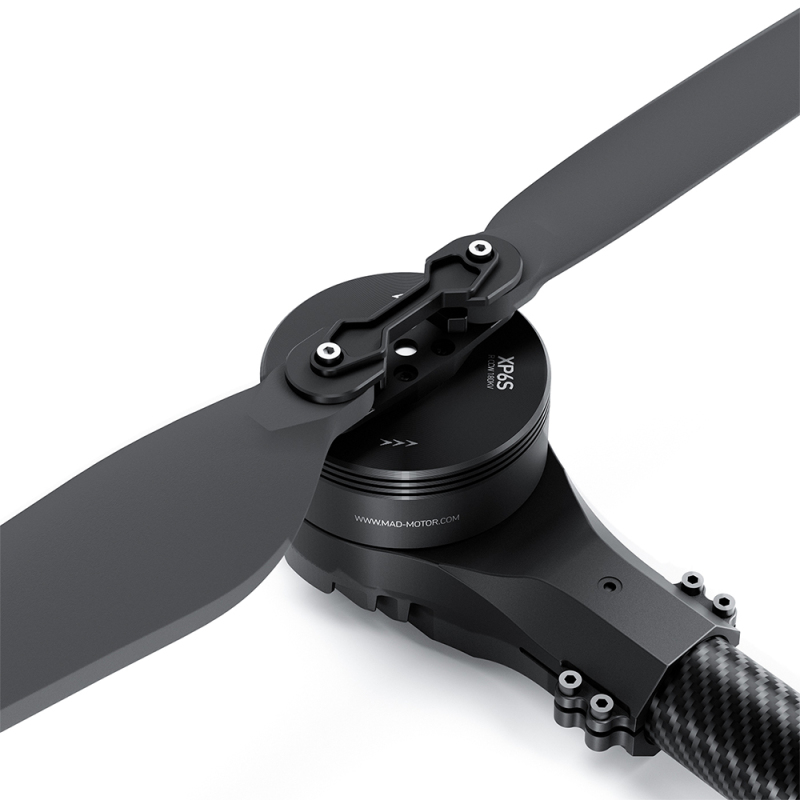

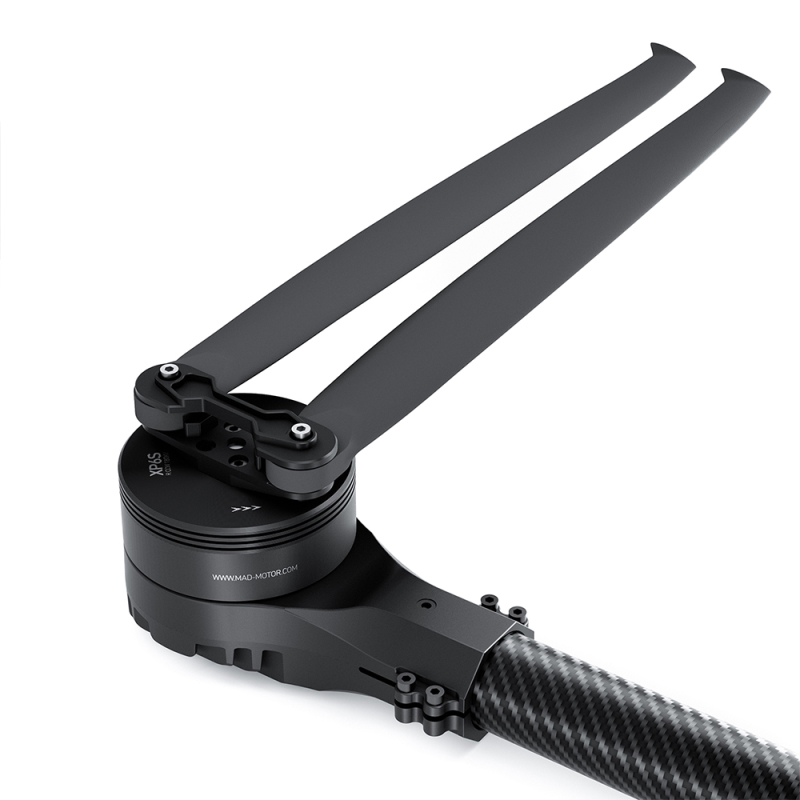

With 24x8 Propeller
Communication Type:

Serial Port

CAN

Quantity

Download

Add to Favorites (0)

1/1

Description
FAQ

The SERIAL PORT PROTOCOL:

the serial port protocol mainly transmits real-time data from the electronic speed controller (ESC) to the flight controller, handles ESC firmware updates, and has no other functions.

CAN:

CAN communication transmits real-time data from the electronic speed controller (ESC) to the flight controller. Additionally, the flight controller can control the ESC using CAN throttle. The CAN version of the ESC supports dual redundancy control via both PWM and CAN throttle.

The real-time data includes output input throttle (PWM) control signals, motor speed, ESC voltage, ESC current (input current and phase current), ESC temperature, and ESC capacitor temperature.
