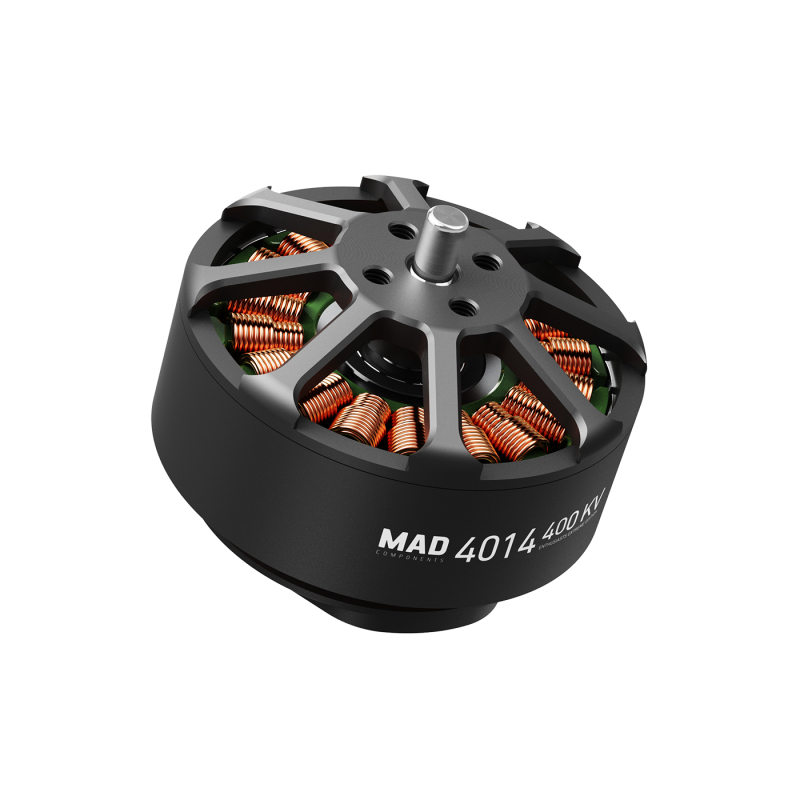

4014 EEE Brushless Drone Motor

SKU: 0101DJ0075
MAD 40 series motors are the classic UAV motors for small to medium industrial use, efficient and for endurance flights. These sizes of motors have been released on the market for 10years, MAD Components has optimised them to be very lightweight design. it is also for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor.
$0.00 $89.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    370KV
    440KV

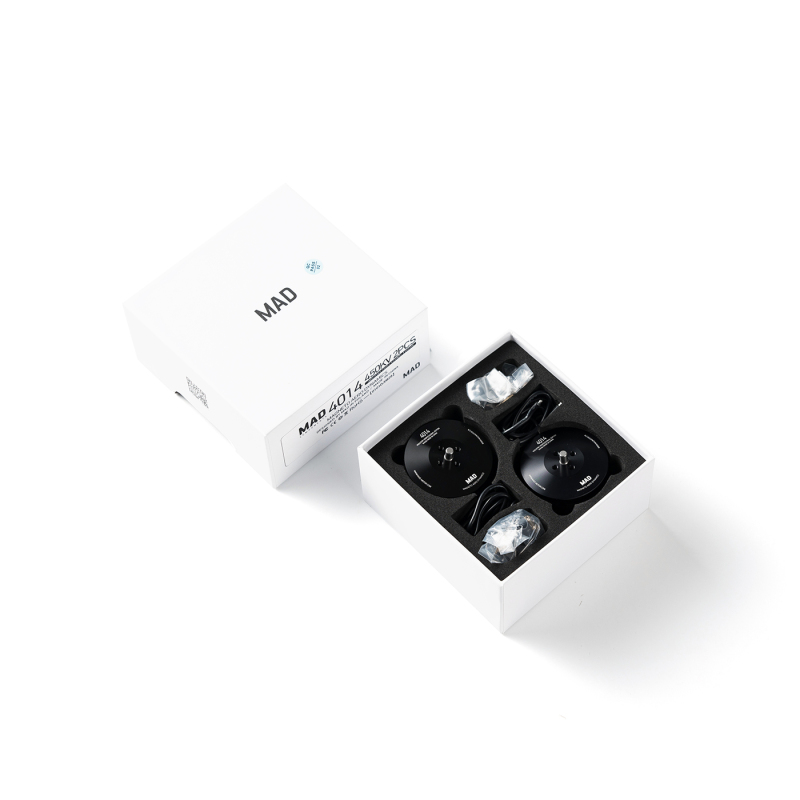

  • packing way:
    1PC
    2PCS
    Please select the information you wantX
Quantity
-
+
Download
  • MAD 4014 EEE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 4014 EEE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 4014 EEE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 4014 EEE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 4014 EEE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • Description
  • 370KV
  • 400KV
Specification

Motor Model
MAD 4014 EEE V1.0
Number of pole pairs
12
Stator
Anticorrosive
Varnished wire Degree
150°C
Motor Size
D:44.9 × 39.9 mm
Magnet Degree
150°C
Degree of Protection
Rain protection Cable Length
600 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation
Independent Rotor Balance
≤5 mg
Propeller Mounting Holes
D:12 M3×4
Motor Balance
≤10 mg
Shaft Diameter
IN: 5 mm
Motor Mounting Holes
D:25 M3×4, D:32 M2.5×3
Bearing EZO 685ZZ*1 / EZO 695ZZ*1
Disruptive test
500 V

___________________________________________________________________________________________________________________________


Drawing and mount holes
