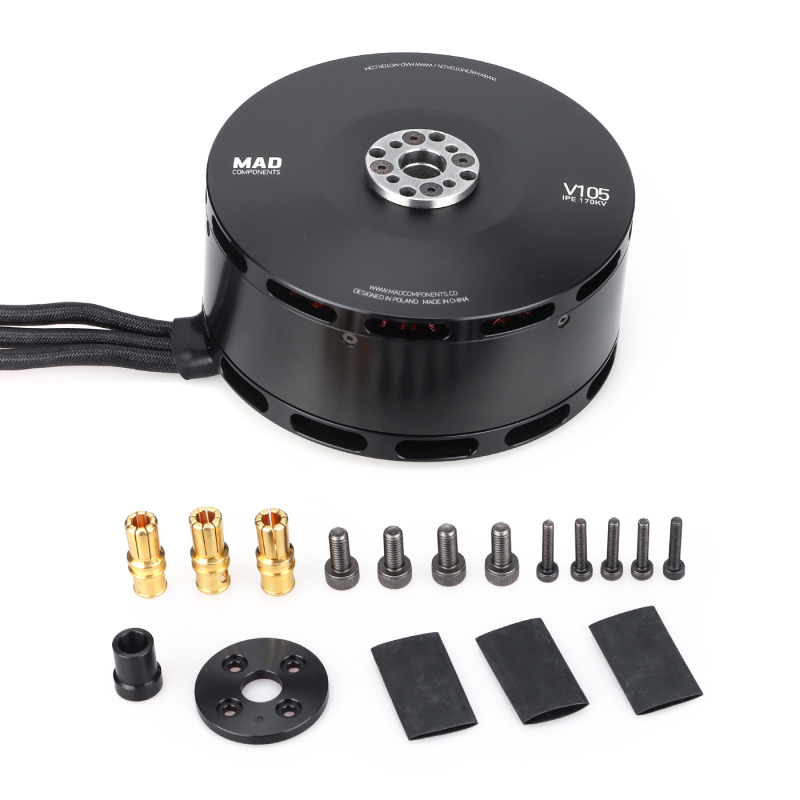

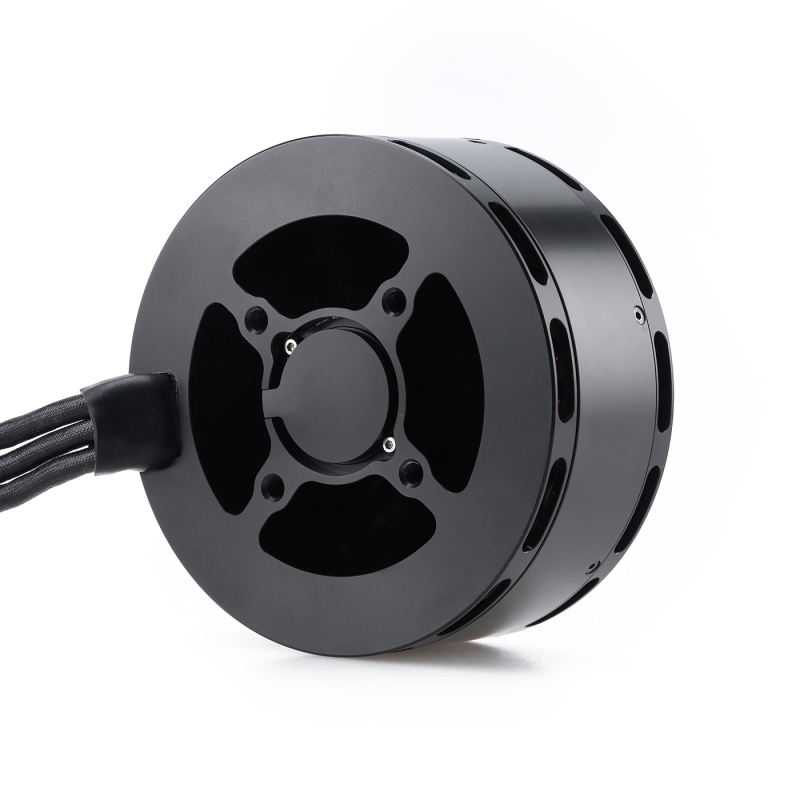

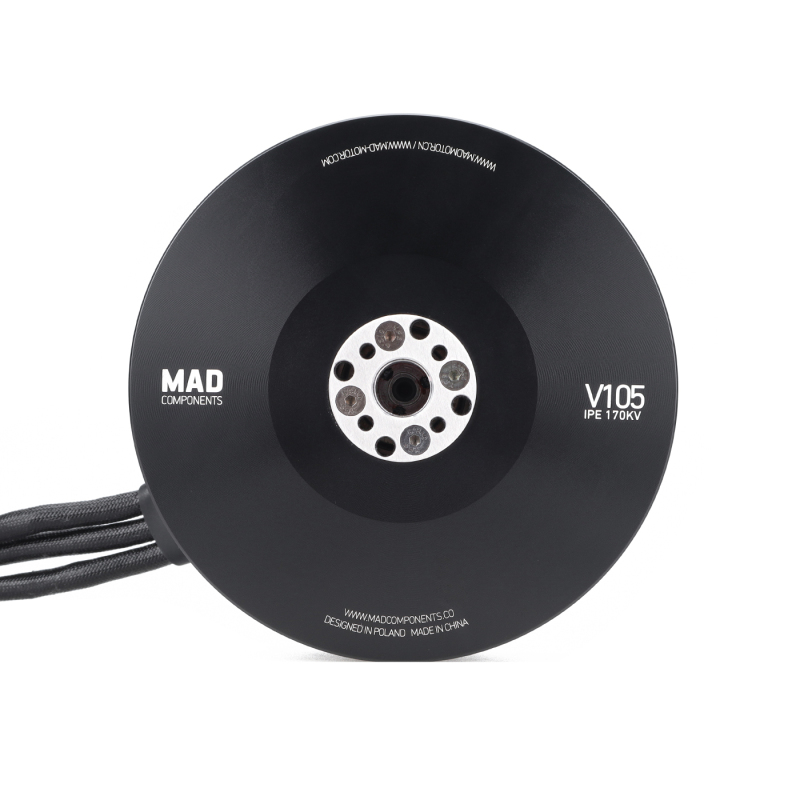

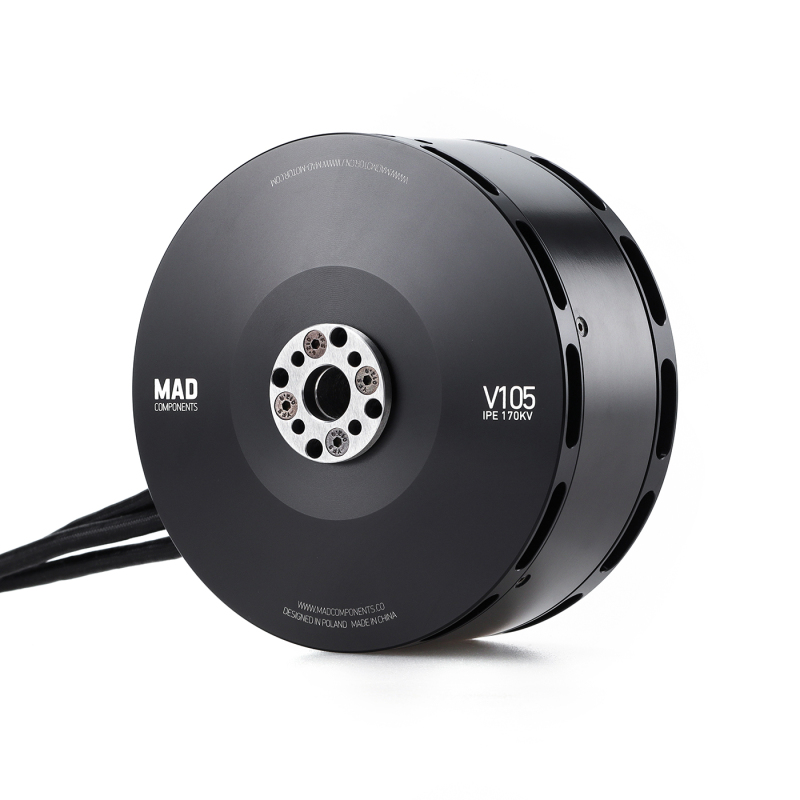

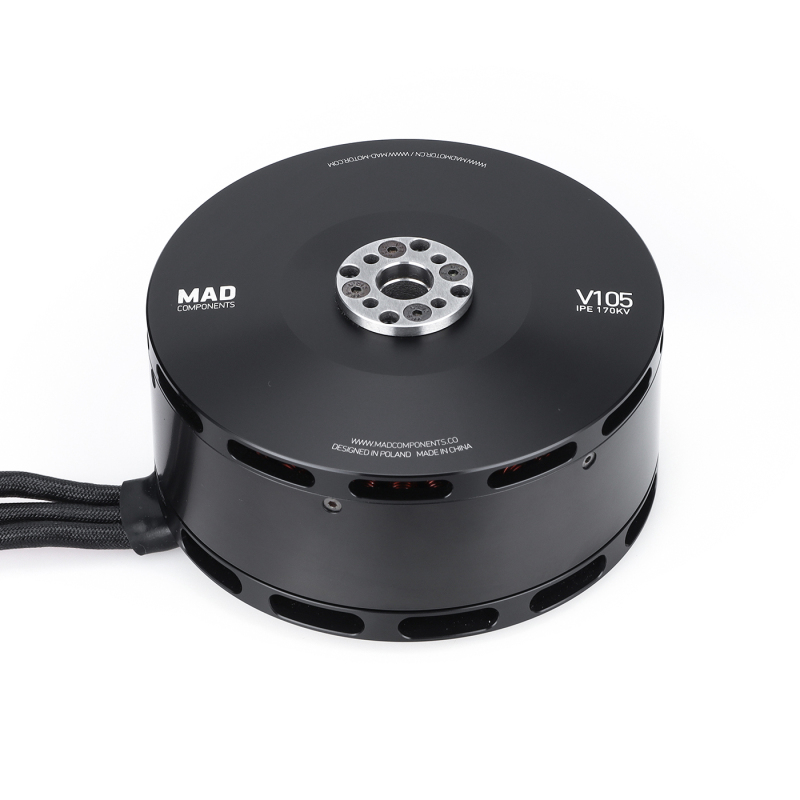

V105 IPE V2.0(30p) EVTOL Drone Motor

SKU: 0101DJ1213
Designed to carry payloads of 10-13kg per rotor, with 30″ carbon propeller. Max thrust is up to 30.4kg per rotor, unit motor weighs only 999g. With large pitch EVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional UAVS.
$0.00 $379.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    170KV
    Please select the information you wantX
Quantity
-
+
Download
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
1/1
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • V105 IPE EVTOL Drone Motor
  • Description

Motor Data

Motor Model MAD V105 IPE V2.0 Number of pole pairs 15
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:108.6 × 49.9 mm Magnet Degree 180°C
Degree of Protection IP35 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:20 M3×4, D:24 M4×4 Motor Balance ≤20 mg
Shaft Diameter IN: 20 mm Motor Mounting Holes D:50 M5×4
Bearing 6902ZZ*2 Disruptive test 500 V

Drawing and mount holes
