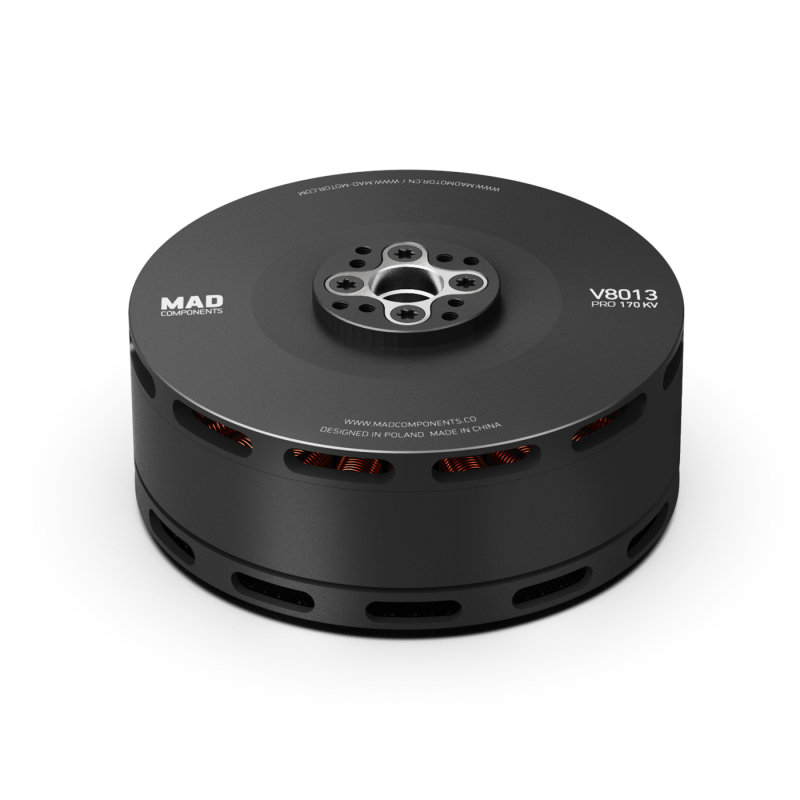

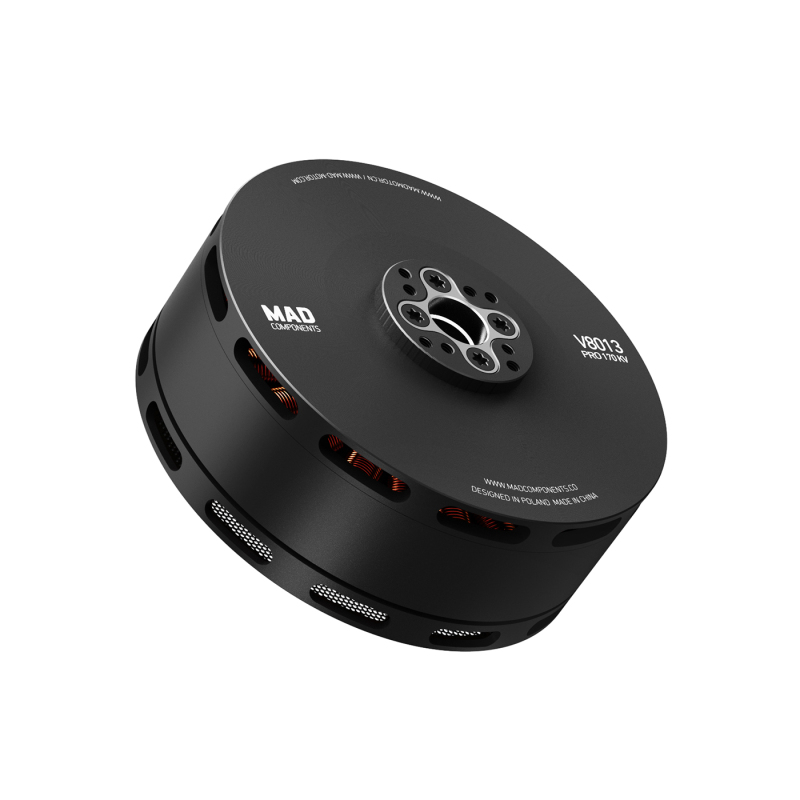

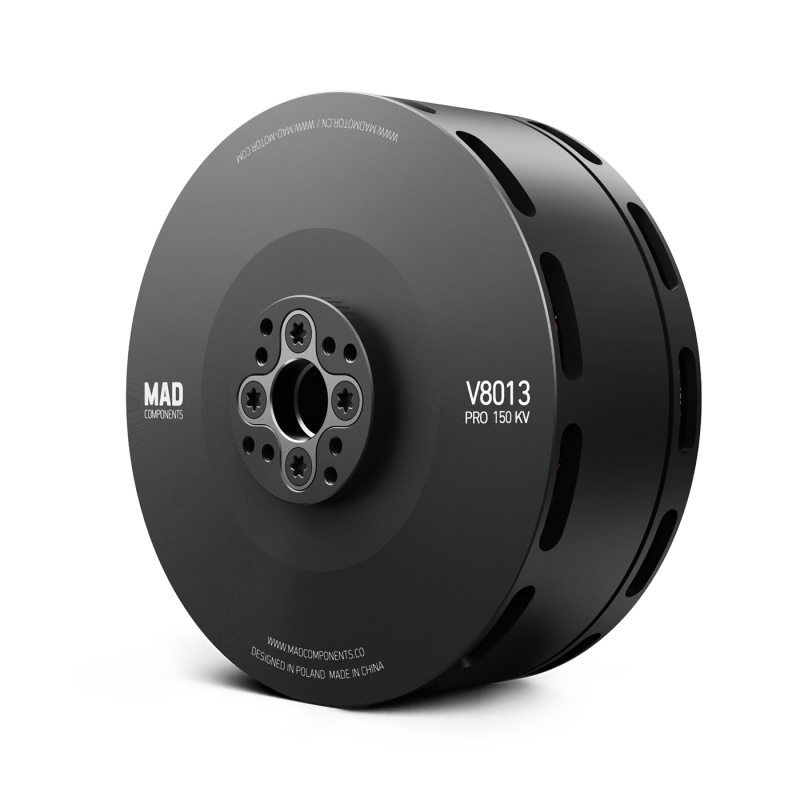

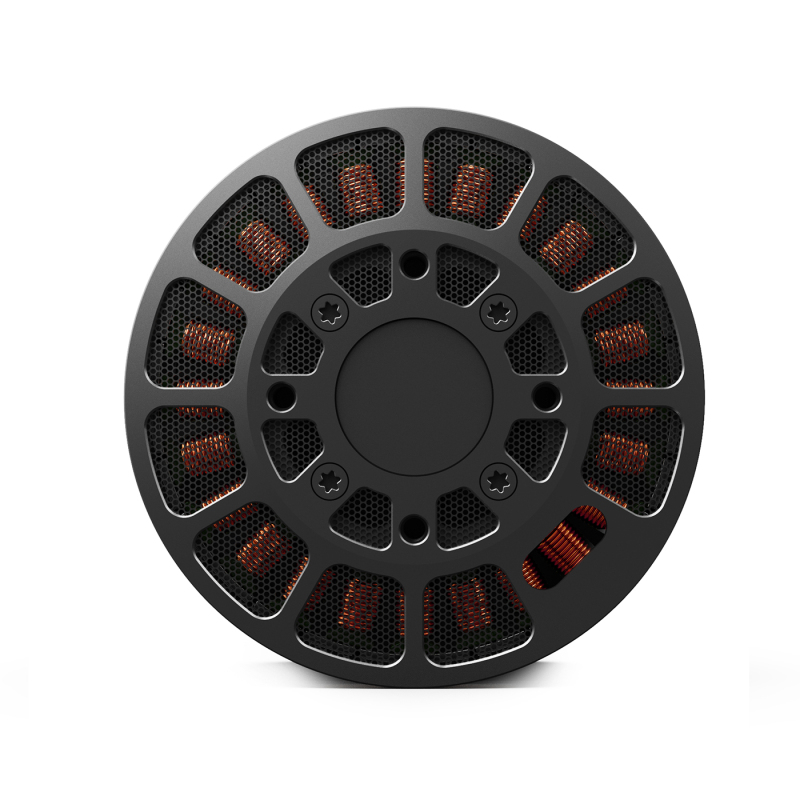

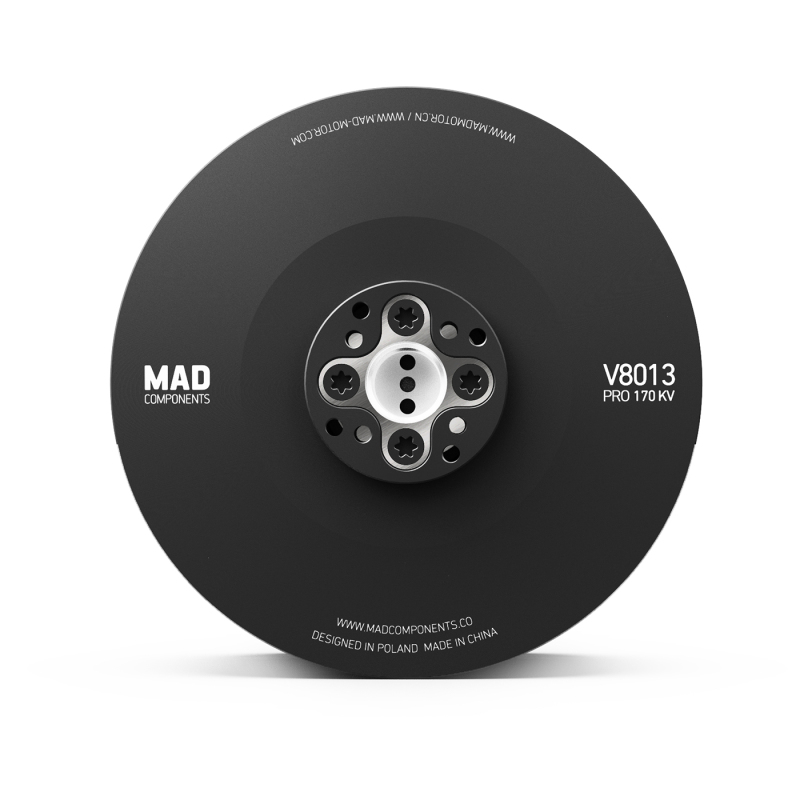

V8013 PRO IPE Feathering propeller Autocenter eVTOL Drone Motor

Name: V8013 PRO IPE Feathering propeller Autocenter eVTOL Drone Motor
Brand: MAD COMPONENTS
SKU: 0101DJ2005
Price: 279 USD
Availability: InStock

SKU: 0101DJ2005

The motor with propeller is designed to automatically return to a horizontal position relative to the wing upon shutdown, ensuring streamlined alignment.

$279.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

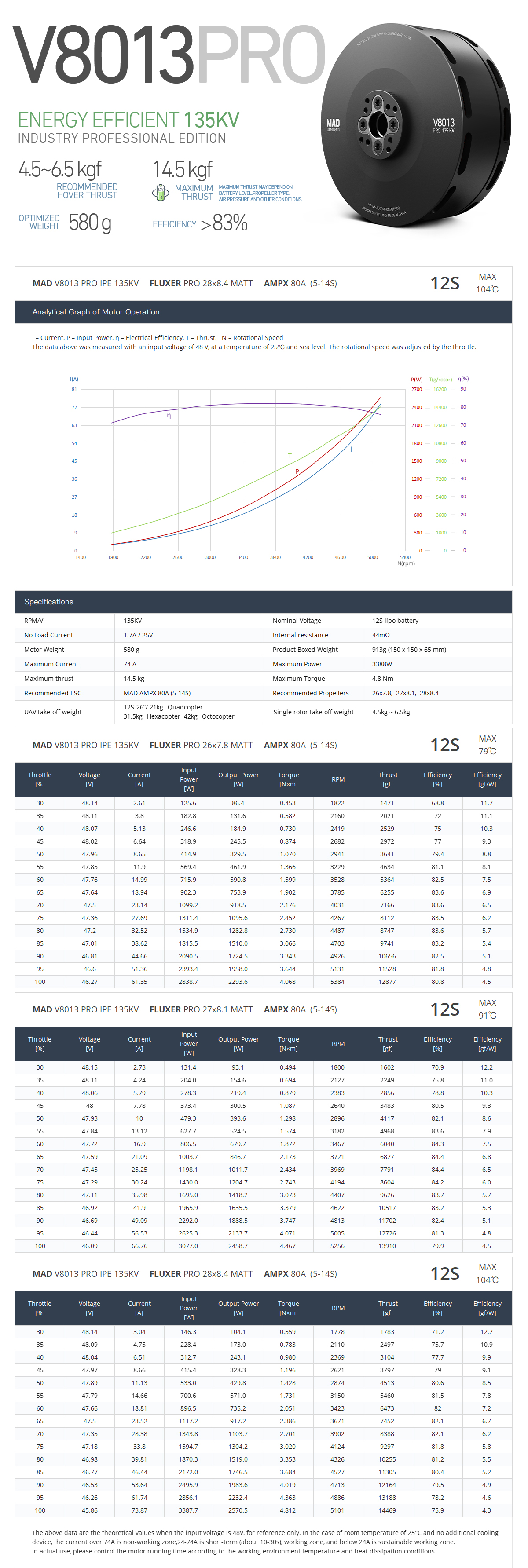

135KV

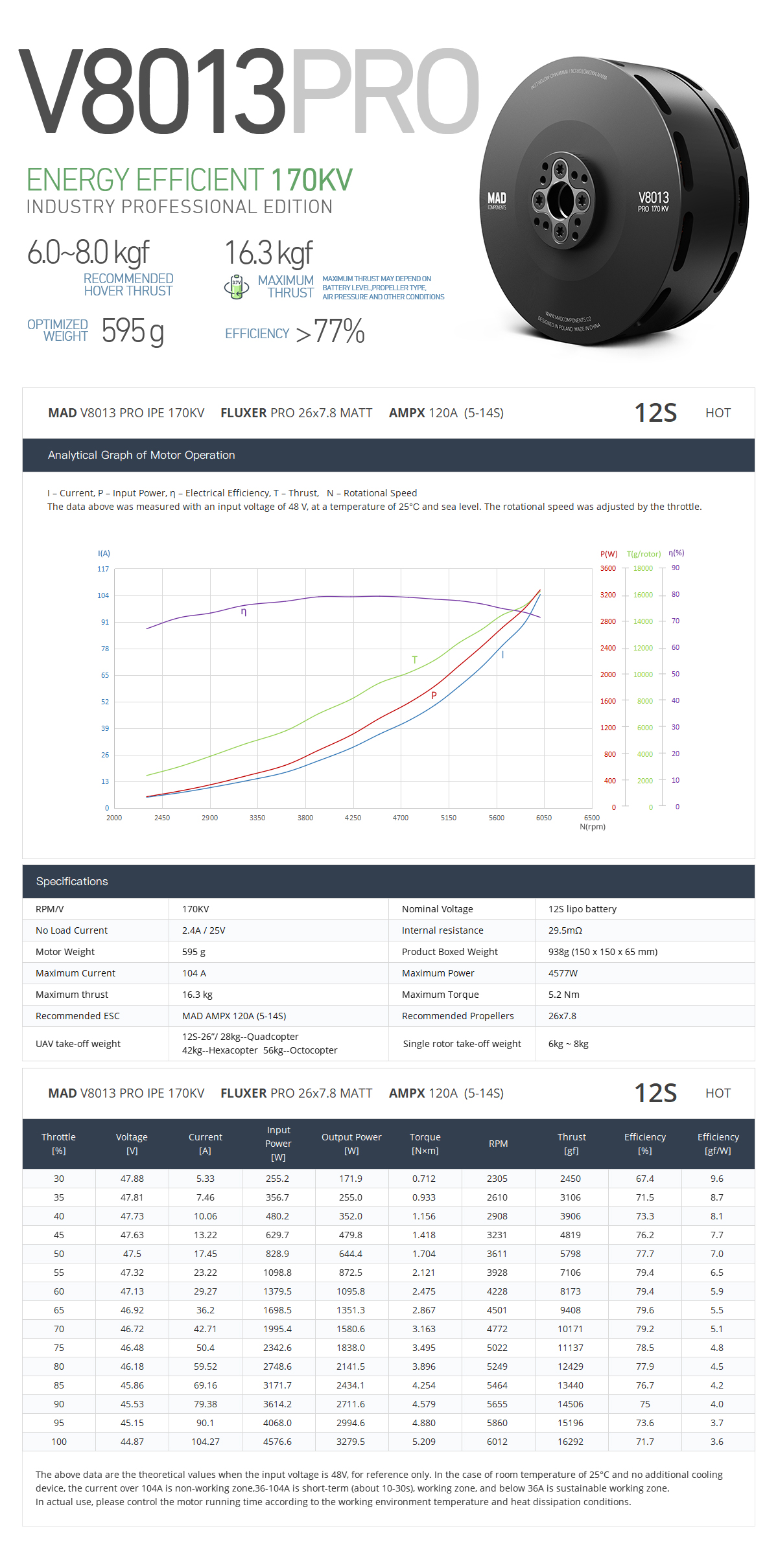

150KV
170KV

Motor Data
Motor Model	MAD V8013 PRO IPE V1.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	180°C
Motor Size	D:88.5 × 38.65 mm	Magnet Degree	150°C
Degree of Protection	IP35	Cable Length	150 mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	≤25 mg
Propeller Mounting Holes	D:20 M3×4, D:25 M3×4	Motor Balance	≤10 mg
Shaft Diameter	IN: 12 mm	Motor Mounting Holes	D:40 M4×4
Bearing	6901*2	Disruptive test	1000 V
