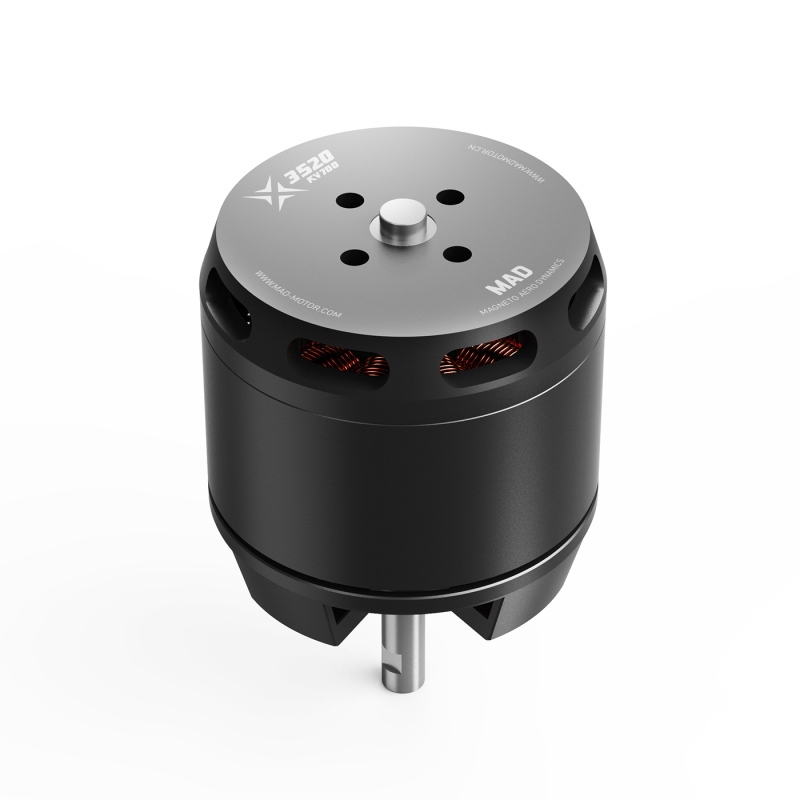

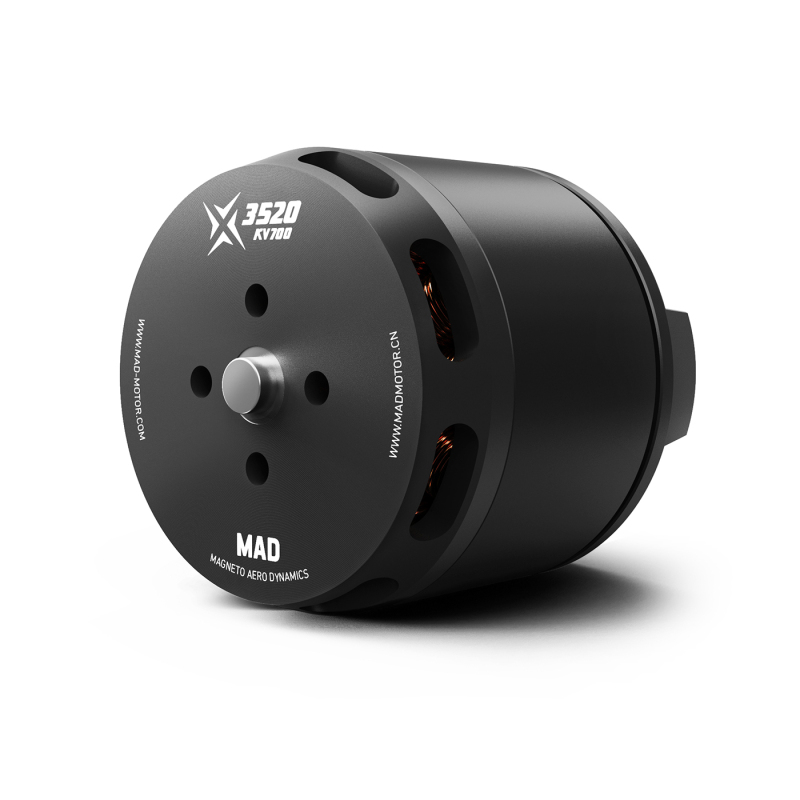

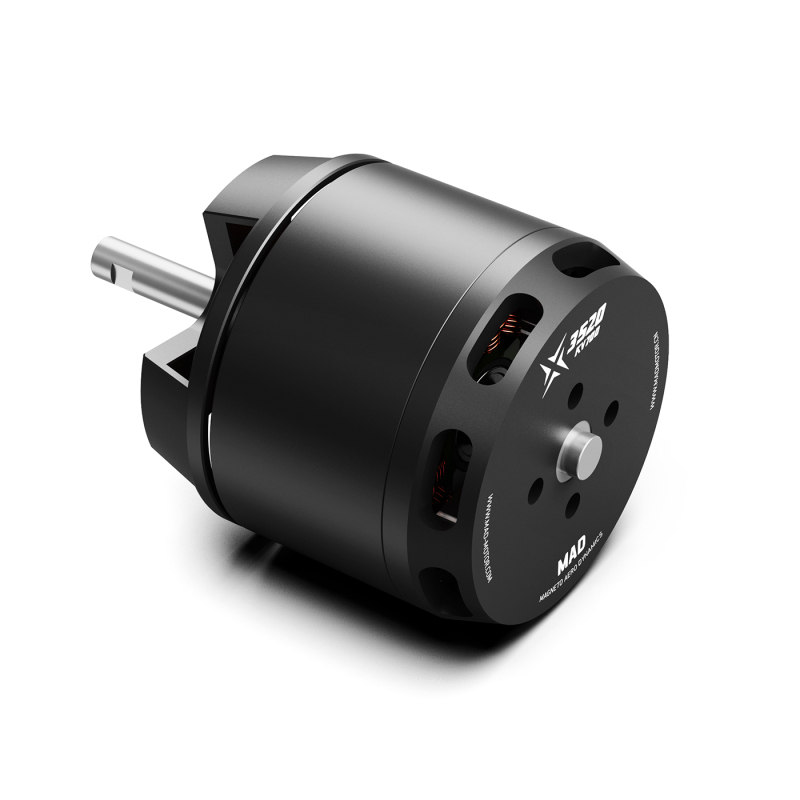

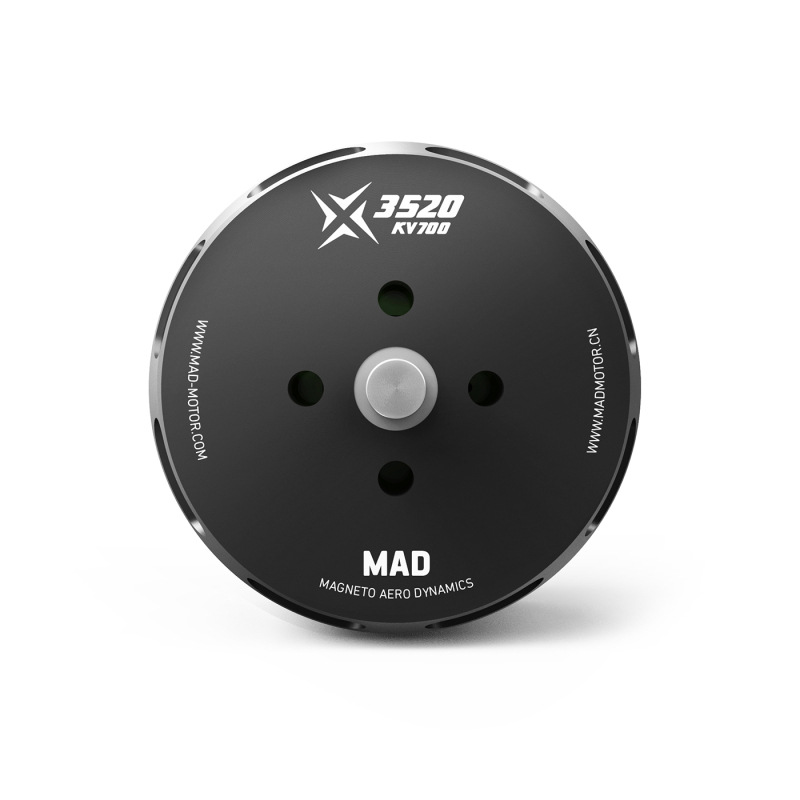

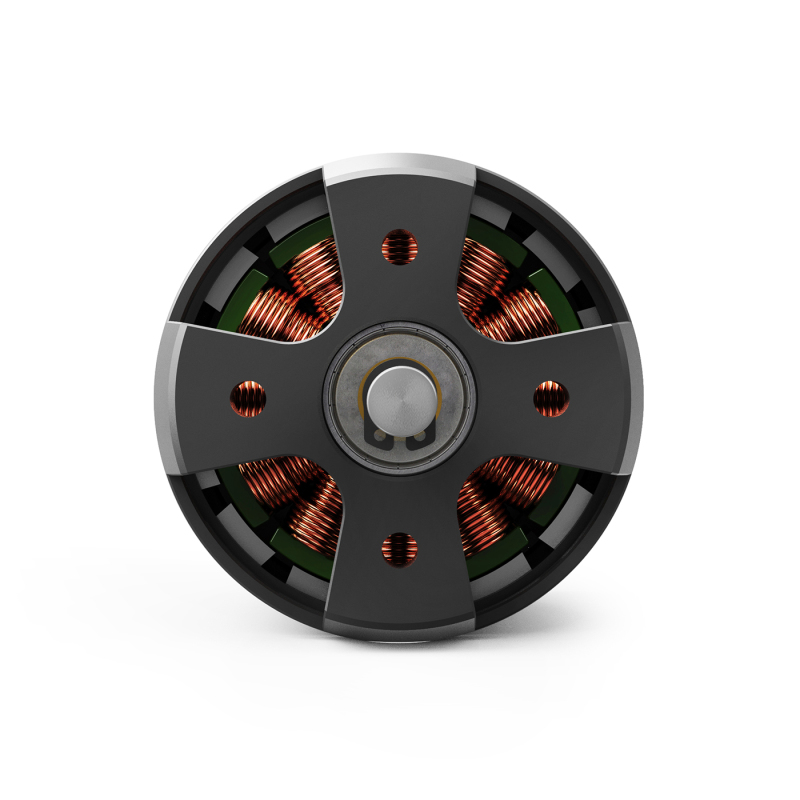

X3520 eVTOL Airplane Drone Motor
$75.00
1/1
Motor Data |
|||
| Motor Model | MAD X3520 IPE V1.0 | Number of pole pairs | 7 |
| Stator | TAIWAN / Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:43 × 65 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | enamelled wire 100 mm |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:15 M3×4 / M6 Nut | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 5 mm | Motor Mounting Holes | D:25 M3×4 / D:50 M4×4 |
| Bearing | STT 685 ZZ*2 / STT 695 ZZ*1 | Disruptive test | 500 V |
