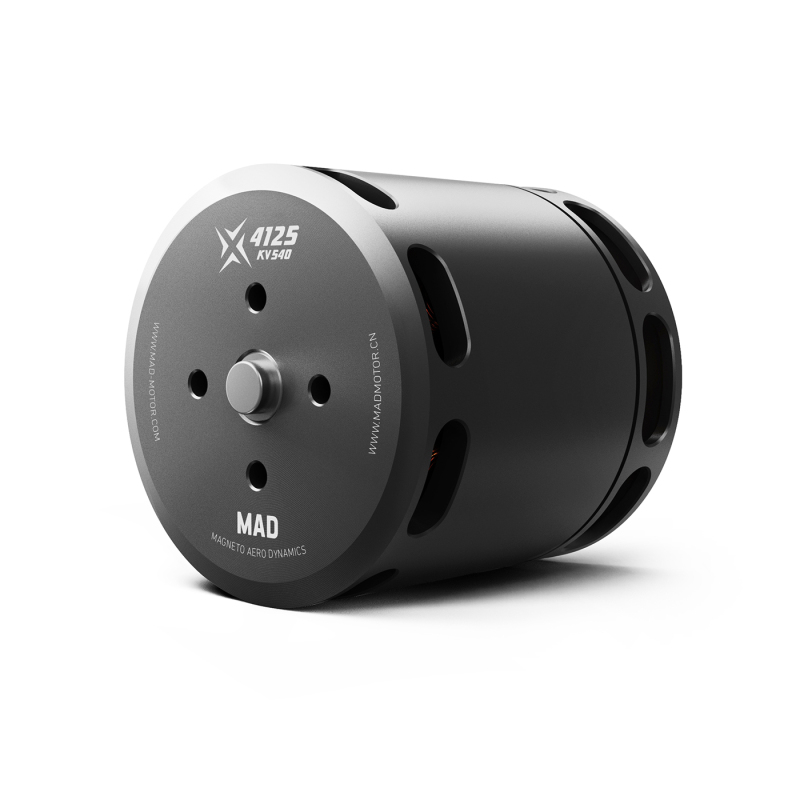

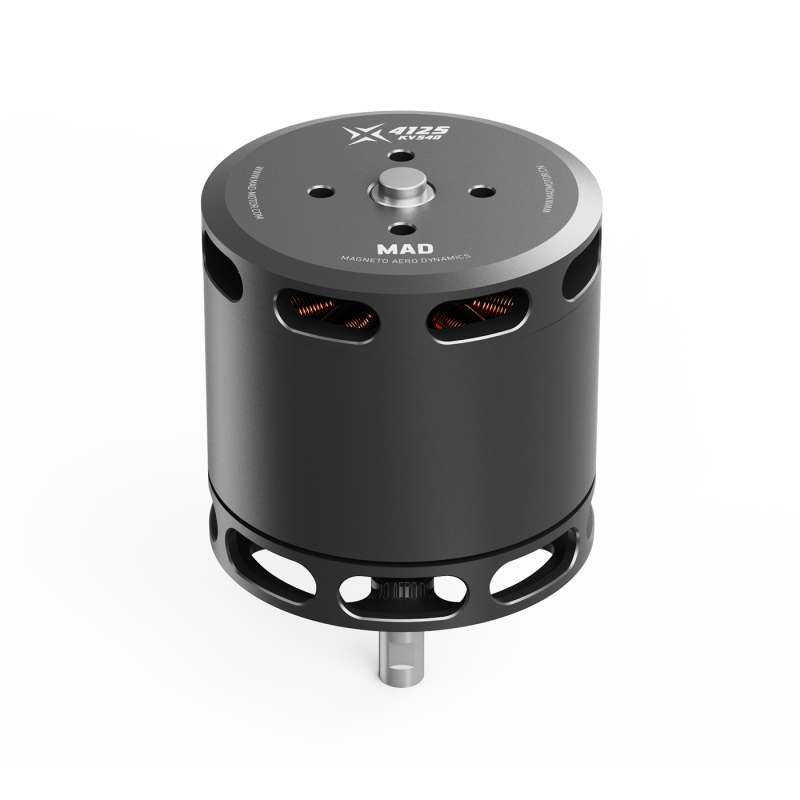

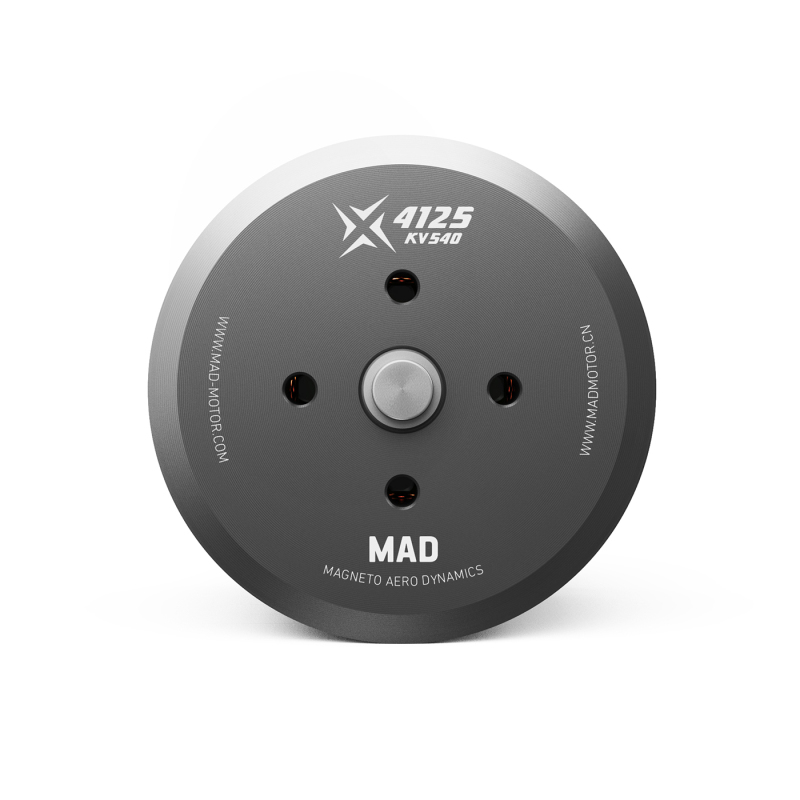

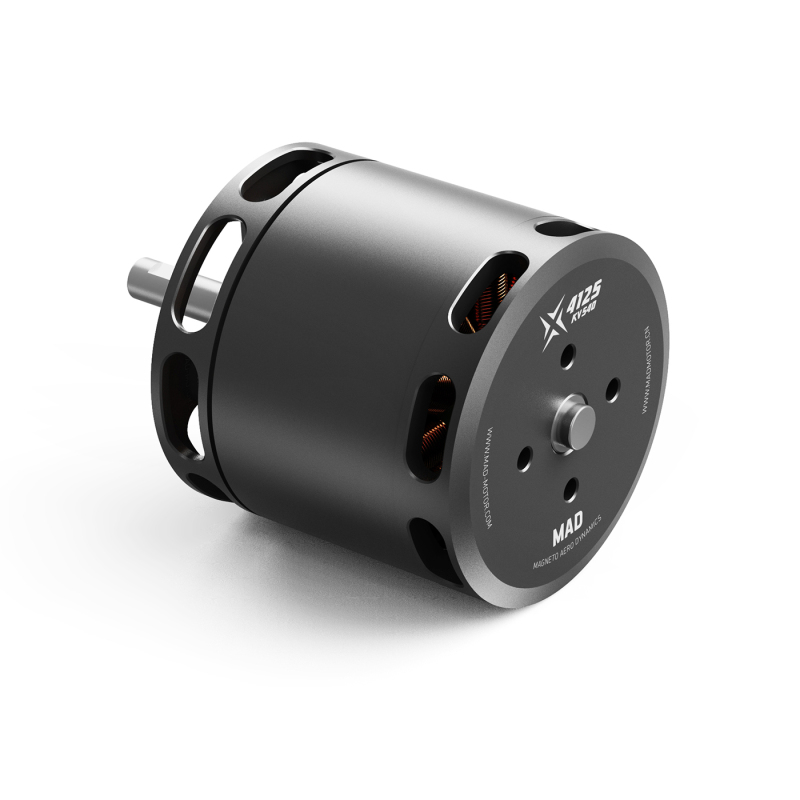

X4125 eVTOL Airplane Drone Motor

SKU: 0101DJ3016
Sustained thrust: 2~3kg
Max thrust: 7.1kg
Support voltage: 250KV/12S;  540KV/6S
Weight: 345g, 347g
$0.00 $99.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    250KV
    540KV
    Please select the information you wantX
Quantity
-
+
Download
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4120 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4120 eVTOL Airplane Drone Motor
1/1
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4125 eVTOL Airplane Drone Motor
  • X4120 eVTOL Airplane Drone Motor
  • Description
  • 250KV

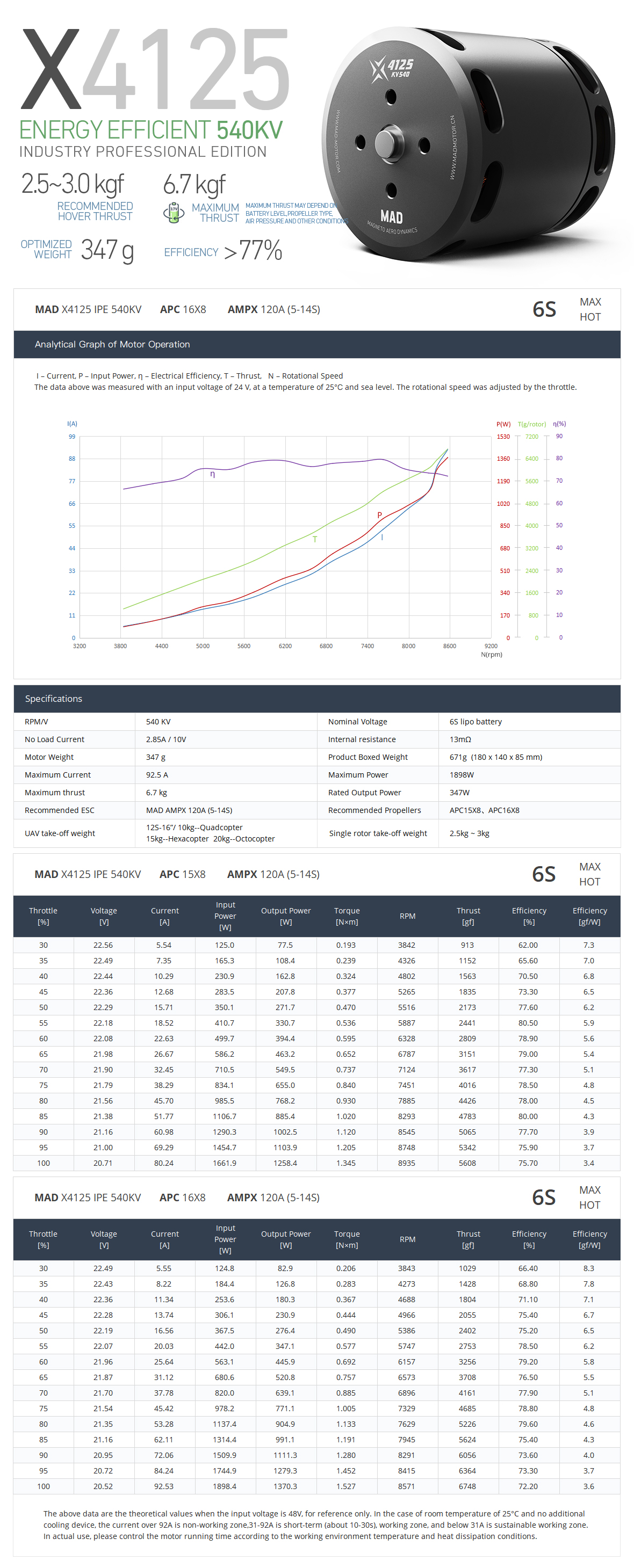

  • 540KV
Motor Data
Motor Model MAD X4125 IPE V1.0 Number of pole pairs 7
Stator
High-quality silicon steel sheets /Resistant to fluorine coating at 180℃.
Varnished wire Degree 180°C

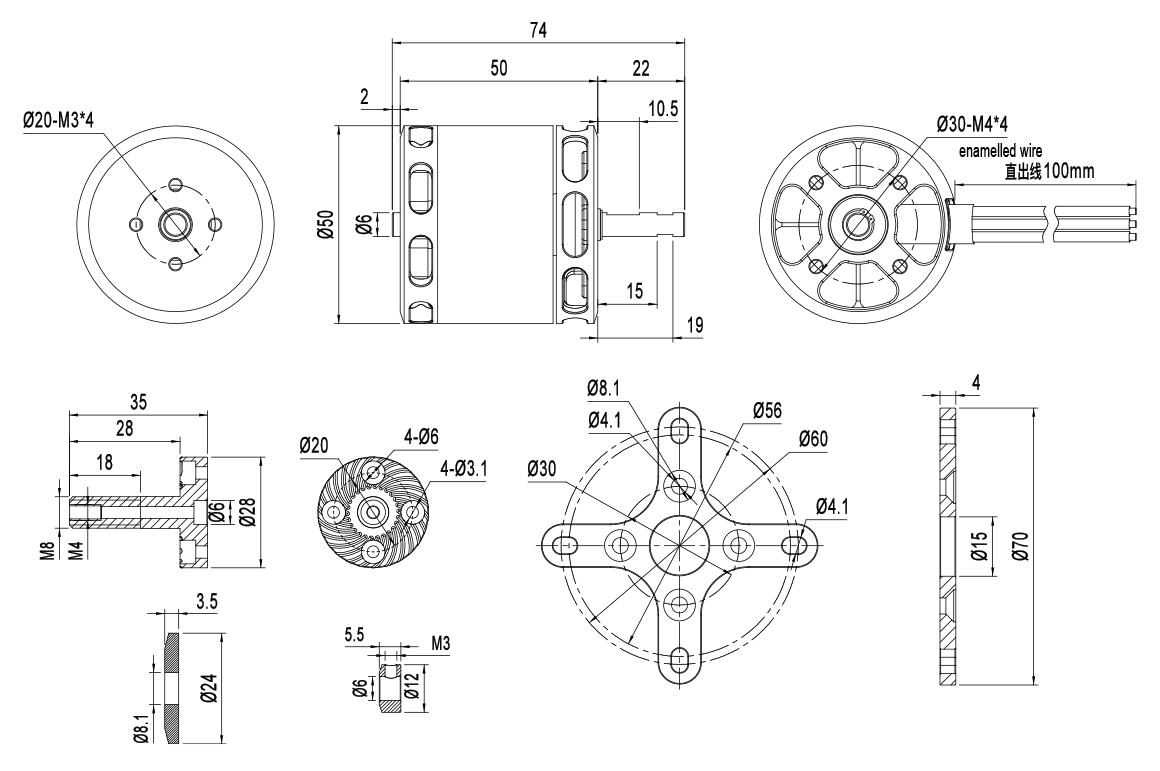

Motor Size D:50x74mm Magnet Degree 150°C
Degree of Protection IP35 Cable Length enamelled wire 100 mm
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:20 M3×4/M8 Nut Motor Balance ≤10 mg
Shaft Diameter IN: 6 mm Motor Mounting Holes D:30 M4x4 / D:56 M4x4 /D:60 M4x4
Bearing MR126 ZZ*2/ 696ZZ*1 Disruptive test 500 V

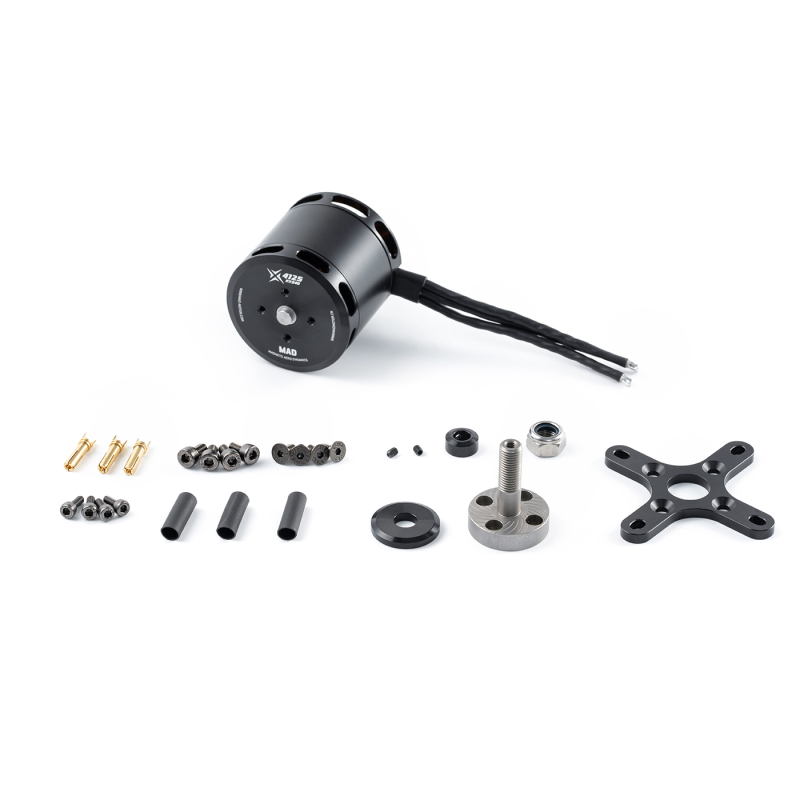

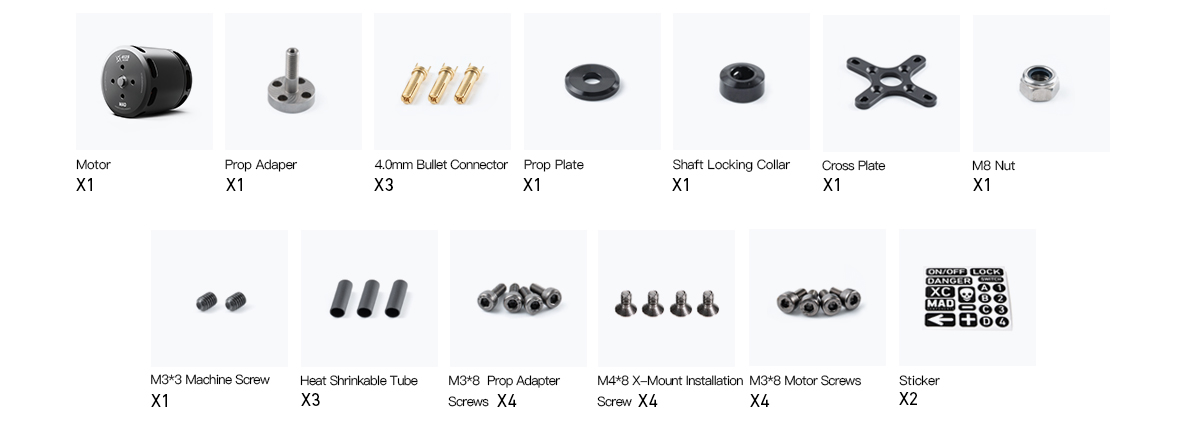

Compatible Drone Type Propeller Adapter *1, Prop Plate *1, Shaft Locking Collar, Cross Plate 1, 4.0mm Bullet Connectort3, Heat Shrinkable Tubet3,M3t8mm *4 Motor Screws, M4*mm *4 Mount Screws, M4*mm *4 Machine Screw, M8 Propeller Seat Nut, Sticker*2
