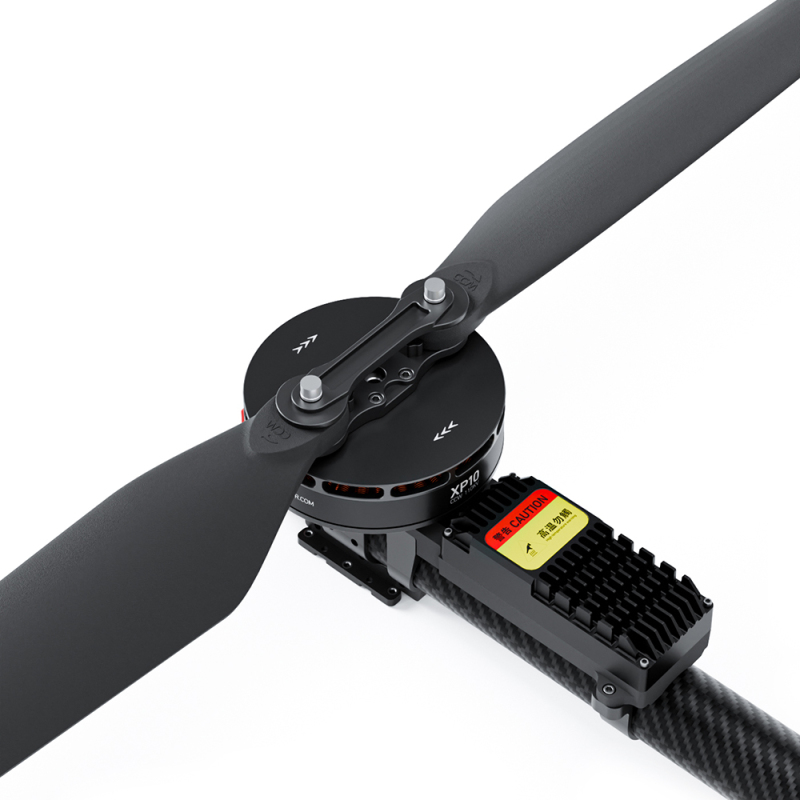

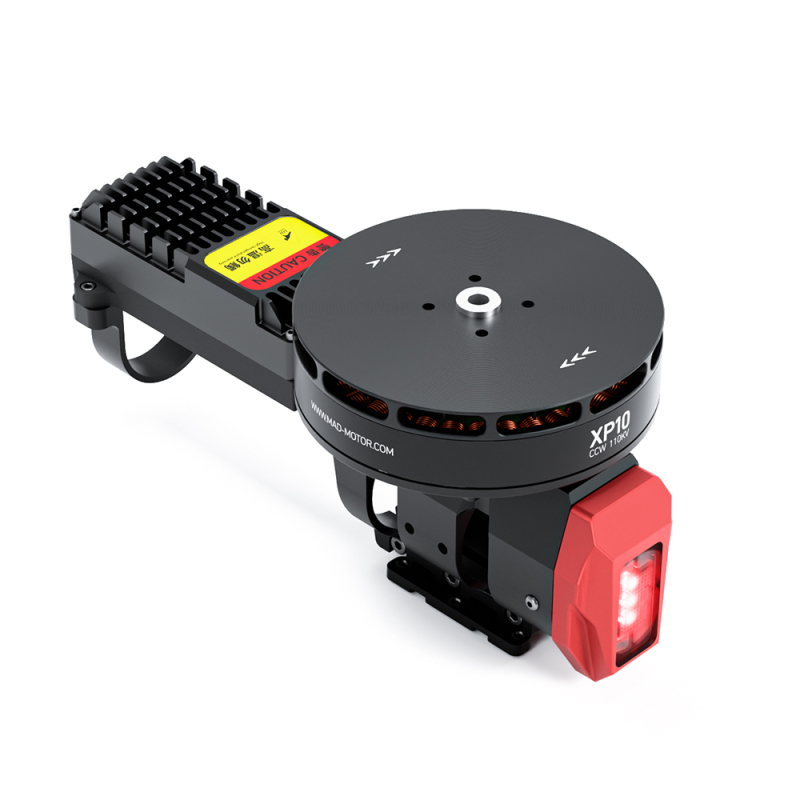

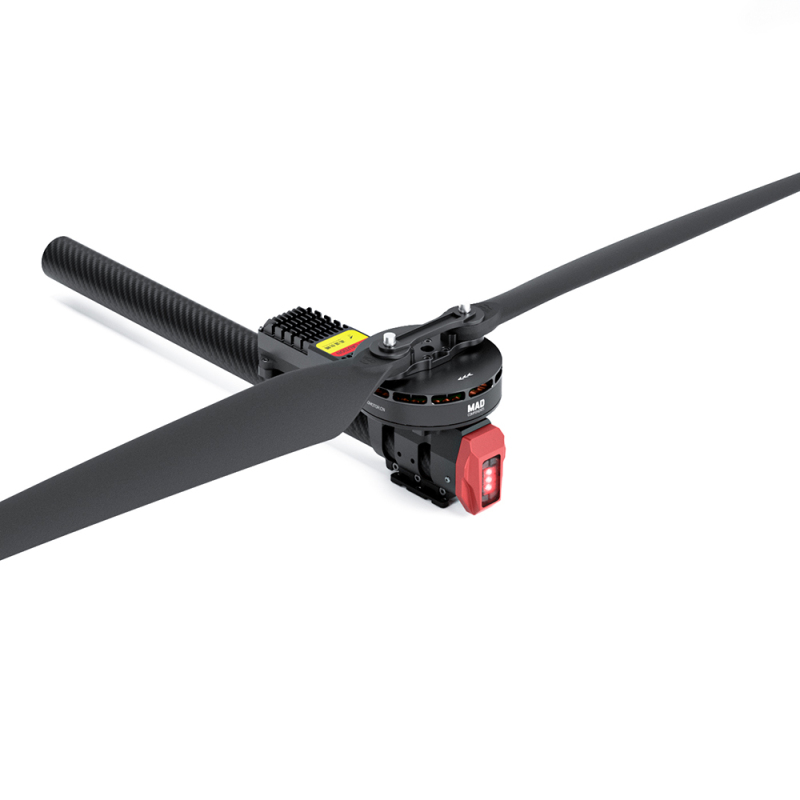

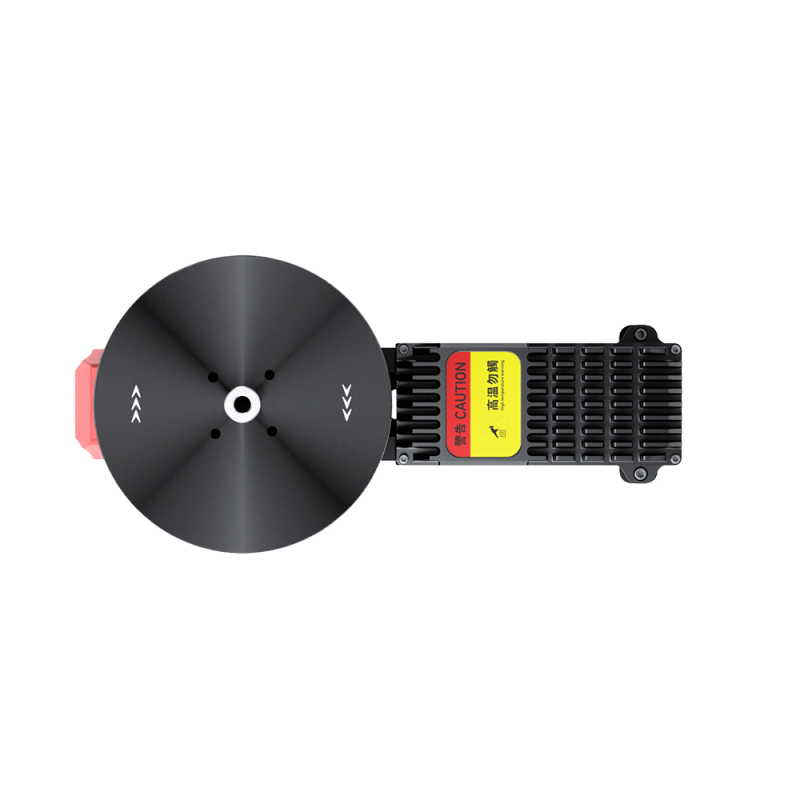

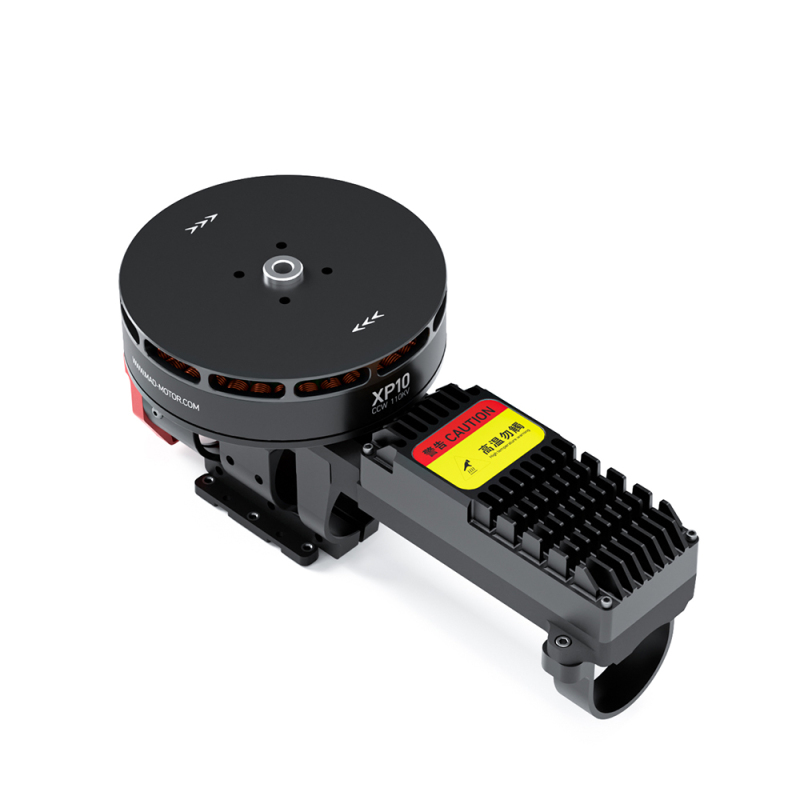

XP10 Drone Arm Set

SKU: 0119XP0007

Features modular design for easy maintenance and upgrades, FOC ESC control for superior efficiency, and IPX6 waterproofing for durability in harsh conditions.

  • Rigorously tested to ensure long-term reliability in demanding operations
  • IP Rating:ipx6
    Total weight:1604g+10
    Maximum thrust: 22kg
    Recommended sustained thrust: 7-11KG
    Built-in high brightness LED night light.
$0.00 $249.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Value:
    110KV
  • Rotation direction:
    CW
    CCW
  • PROPELLER:
    Without Propeller
    With 36*12 Propeller
  • Communication Type:
    Serial Port
    CAN
    Please select the information you wantX
Quantity
-
+
Download
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
1/1
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • XP10 DrSetone Arm
  • Description
  • FAQ

The SERIAL PORT PROTOCOL:

the serial port protocol mainly transmits real-time data from the electronic speed controller (ESC) to the flight controller, handles ESC firmware updates, and has no other functions.

CAN:

CAN communication transmits real-time data from the electronic speed controller (ESC) to the flight controller. Additionally, the flight controller can control the ESC using CAN throttle. The CAN version of the ESC supports dual redundancy control via both PWM and CAN throttle.

The real-time data includes output input throttle (PWM) control signals, motor speed, ESC voltage, ESC current (input current and phase current), ESC temperature, and ESC capacitor temperature.
