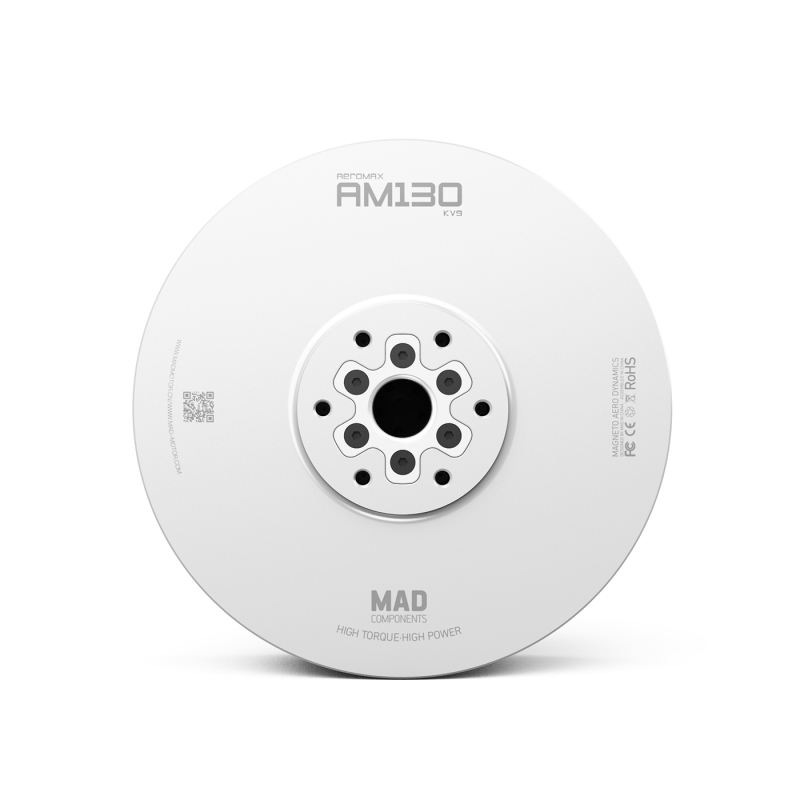

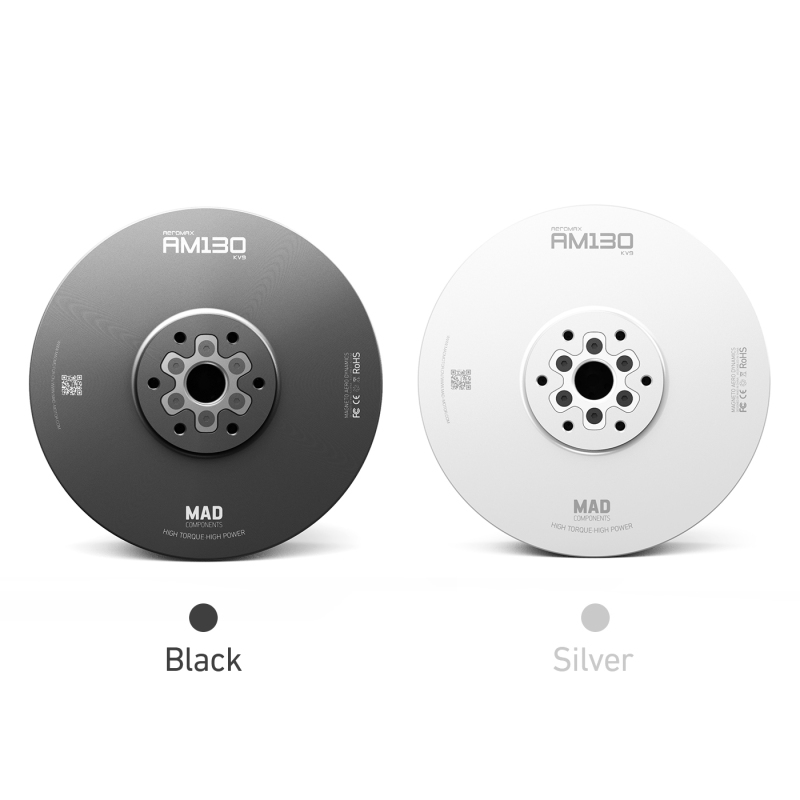

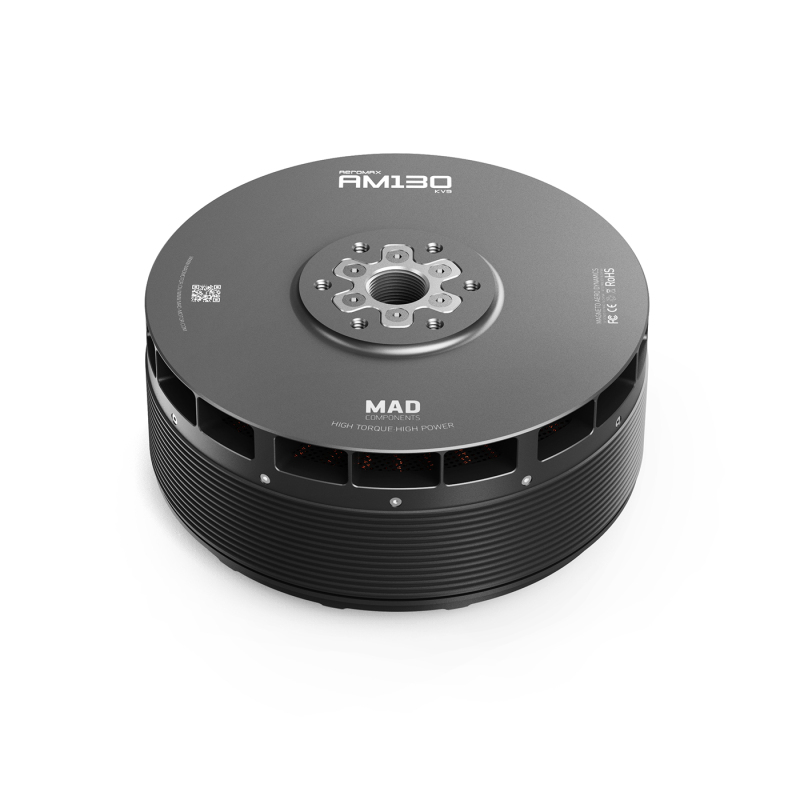

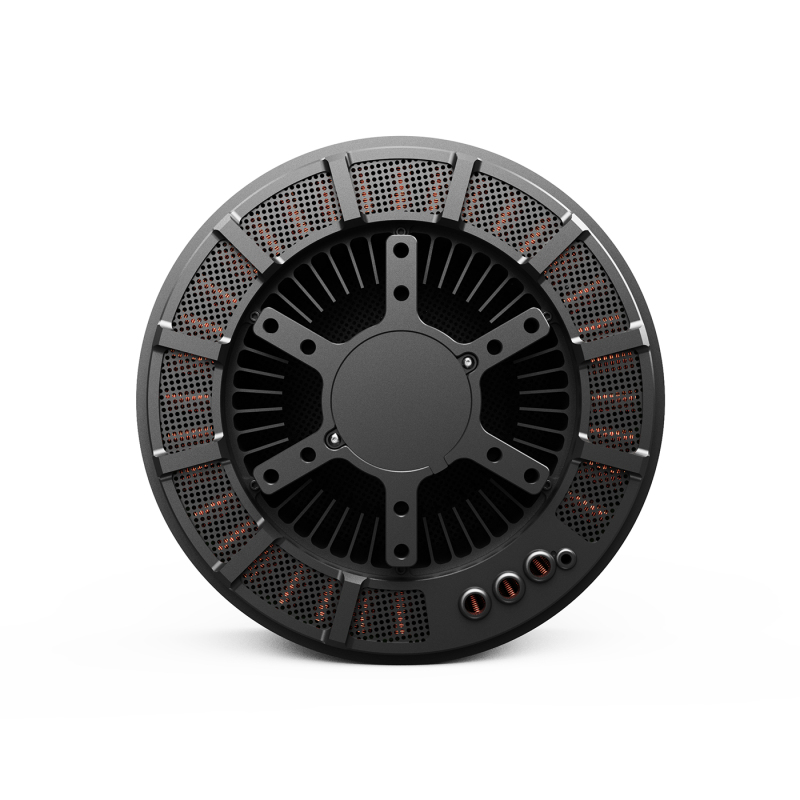

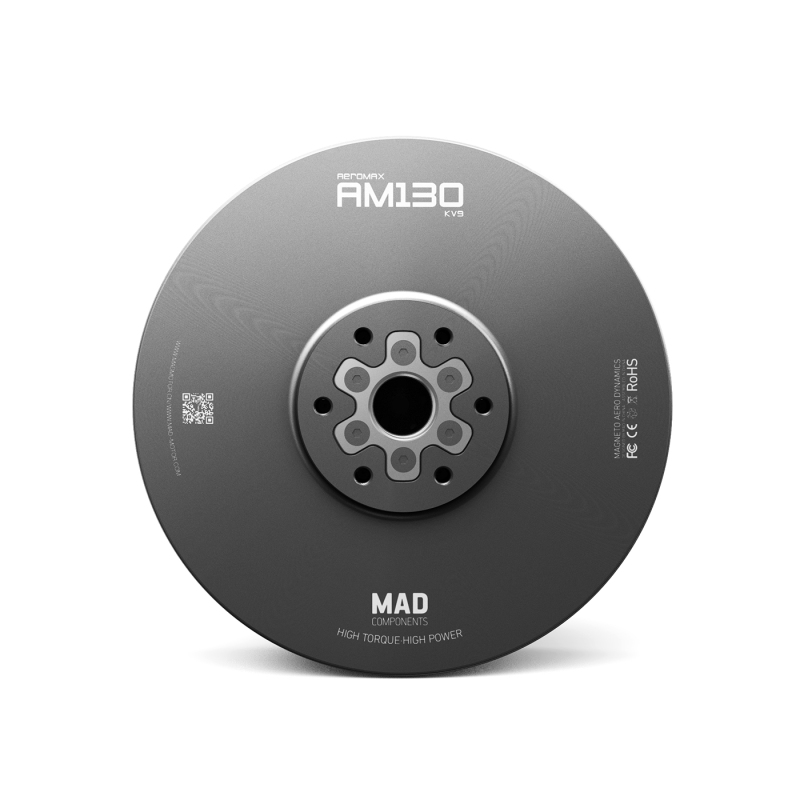

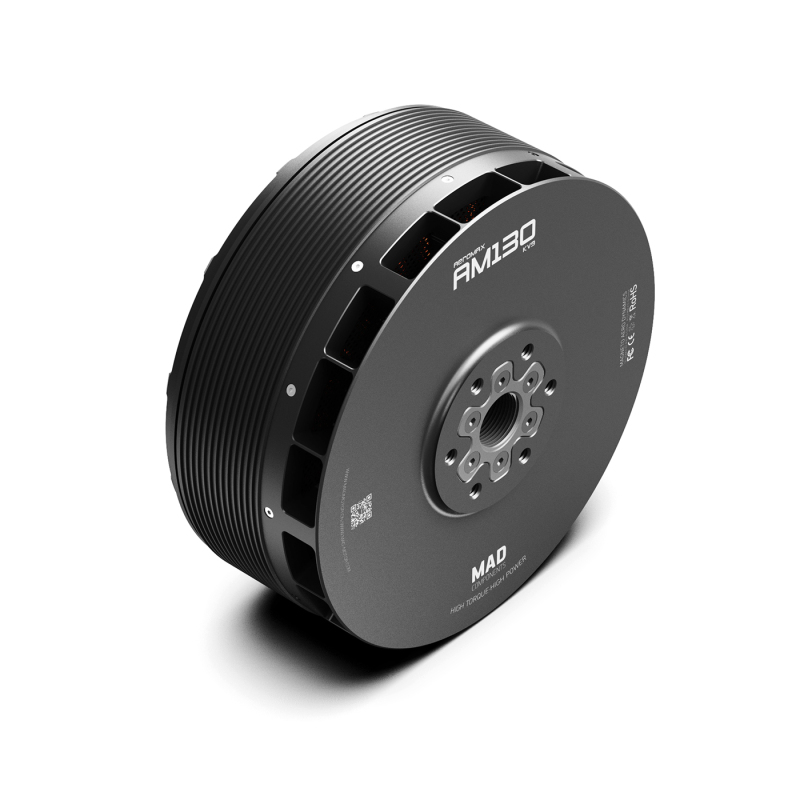

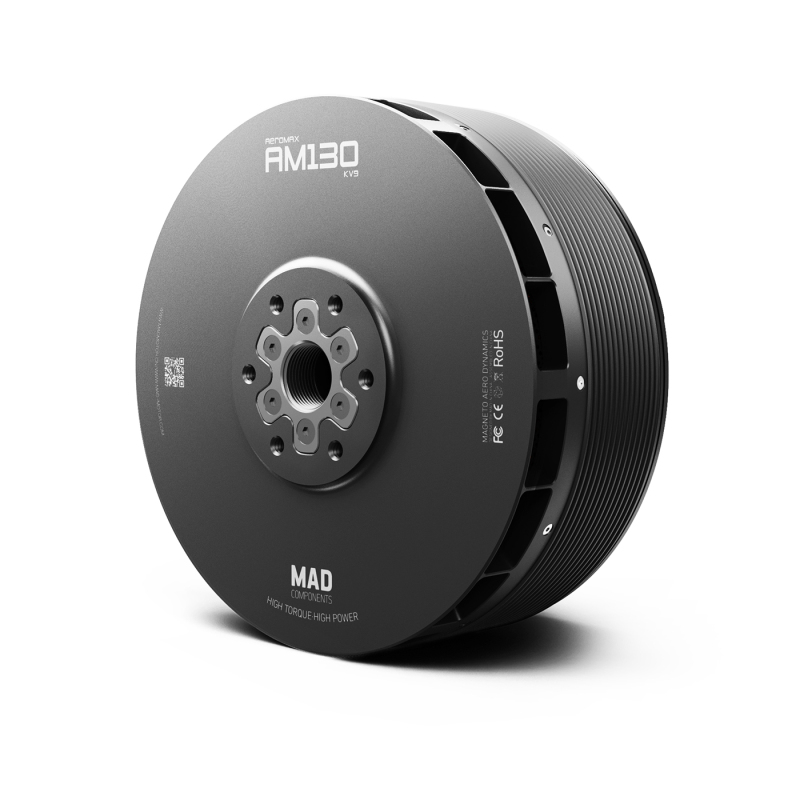

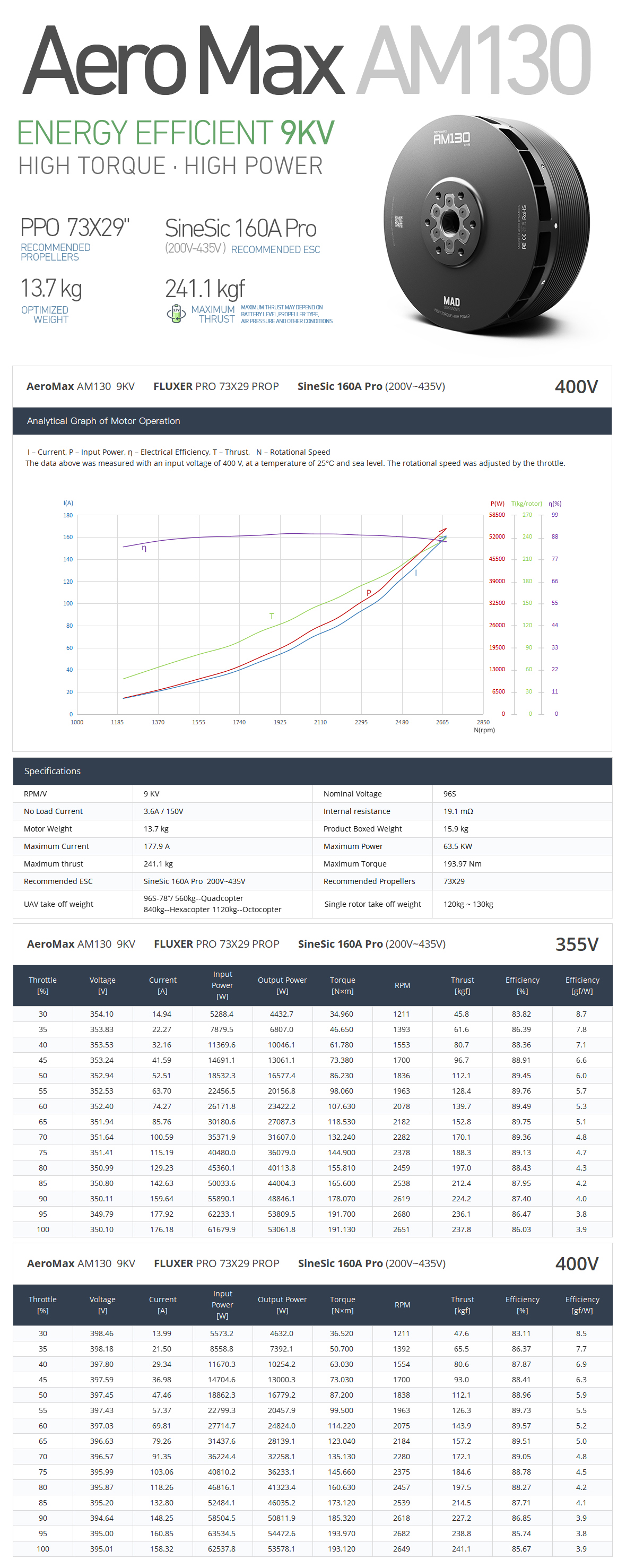

AM130 Heavy-Lift Drone Motor 9KV
$4,285.00
1/1
| Motor Data | |||||||||
| Motor Model | MAD AeroMax AM130 V1.0 | Number of pole pairs | 21 | ||||||
| Stator | Anticorrosive | Varnished wire Degree | 220°C | ||||||

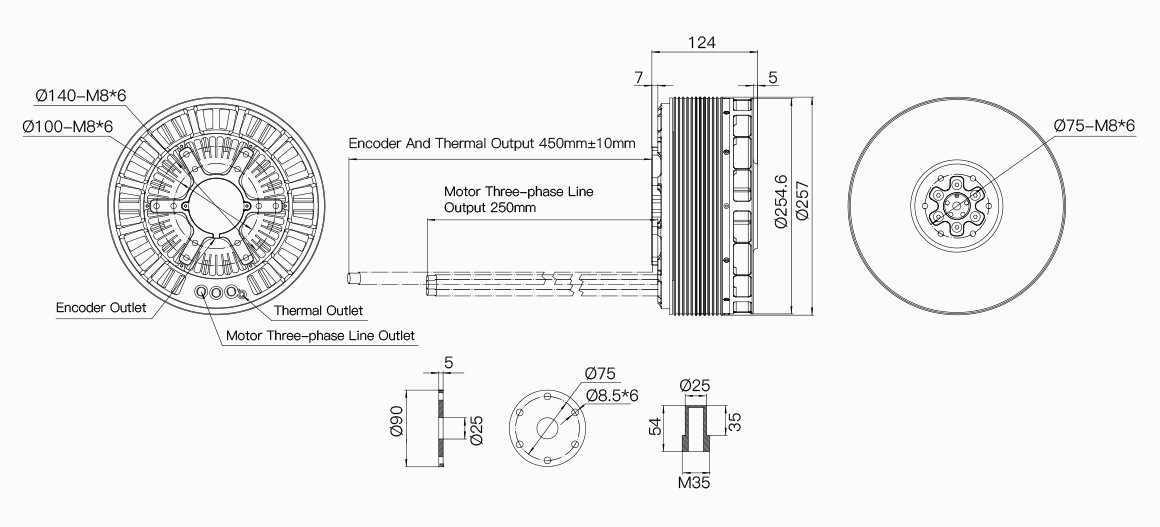

| Motor Size | D: 257 X 124 mm | Magnet Degree | 180°C | ||||||
| Degree of Protection | IP45 | Cable Length | 250 mm (extended Enameled wires） | ||||||
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤20 mg | ||||||
| Propeller Mounting Holes | D:75 M8×6 | Motor Balance | ≤30 mg | ||||||
| Shaft Diameter | IN: 35 mm | Motor Mounting Holes | D:100 M8*6 D140 M8*6 | ||||||
| Bearing | SKF 6007 ZZ*2 | Disruptive test | 1000 V | ||||||
