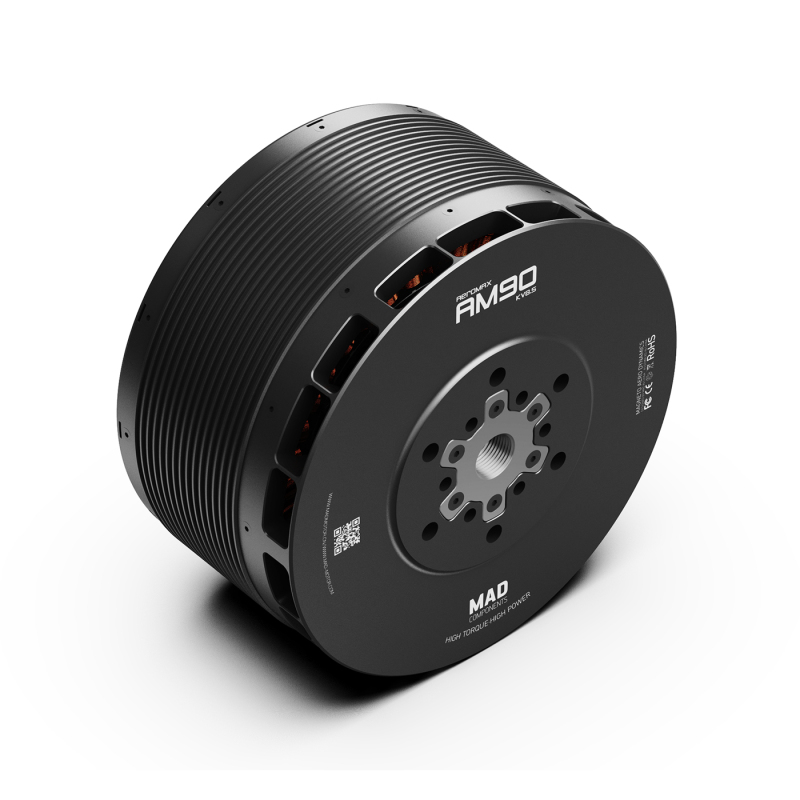

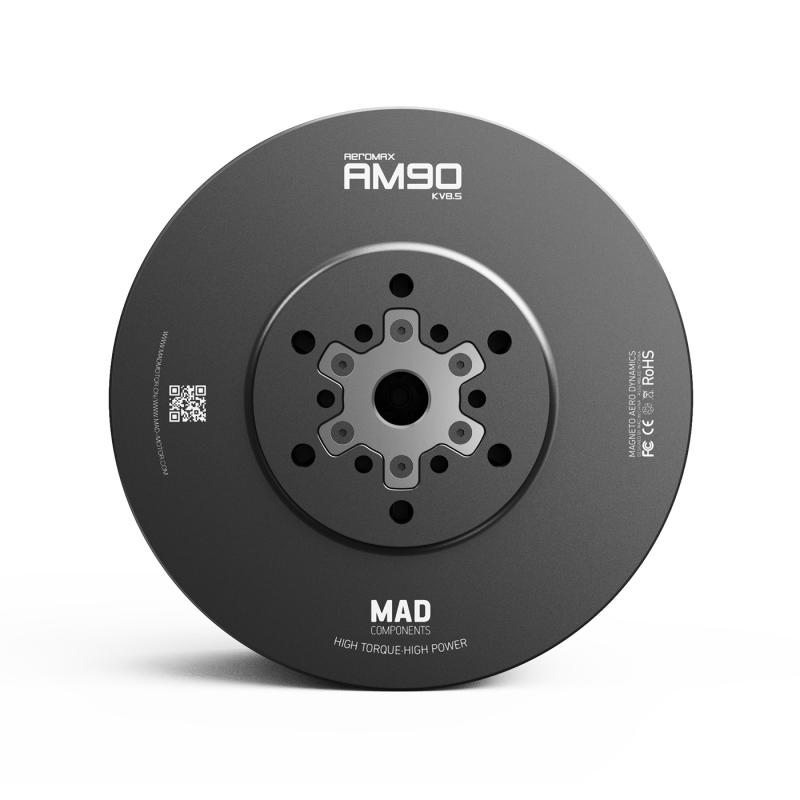

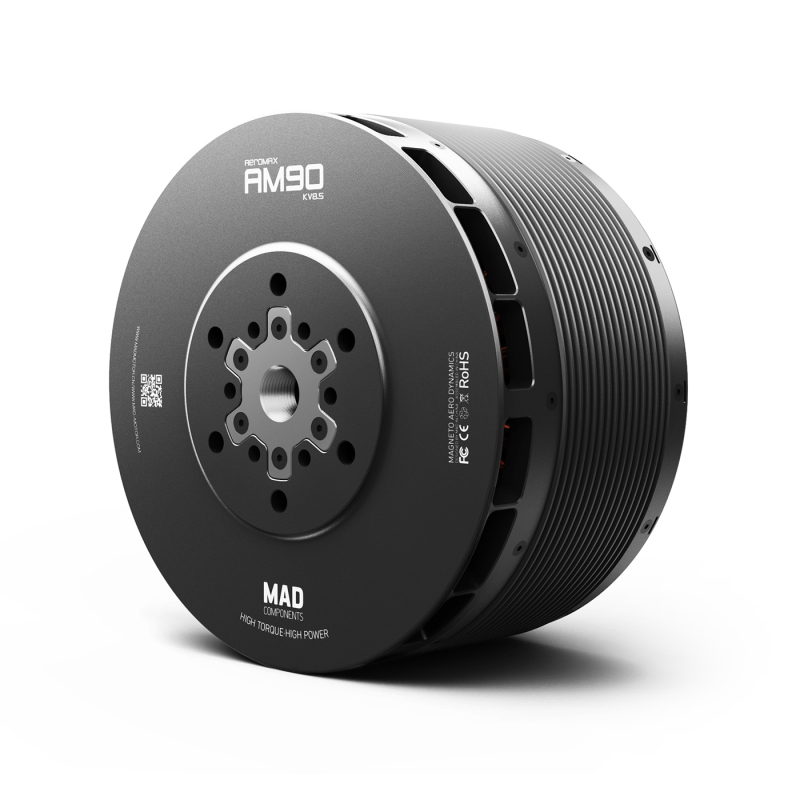

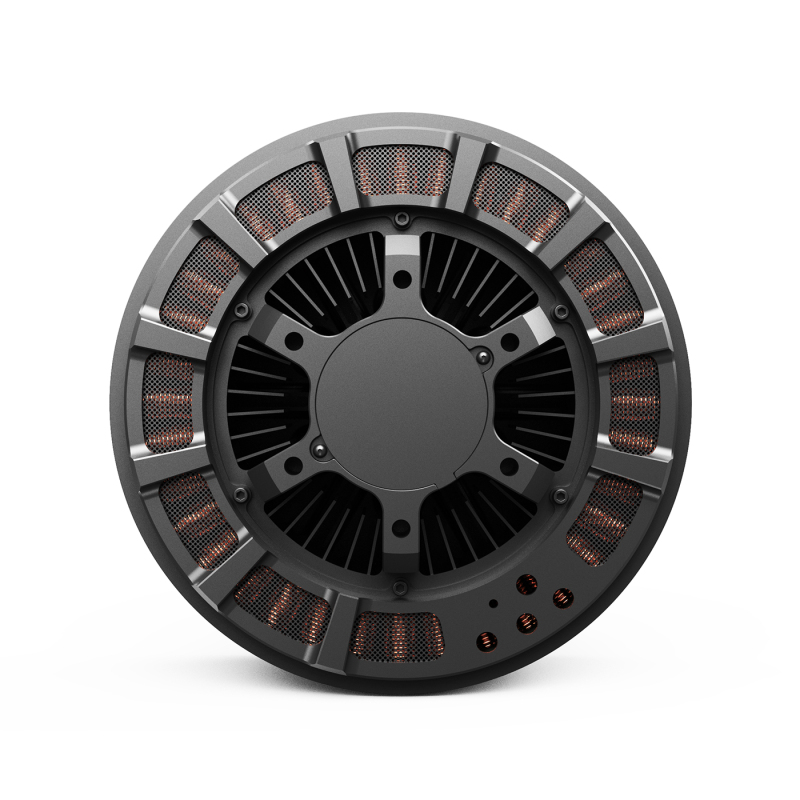

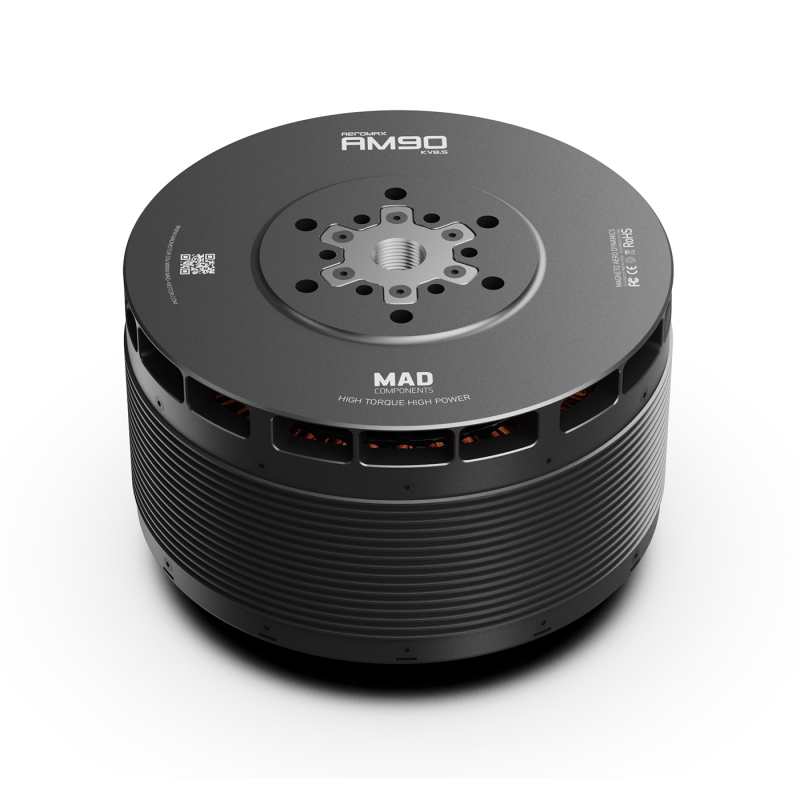

AM90 Heavy-Lift Drone Motor

SKU:
  1. Maximizing thrust-to-weight ratio
    Rated Thrust: 85-95 Kgf| Peak Thrust: 178Kgf
    Ultra-Lightweight Design: 9.4Kg

  2.  Motor Only Purchase:
    A:Includes a temperature sensor (PT1000).
    B:With an encoder cable+ temperature  sensor PT1000
  3. Power System Kit Purchase:
    kit A:without lock propeller function  Kit includes:1× ESC (standard firmware) 1× CW or CCW propeller
    kit B:Motor features a magnetic encoder to detect and lock the propeller at a specified stop position (requires compatible ESC firmware).
    Kit includes:1× ESC (with required firmware) 1× CW or CCW propeller
$0.00 $3,715.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    8.5KV
  • Version:
    Motor A
    Motor B
    Power System Kit A CW(72x31)
    Power System A CCW(72x31)
    Power System B CW(72x31)
    Power System B CCW(72x31)
    Power System Kit A CW(72x25)
    Power System Kit A CCW(72x25)
    Power System Kit B CW(72x25)
    Power System Kit B CCW(72x25)

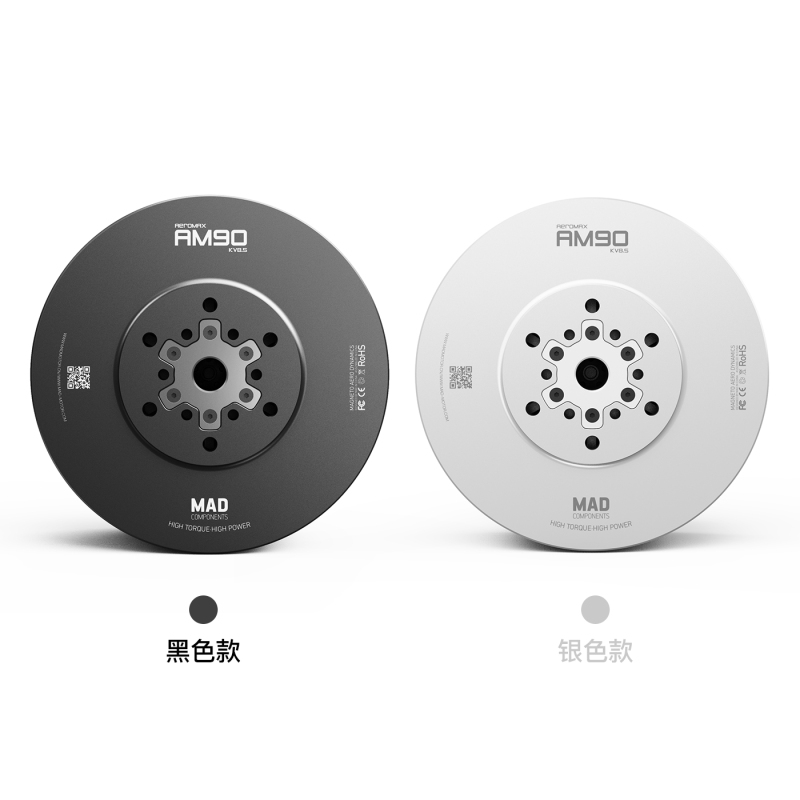

  • Color:
    Black
    Black

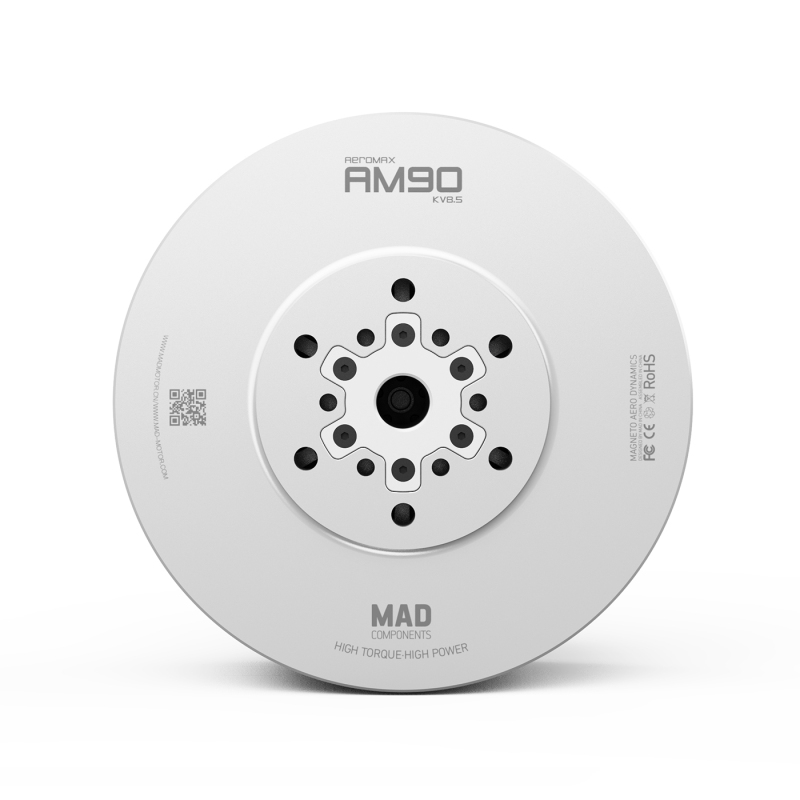

    White
    White
    Please select the information you wantX
Quantity
-
+
Download
  • AM90 Drone Motor
  • AM90 Heavy-Lift Drone Motor
  • AM90 Drone Motor
  • AM90 Drone Motor
  • AM90 Drone Motor
  • AM90 Drone Motor
  • AM90 Heavy-Lift Drone Motor
  • AM90 Drone Motor
  • AM90 Heavy-Lift Drone Motor
  • AM90 Drone Motor
  • AM90 Drone Motor
  • AM90 Drone Motor
  • AM90 Drone Motor
  • AM90 Heavy-Lift Drone Motor
1/1
  • AM90 Drone Motor
  • AM90 Heavy-Lift Drone Motor
  • AM90 Drone Motor
  • AM90 Drone Motor
  • AM90 Drone Motor
  • AM90 Drone Motor
  • AM90 Heavy-Lift Drone Motor
  • Description
  • 8.5KV

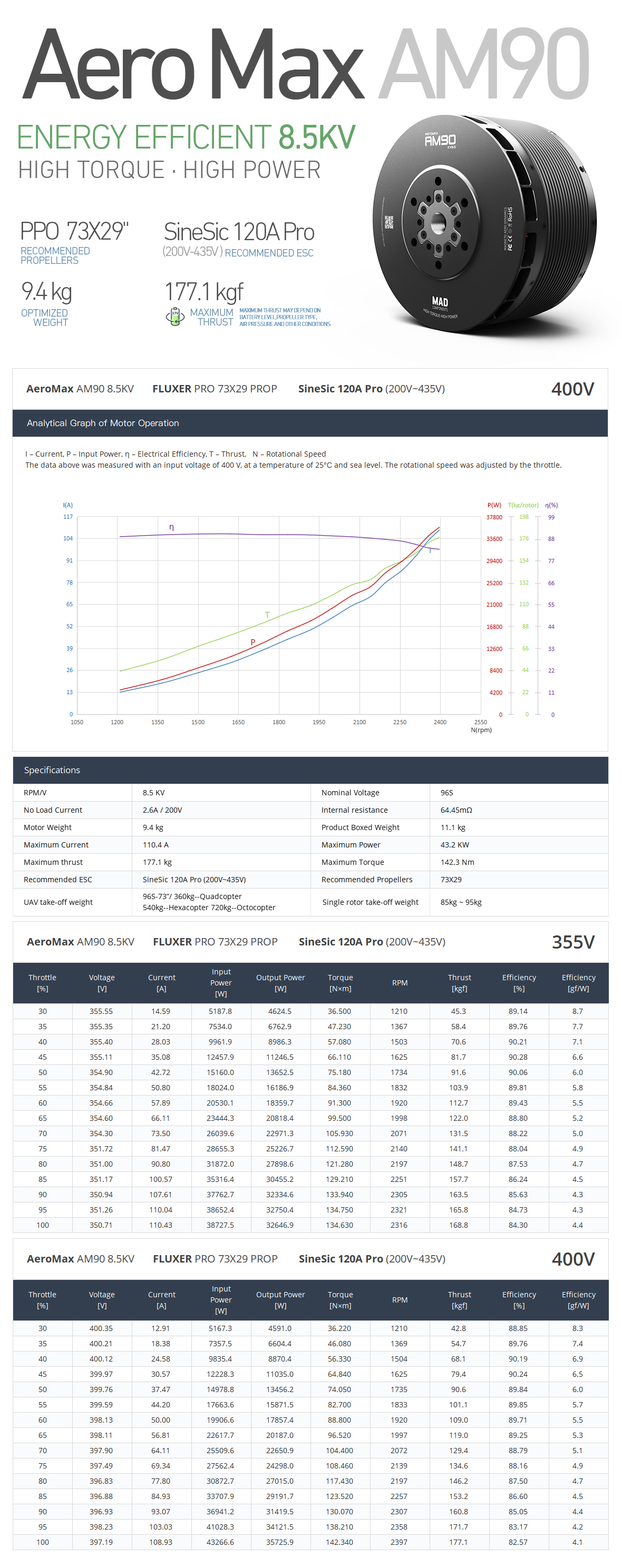

Motor Data
Motor Model MAD AeroMax AM90 V1.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 220°C

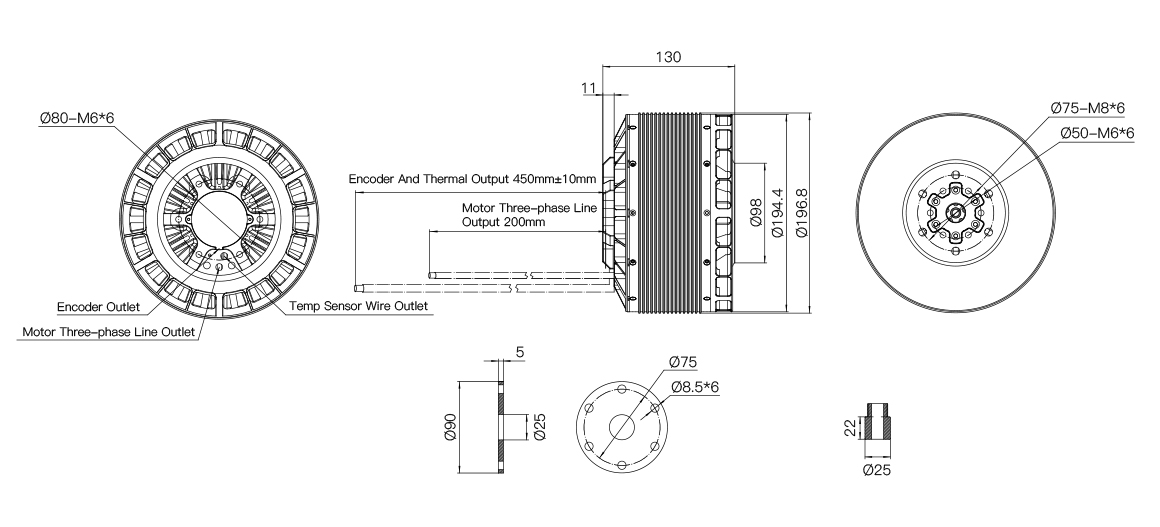

Motor Size D: 196.8 X 130 mm Magnet Degree 180°C
Degree of Protection IP45 Cable Length 200 mm (extended Enameled wires
Centrifugal Heat Dissipation YES Rotor Balance ≤20 mg
Propeller Mounting Holes D:75 M8×6  D:50 M6X6 Motor Balance ≤30 mg
Shaft Diameter IN: 25 mm Motor Mounting Holes D:80 M6×6
Bearing NSK 6205 ZZ *2  NSK 61822 ZZ *1 Disruptive test 1500 V
