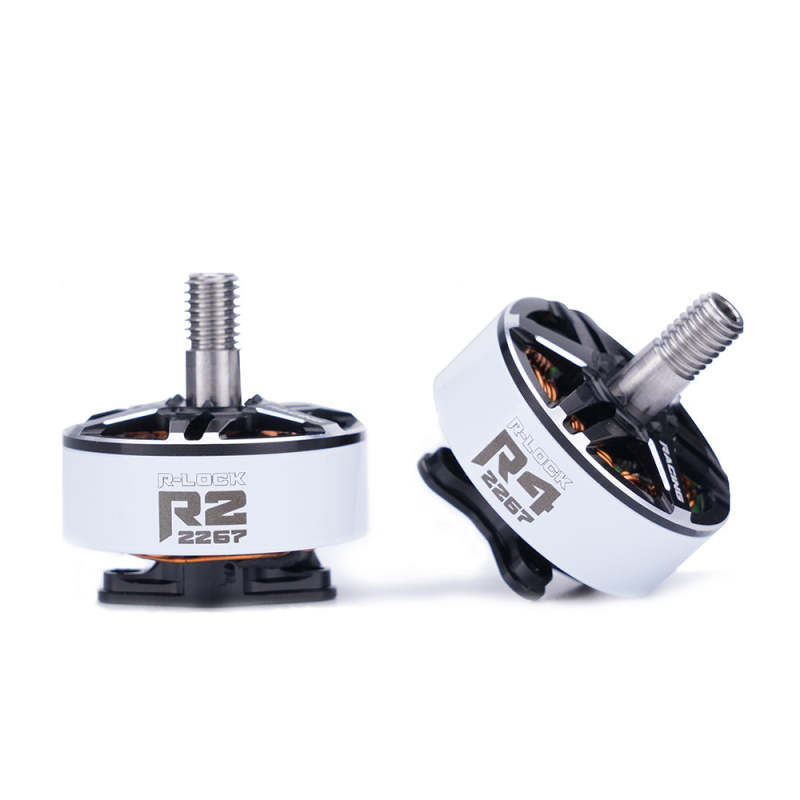

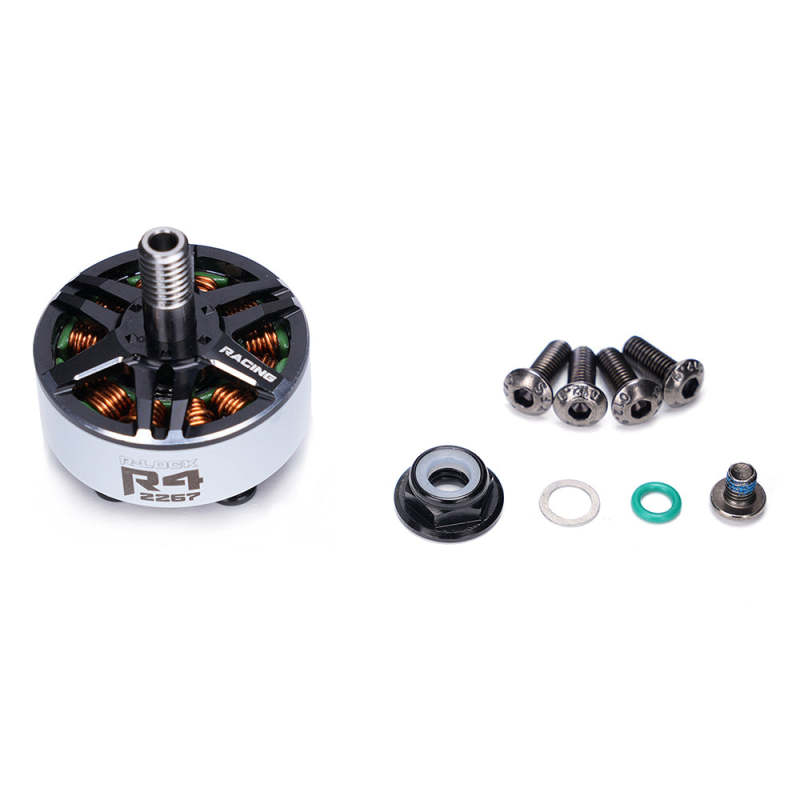

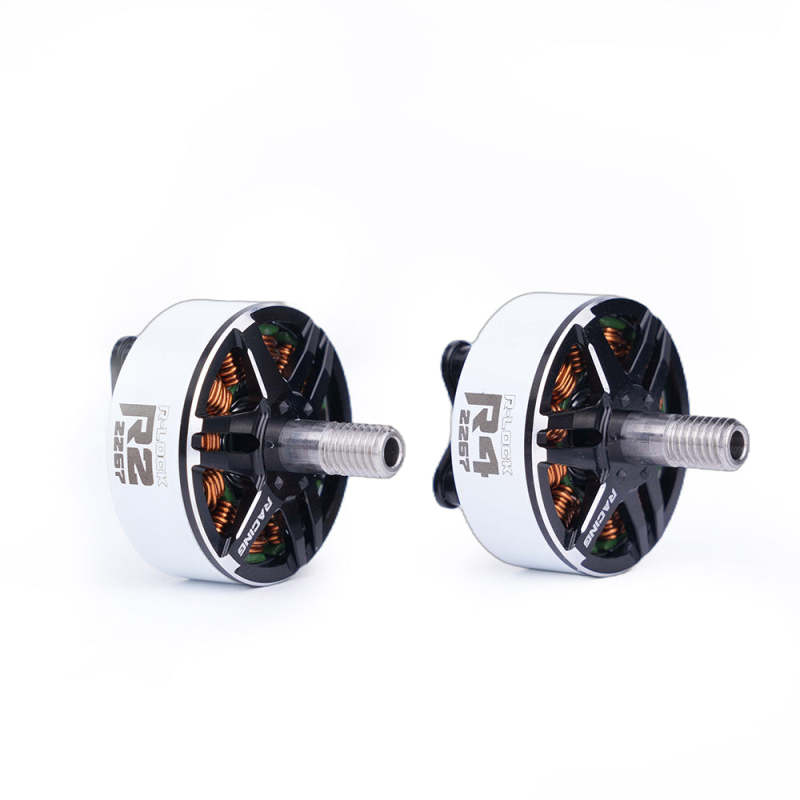

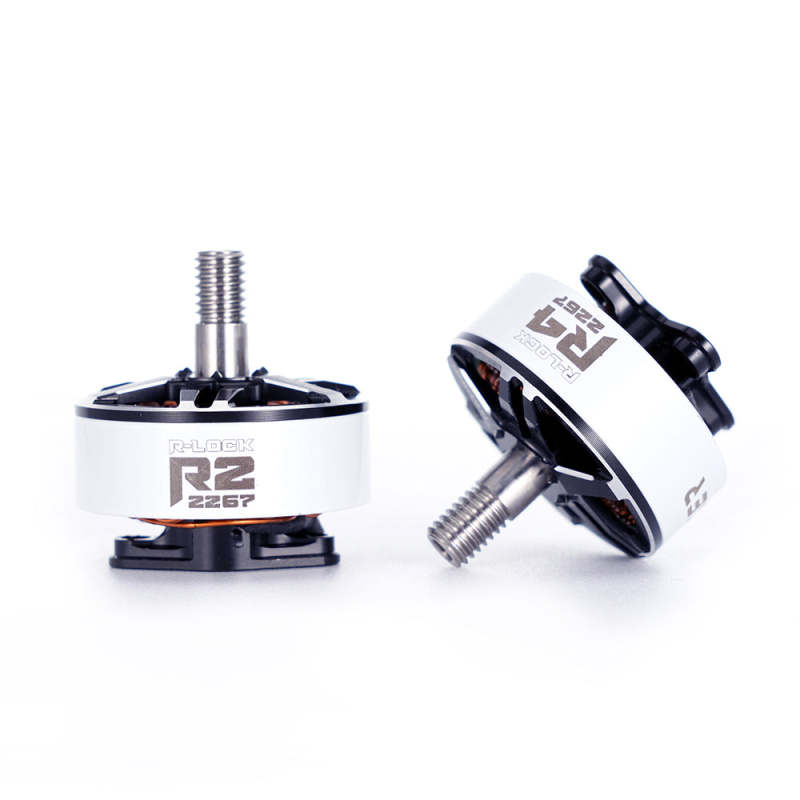

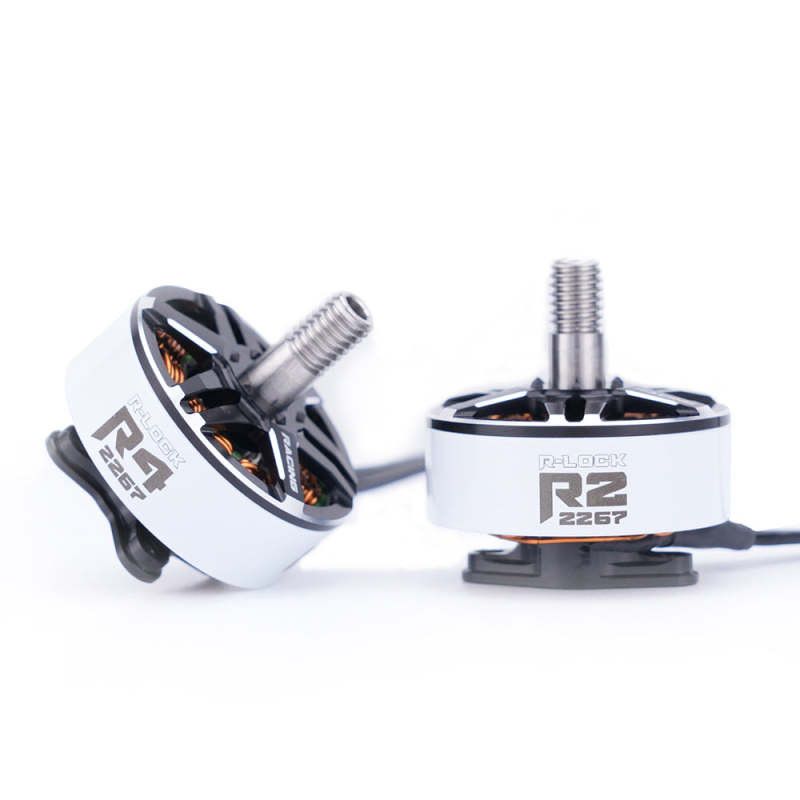

KONKER 2267 FPV Drone Motor 2150KV

MAD Motor KONKER 2267 2150KV — Racing Motor

The KONKER 2267 Racing Motor is Mad Components dedicated racing line — built from the ground up for competition. A 22×6.7mm stator and 2150KV winding are tuned for maximum output on 6S, delivering 2200g of thrust from a 26g motor with nothing wasted. It gives racers the explosive acceleration and razor-sharp throttle response needed to hold the fastest line, lap after lap

Key Features

• 6S-Optimized Power Delivery — 2150KV winding tuned for maximum output at 22.2V,built exclusively for 6S race setups

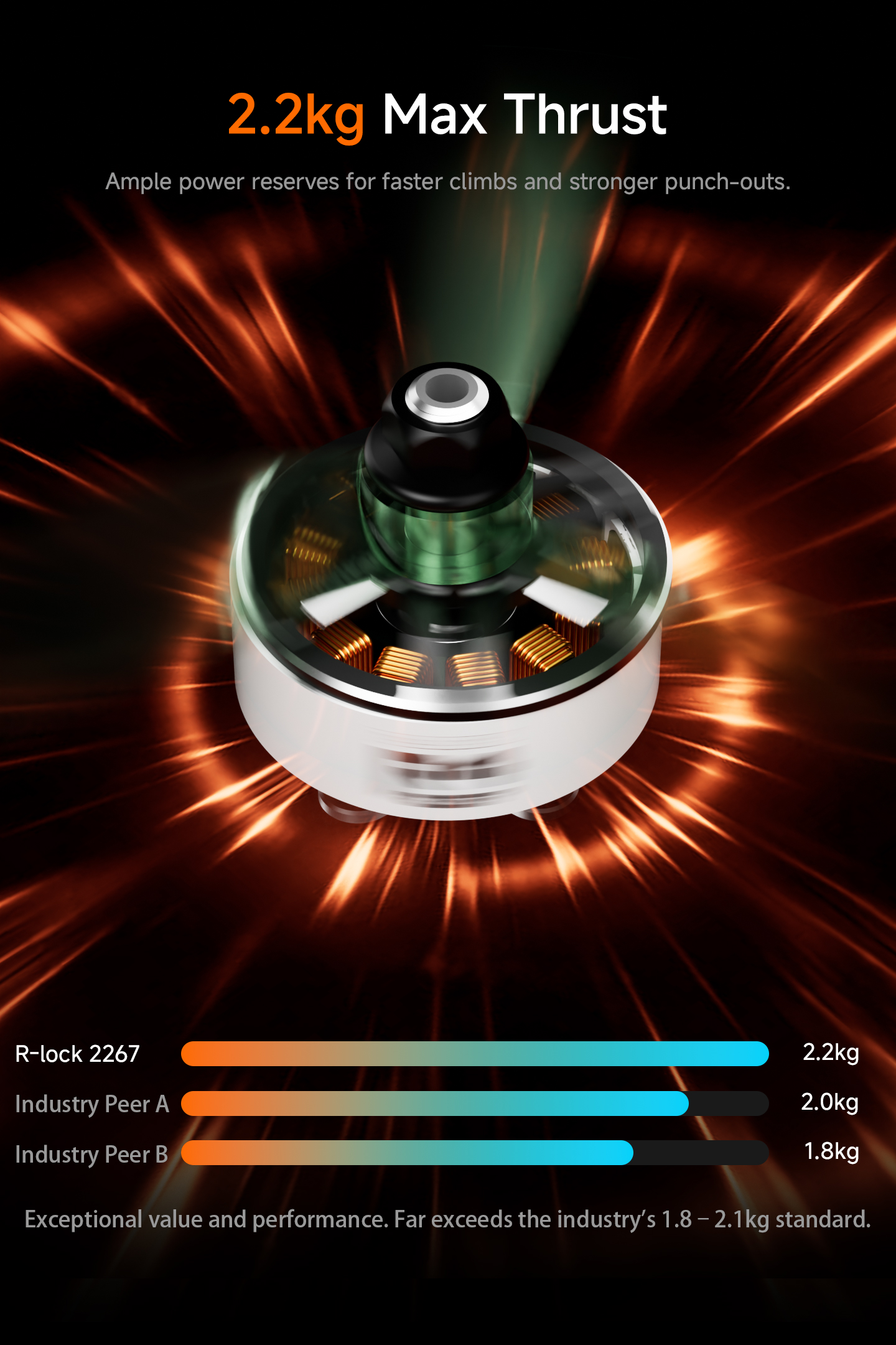

• 84.6:1 Thrust-to-Weight Ratio — 2200g (2.2 kgf) of max thrust from a 26g motor.Every gram earns its place.

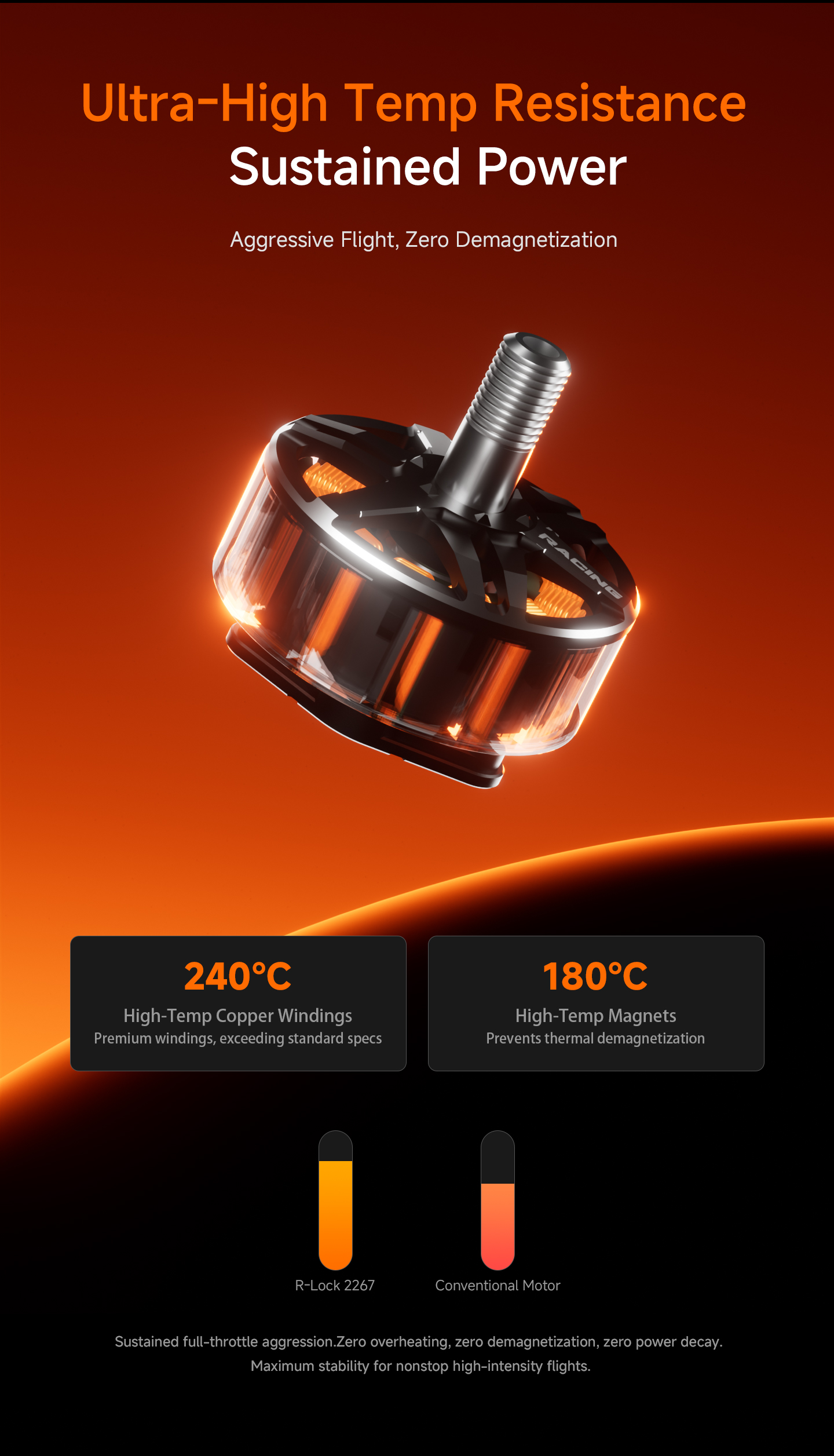

• 240°C Copper Winding — sustains full power output through an entire race day, heatafter heat, without drop-off.
• 180°C Magnet Temperature Resistance — resists demagnetization under sustained wide-open throttle, so power doesn't fade late in the race.
• Precision CNC Machined Bell — dynamically balanced for minimal vibration at race RPMs, protecting bearing life and keeping your FPV feed clean at full speed.

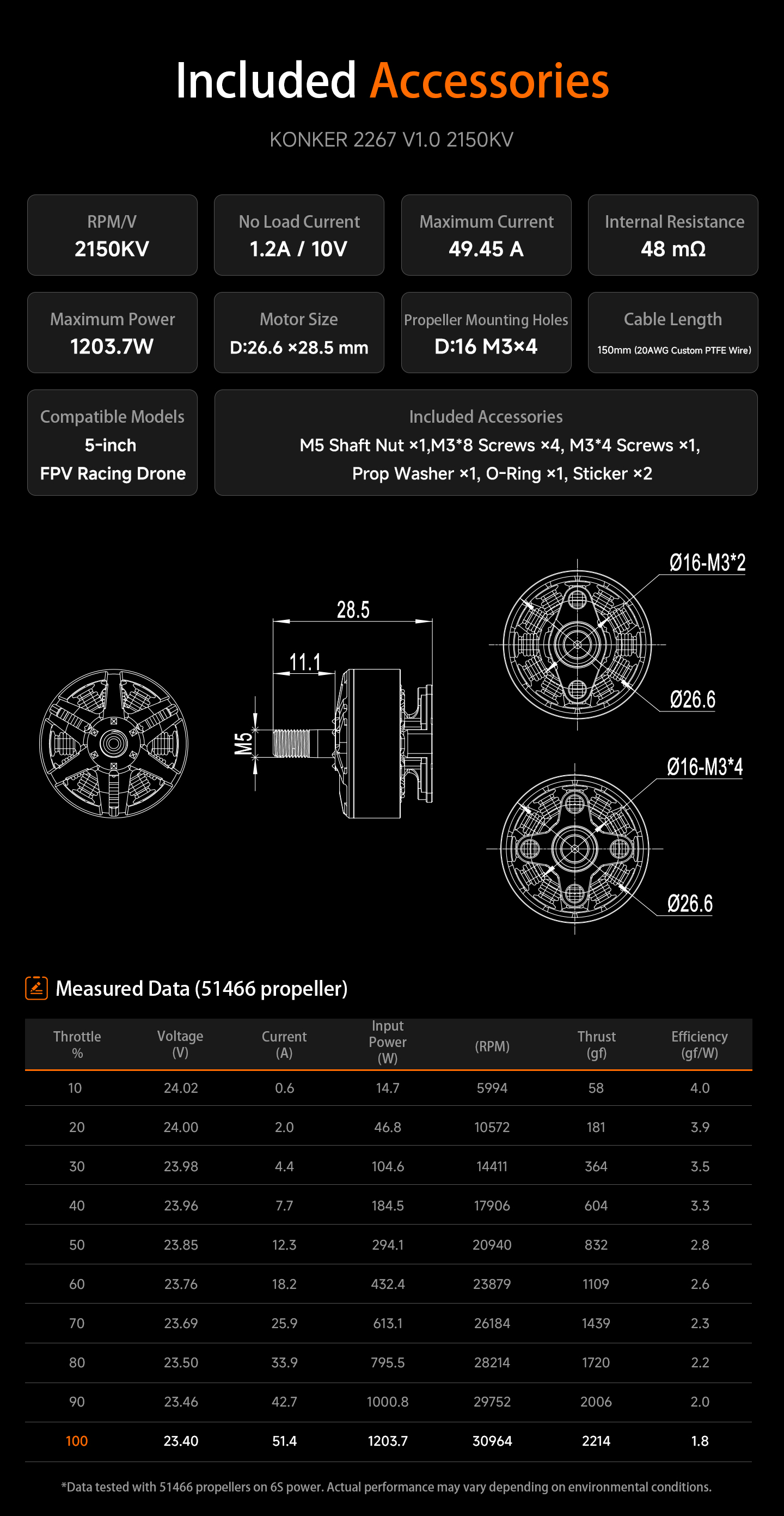

Specifications

Best For

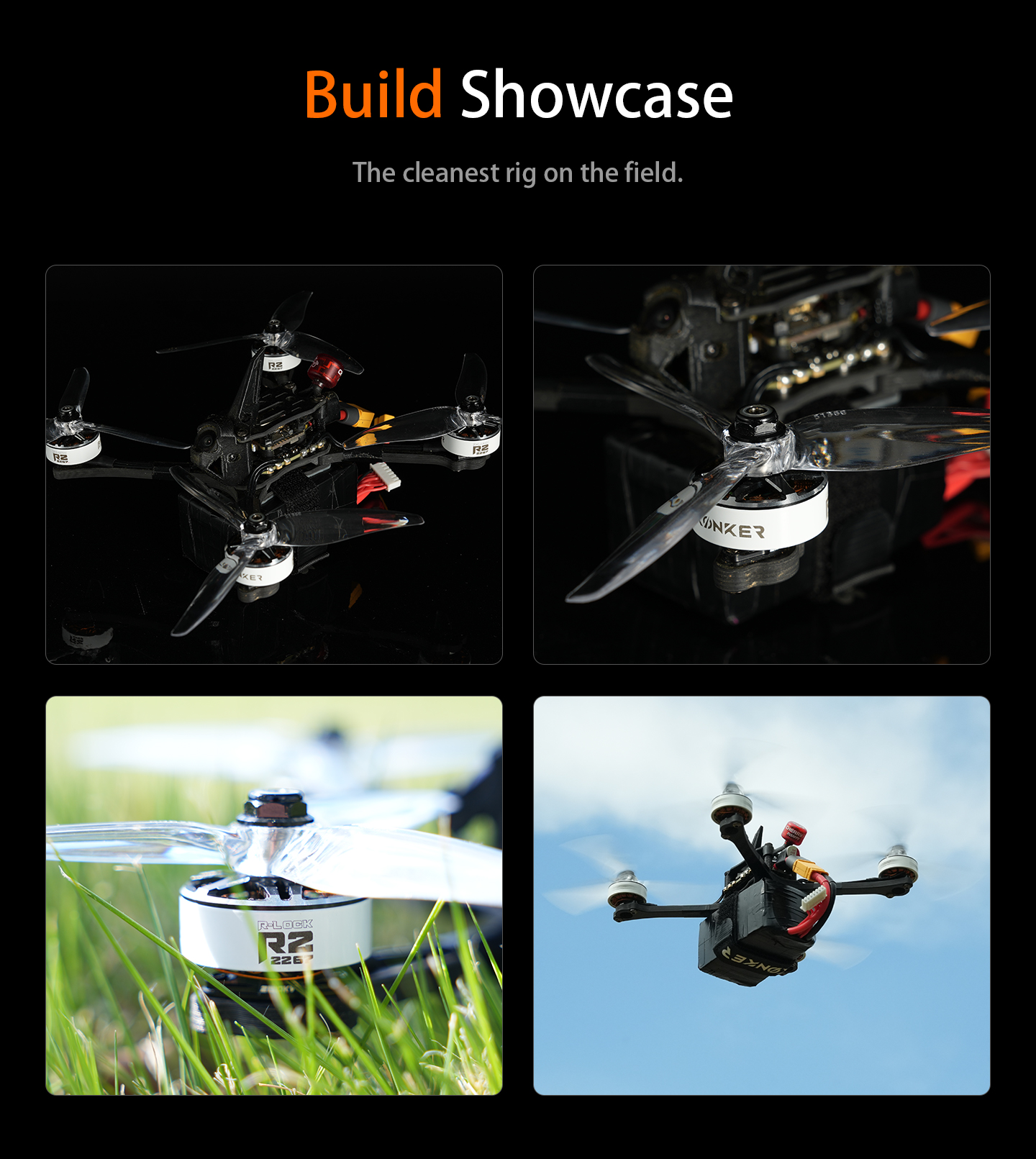

• 5-inch Race Builds — 84.6:1 thrust-to-weight for hard acceleration out of every turn and top-end speed on the straights.
• Circuit & Gate Racing — 2150KV tuned for consistent, repeatable output, lap after lap, heat after heat.
• Time-Optimized Setups — low-vibration output keeps your FPV feed clean and your inputs precise when you're chasing the fastest lap.

Frequently Asked Questions

Q: What propeller is recommended for the Konker 2267 2150KV?

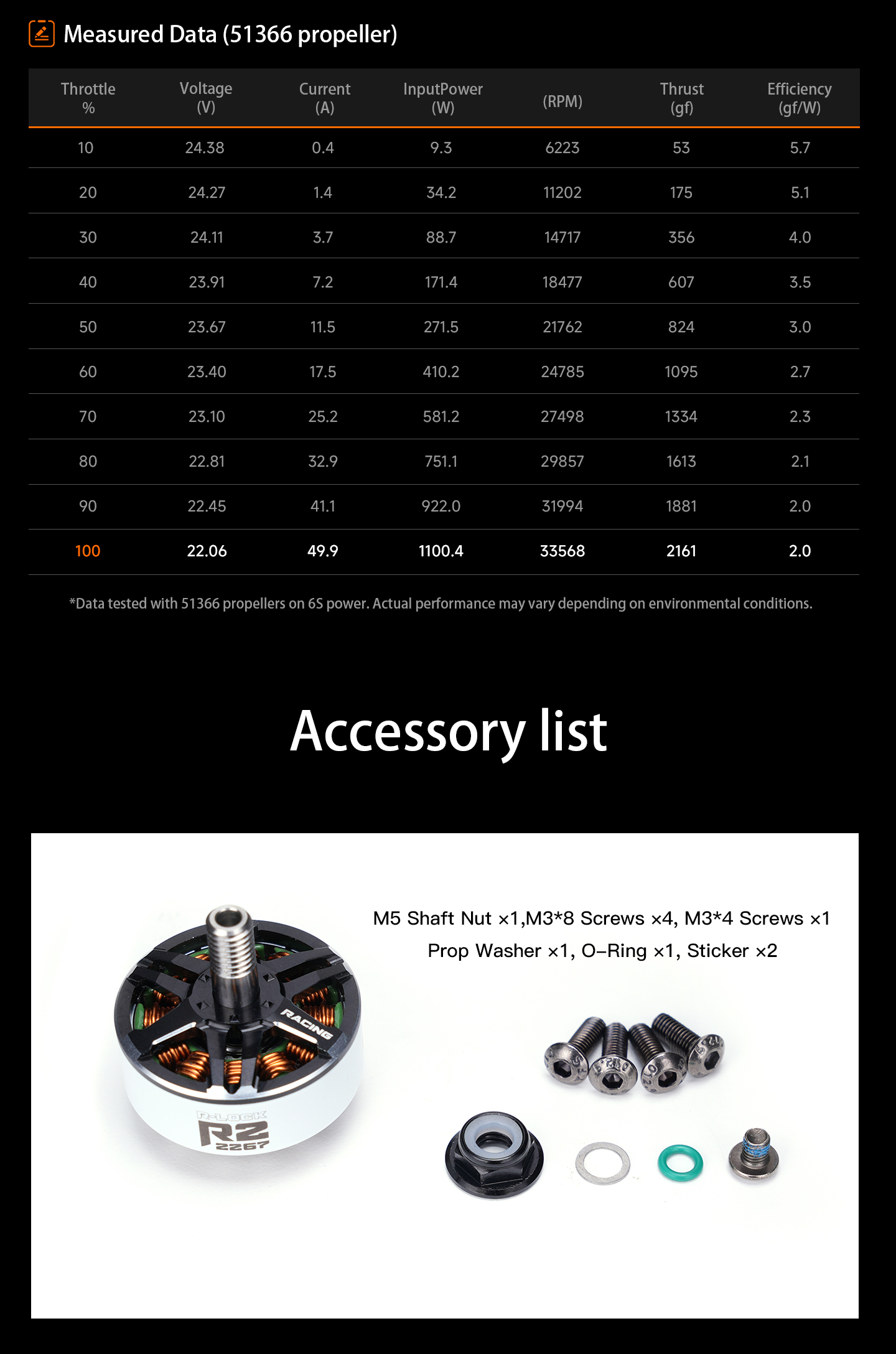

A: We recommend 5.1×3.6 inch (5136) propellers for optimal thrust and efficiency on 6S builds. Max thrust of 2200g (2.2 kgf) is tested with this propeller.

Q: Is the Konker 2267 2150KV compatible with 4S batteries?
A: This motor is optimized for 6S (22.2V) setups. For 4S builds, we recommend choosing a higher KV variant from the Other series.

Q: What is the motor weight?

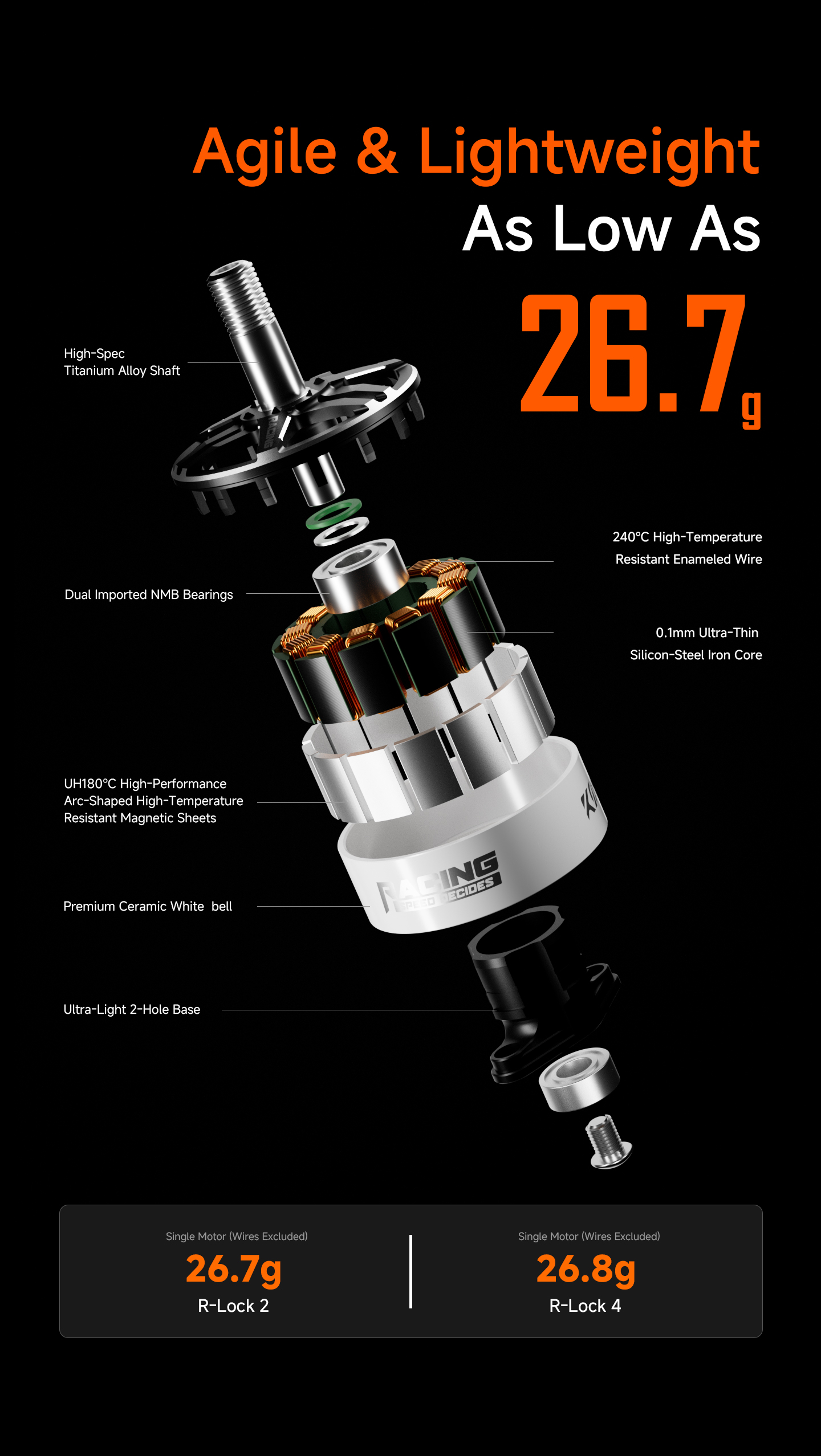

A: The Konker 2267 weighs 26g without cable — one of the lightest options in its class for a 6S 2267 motor.

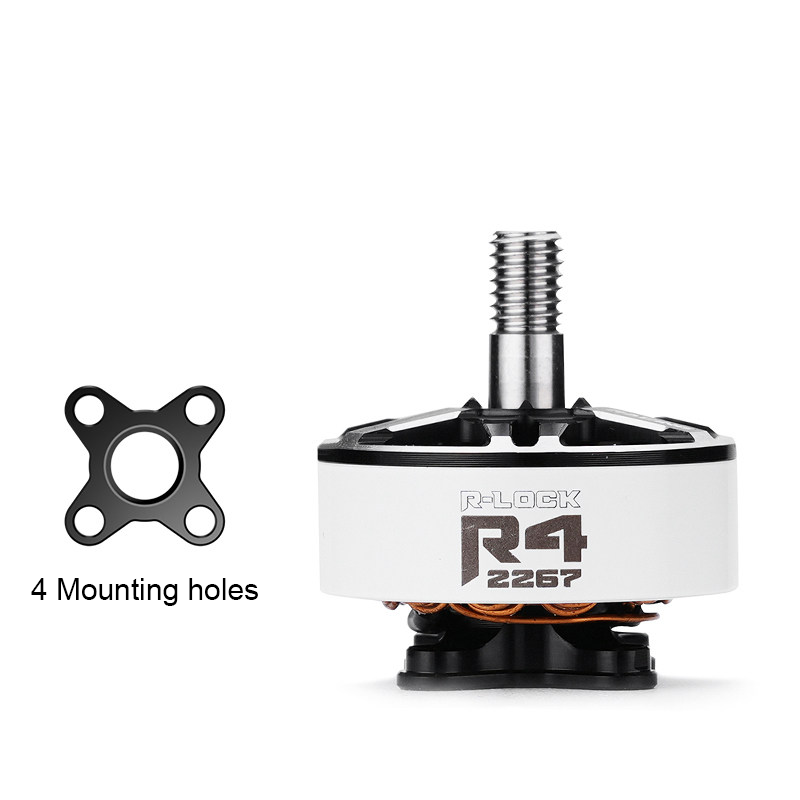

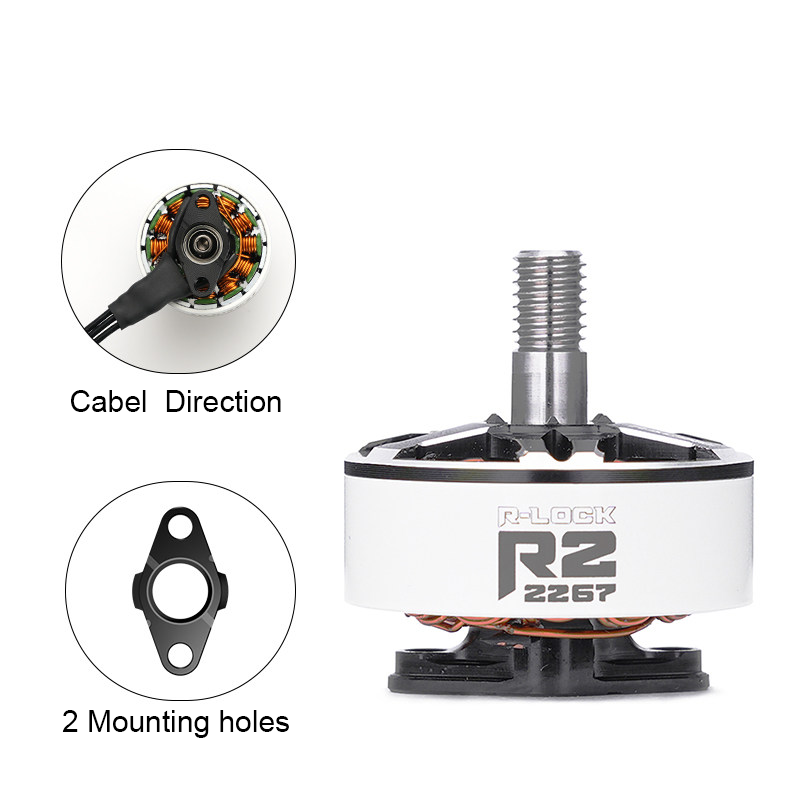

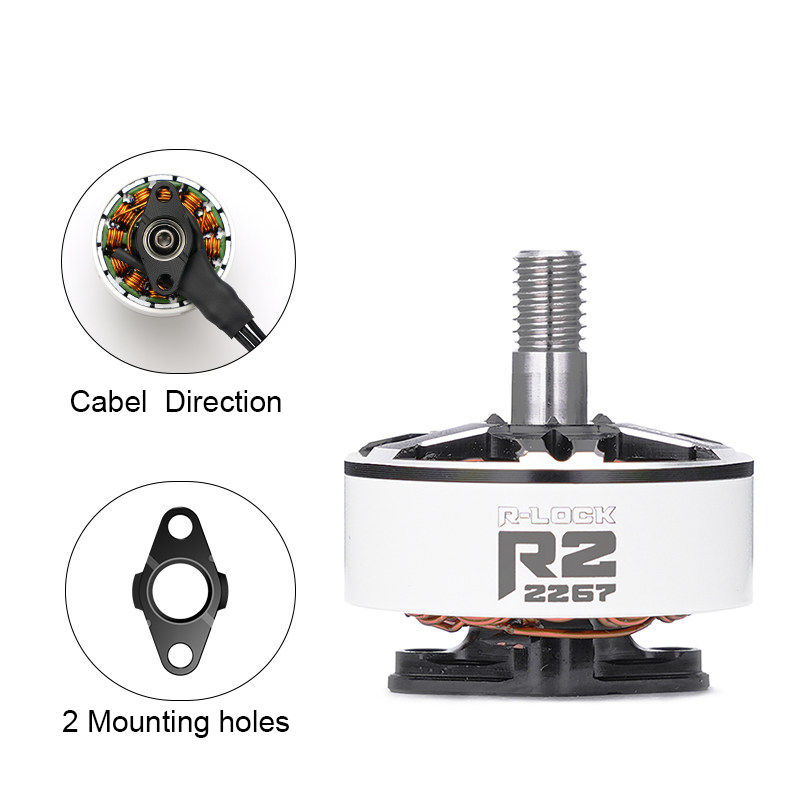

Q: What frame size is the Konker 2267 designed for?
A: It is designed for 5inch drone frame. Please verify the mounting pattern matches your frame before ordering.
