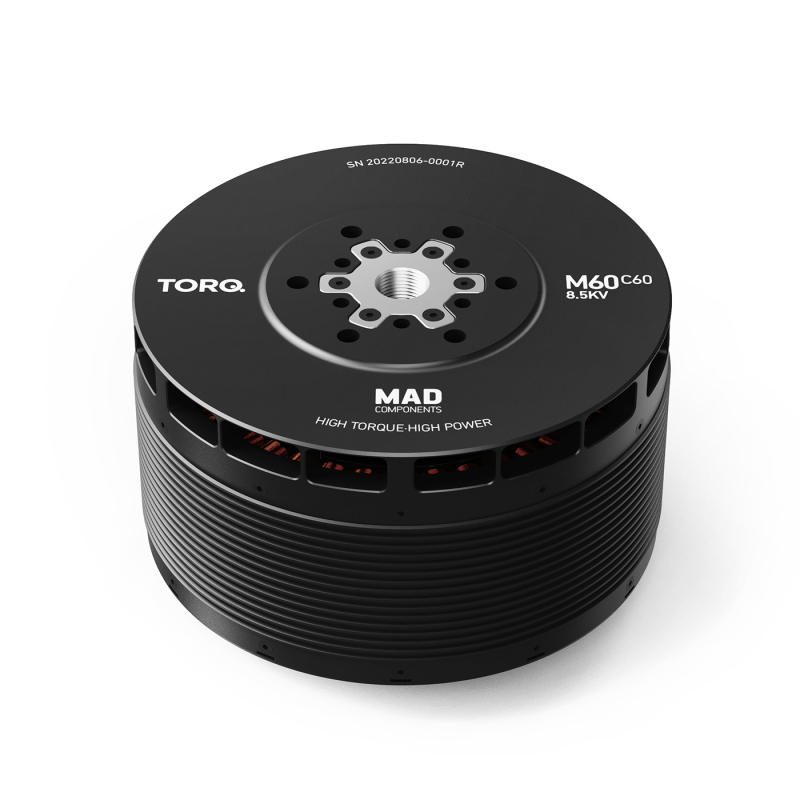

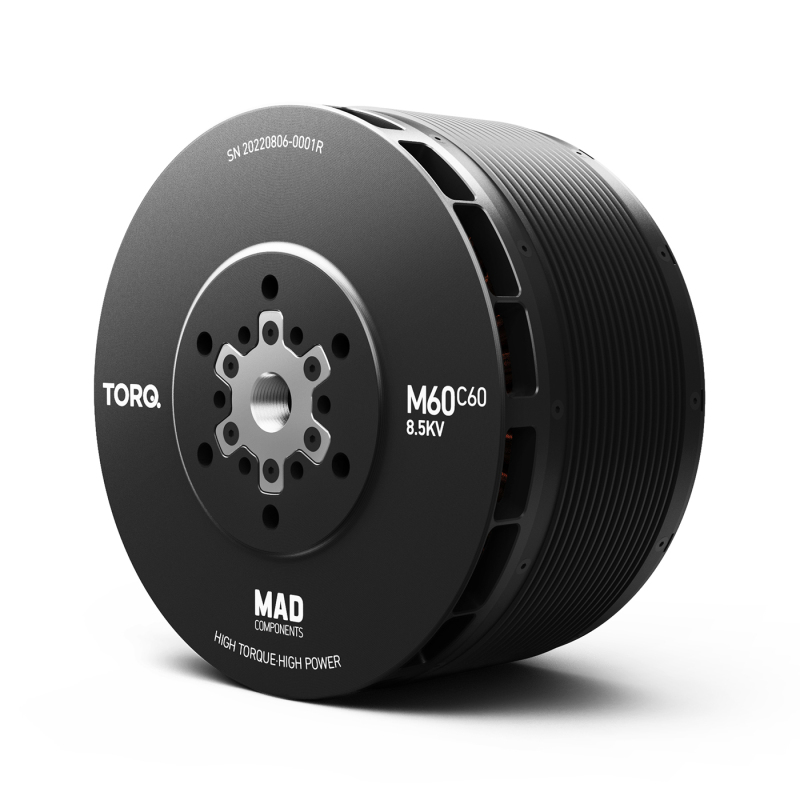

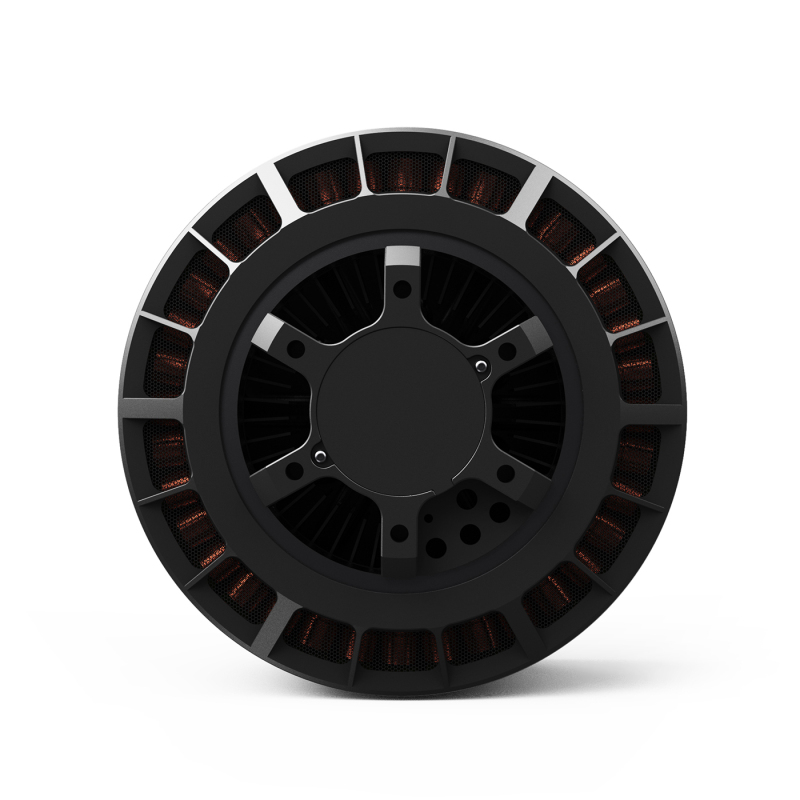

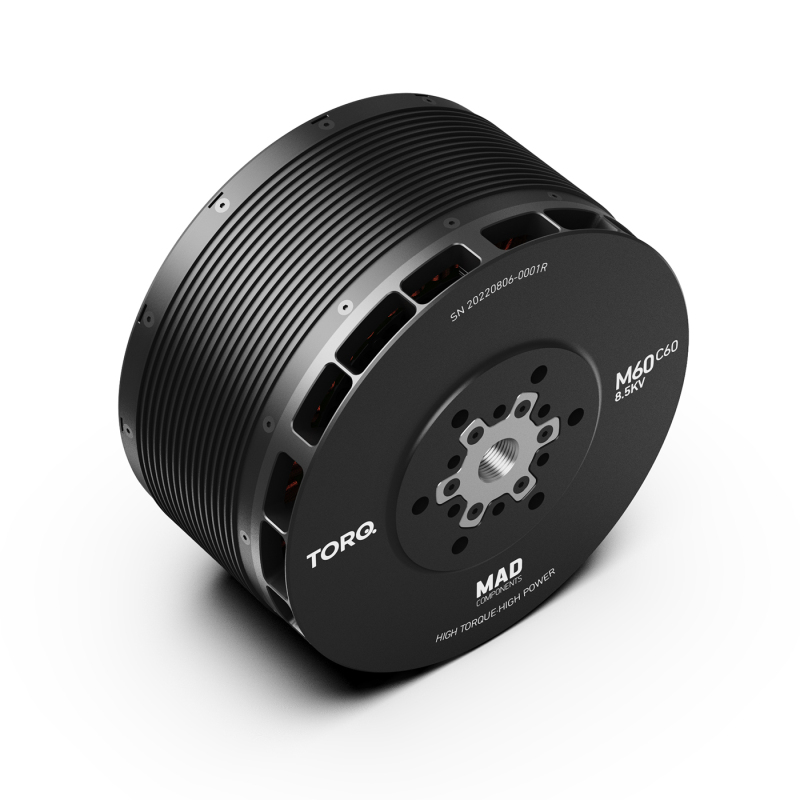

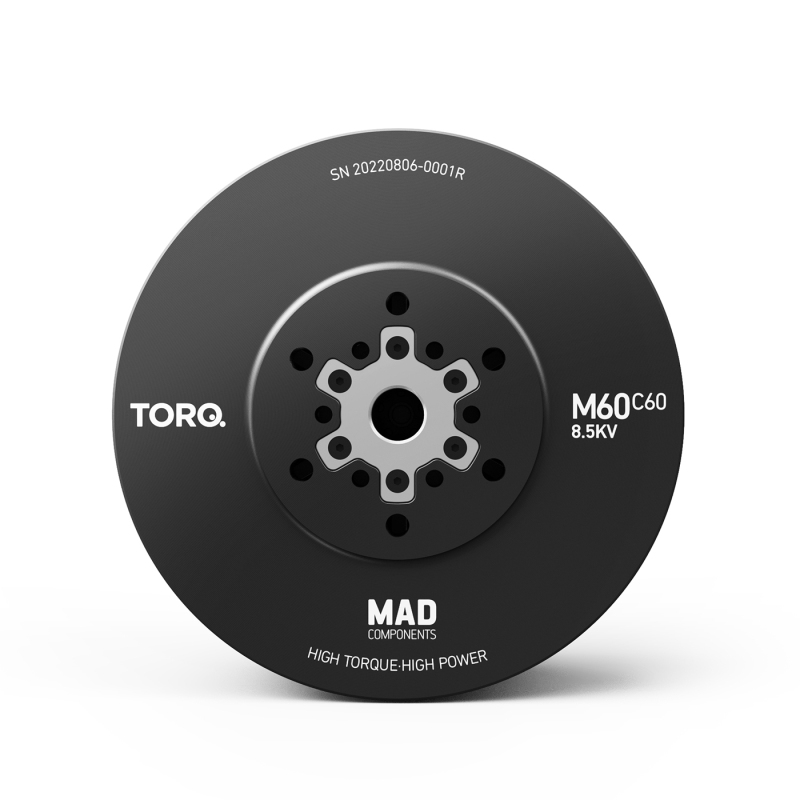

MAD M60C60 PRO IPE

SKU:
  1. It has a power output of 46 kW, equivalent to 62hp.
  2. Recommended ESC and propeller:  72x25-inch propeller
$0.00 $3,600.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    8.5KV
    Please select the information you wantX
Quantity
-
+
Download
  • MAD M60C60 PRO IPE
  • MAD M60C60 PRO IPE
  • MAD M60C60 PRO IPE
  • MAD M60C60 PRO IPE
  • MAD M60C60 PRO IPE
  • Description
  • 8.5KV

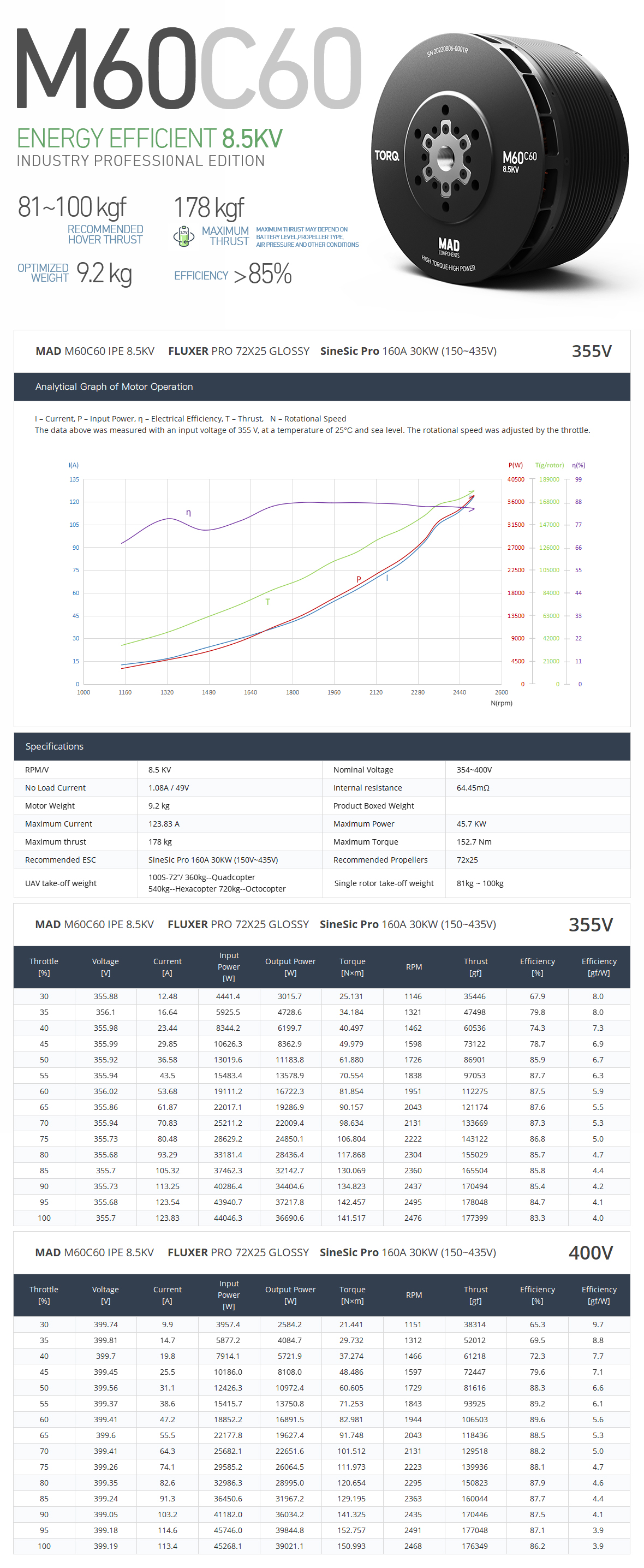

Motor Data

Motor Model MAD M60C60 IPE V1.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:196.8 ×130 mm Motor Balance 180°C
Degree of Protection IP45 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤20 mg
Propeller Mounting Holes D:75 M8×6  D:50 M6*6 Motor Balance ≤30 mg
Shaft Diameter IN: 25 mm Motor Mounting Holes D:80 M6×6
Bearing NSK 6205 ZZ *2  NSK 61822 ZZ *1 Disruptive test 2000 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
