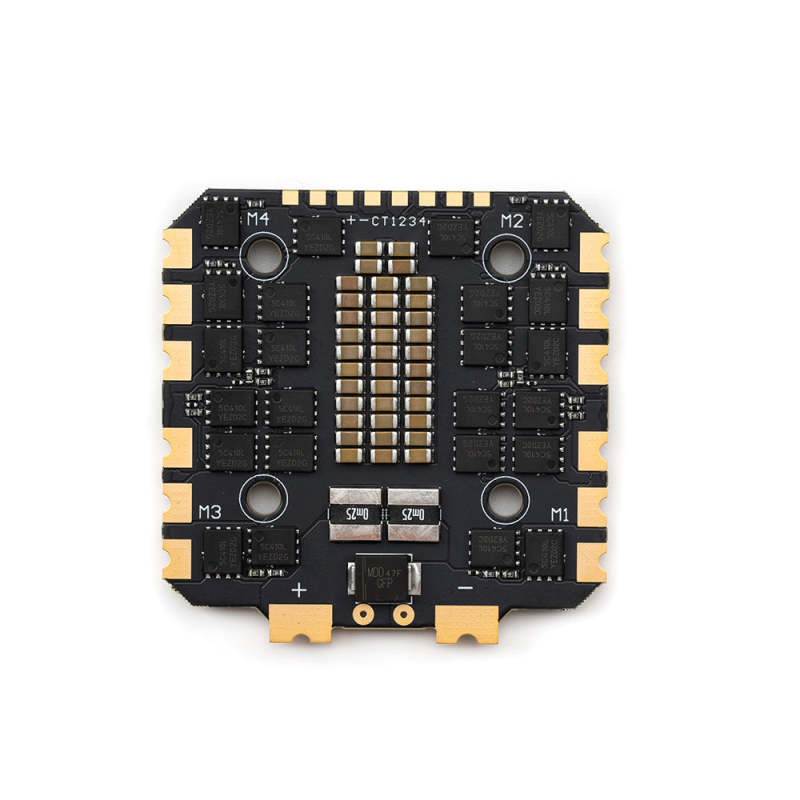

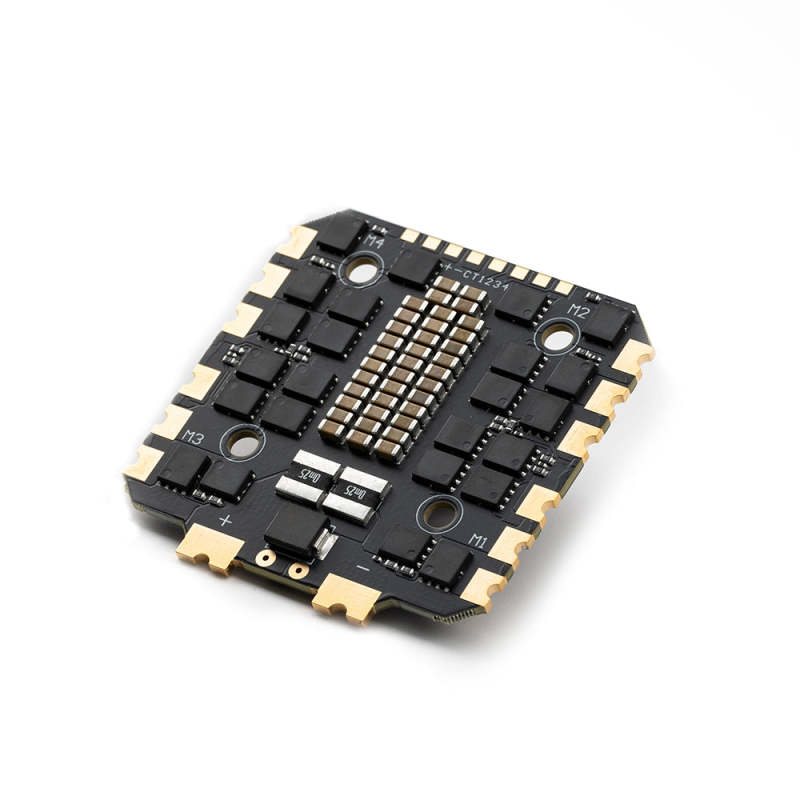

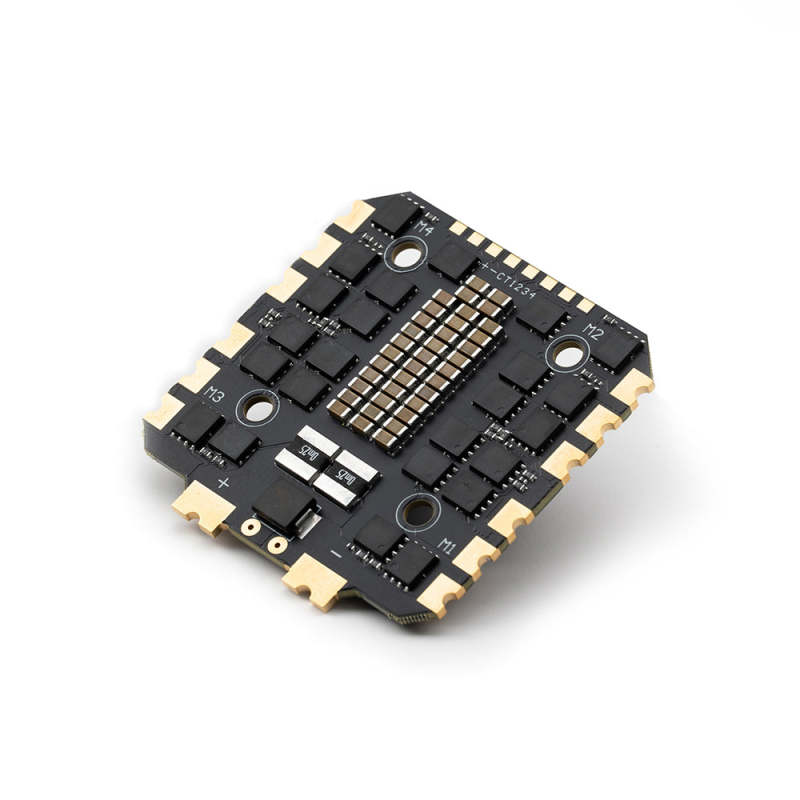

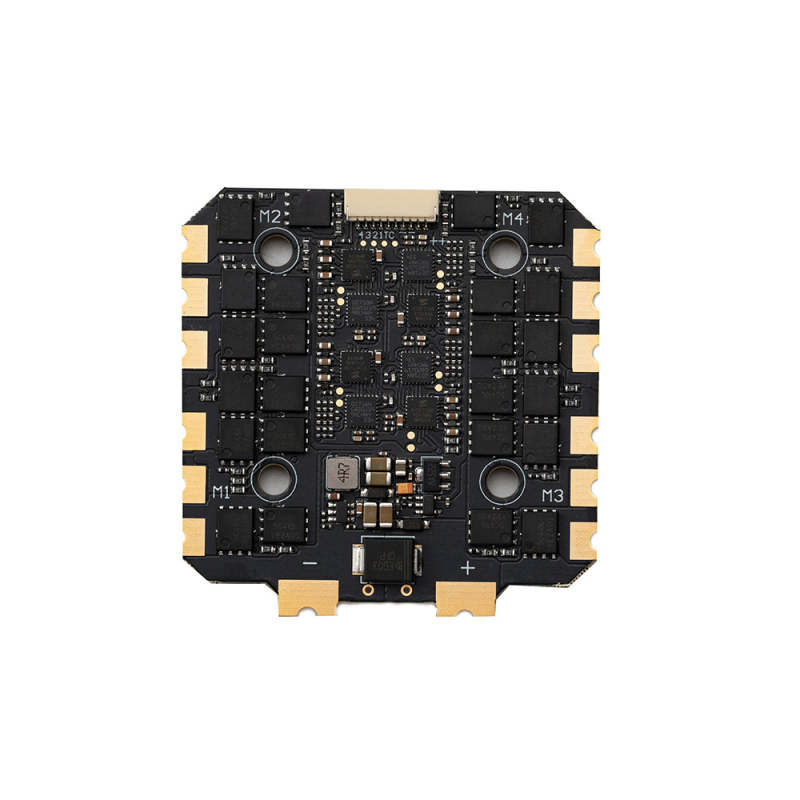

MAD PULSAR BL-32 8S 100A 4IN1 ESC

About PULSAR BL-32 100A 4IN1 ESC

The MAD PULSAR BL-32 8S 100A 4-in-1 ESC delivers smooth, responsive motor control with 100A continuous output and 8S LiPo support. Powered by BLHeli_32 firmware, it provides exceptional reliability, efficiency, and performance for high-end freestyle, racing, and long-range FPV drones.

HighLights

• 100A Continuous Current Output
  Delivers stable, high-current performance for demanding freestyle, racing, and long-range FPV builds.
• Supports Up to 8S LiPo Batteries
  Designed for high-voltage FPV systems, providing greater power headroom and improved efficiency.
• BLHeli_32 Firmware
  Offers ultra-smooth throttle response, precise motor control, and advanced ESC configuration for optimal flight performance.
• High-Efficiency 4-in-1 Design
  Combines four ESCs into a compact, lightweight board, simplifying installation while reducing wiring and overall weight.The weight is only 32g.
• Built for Reliability
  Premium components and optimized thermal performance ensure stable operation and dependable power delivery during demanding flights.

The continuous current of the 4-in-1 ESC is the operating current under forced air cooling, provided that forced air cooling is used to keep the overall temperature below 90 degrees. FPV series aircraft come with built-in forced air cooling and can use this during high-speed flight. However, long-endurance aircraft typically use low KV motors without forced air cooling, so they cannot be used.

Q: How to Identify & Choose "BLHeli_S" or "BLHeli_32"
A: Identification: The easiest way is to check the label/sticker on your ESC — it usually states "BLHeli_S" or "BLHeli_32". If not, refer to the product manual or specifications.

Software Compatibility: Do NOT mix up the configuration tools. Use BLHeliSuite for BLHeli_S and BLHeliSuite32 for BLHeli_32. Attempting to use the wrong suite will fail to detect the ESC.

Choice Guidance:
1. Choose BLHeli_S if you're building a budget-friendly drone, performing casual flying, or simply need a reliable, proven system.
2.Choose BLHeli_32 if you're building a high-performance racing/freestyle drone, require advanced telemetry (e.g., for RPM filtering), or want the best throttle response and protection features.
