Home > FPV ESC > MAD PULSAR BL-32 8S 80A 4IN1 ESC

1/1

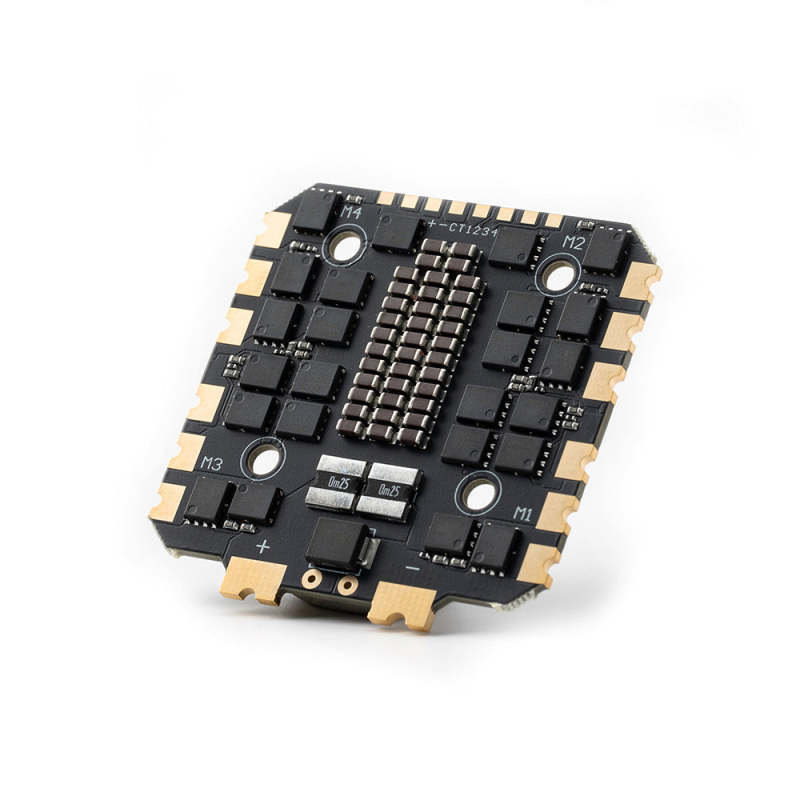

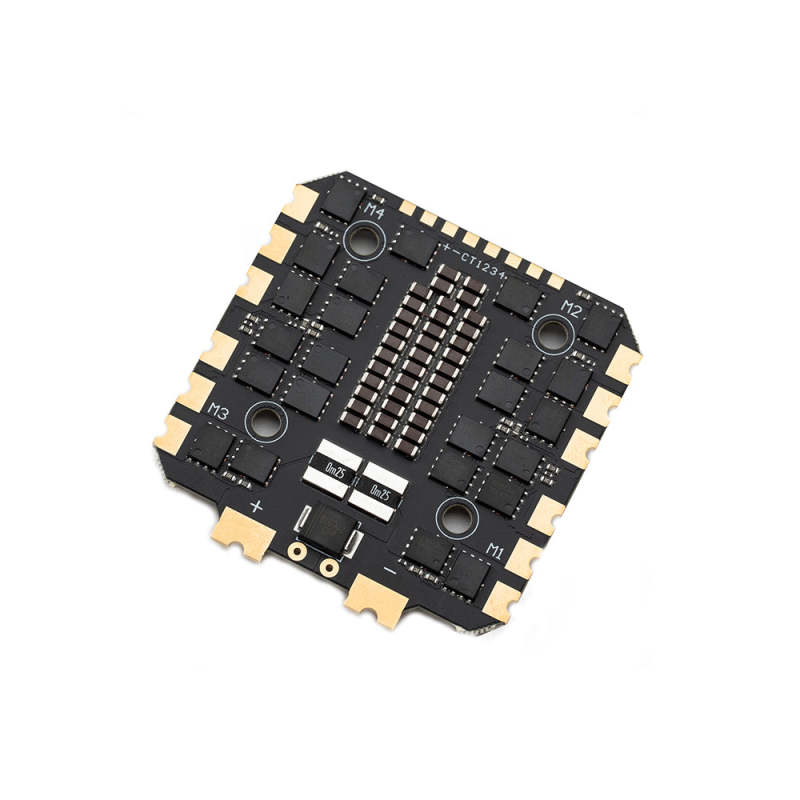

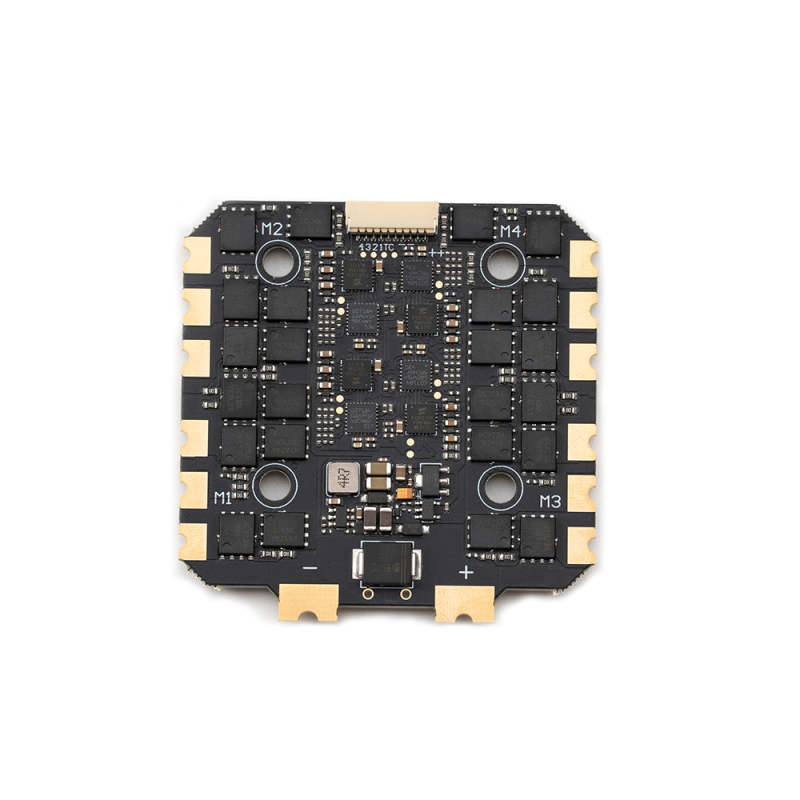

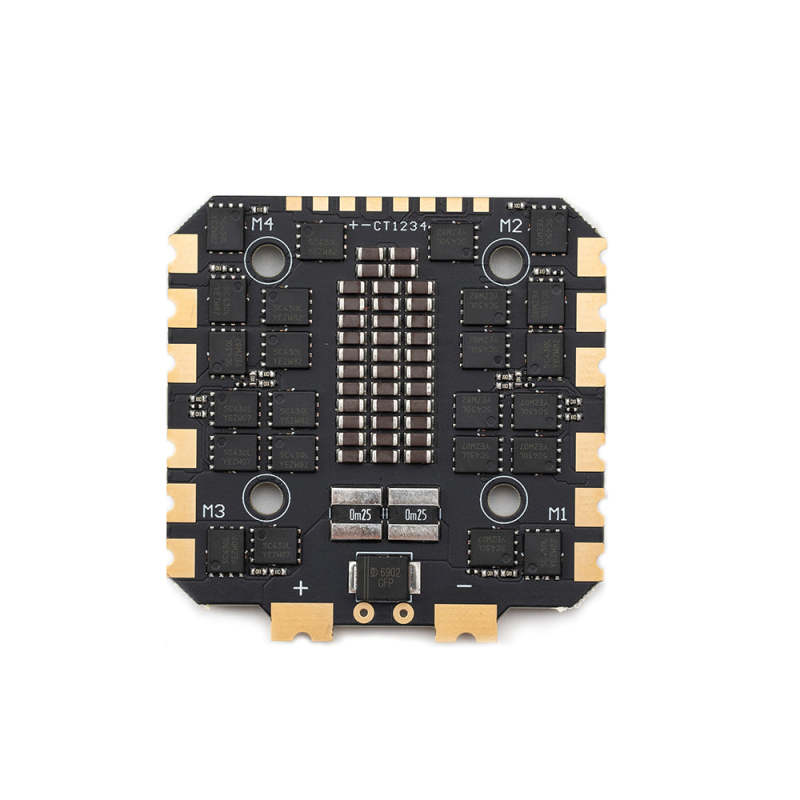

MAD PULSAR BL-32 8S 80A 4IN1 ESC

SKU: 0102DT0514

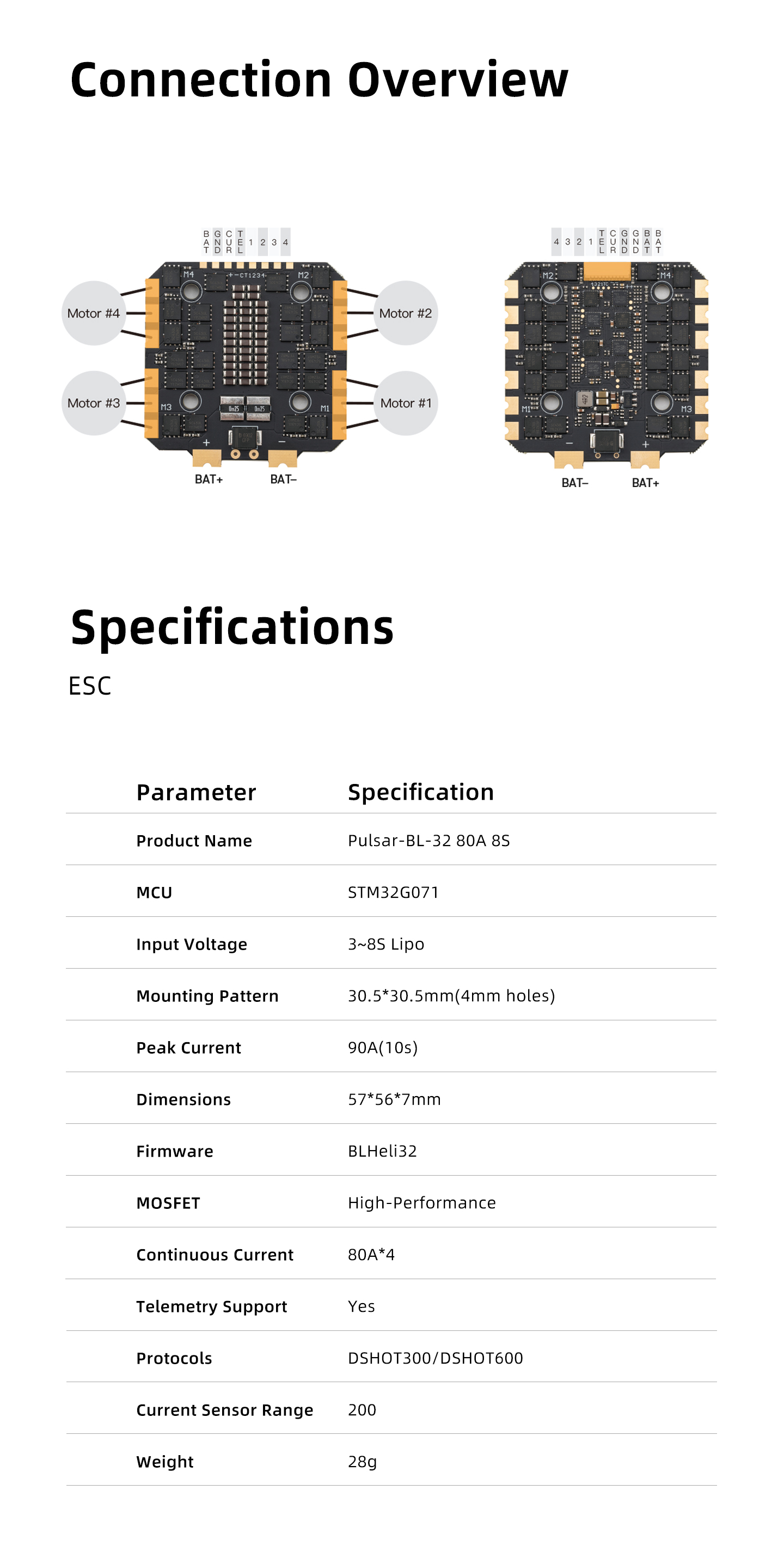

Continuous Current:	80Ax4
Peak Current:	90A(10S)
MCU:	STM32G071/Dshot 300/600
Voltage Support:	3~8S Lipo

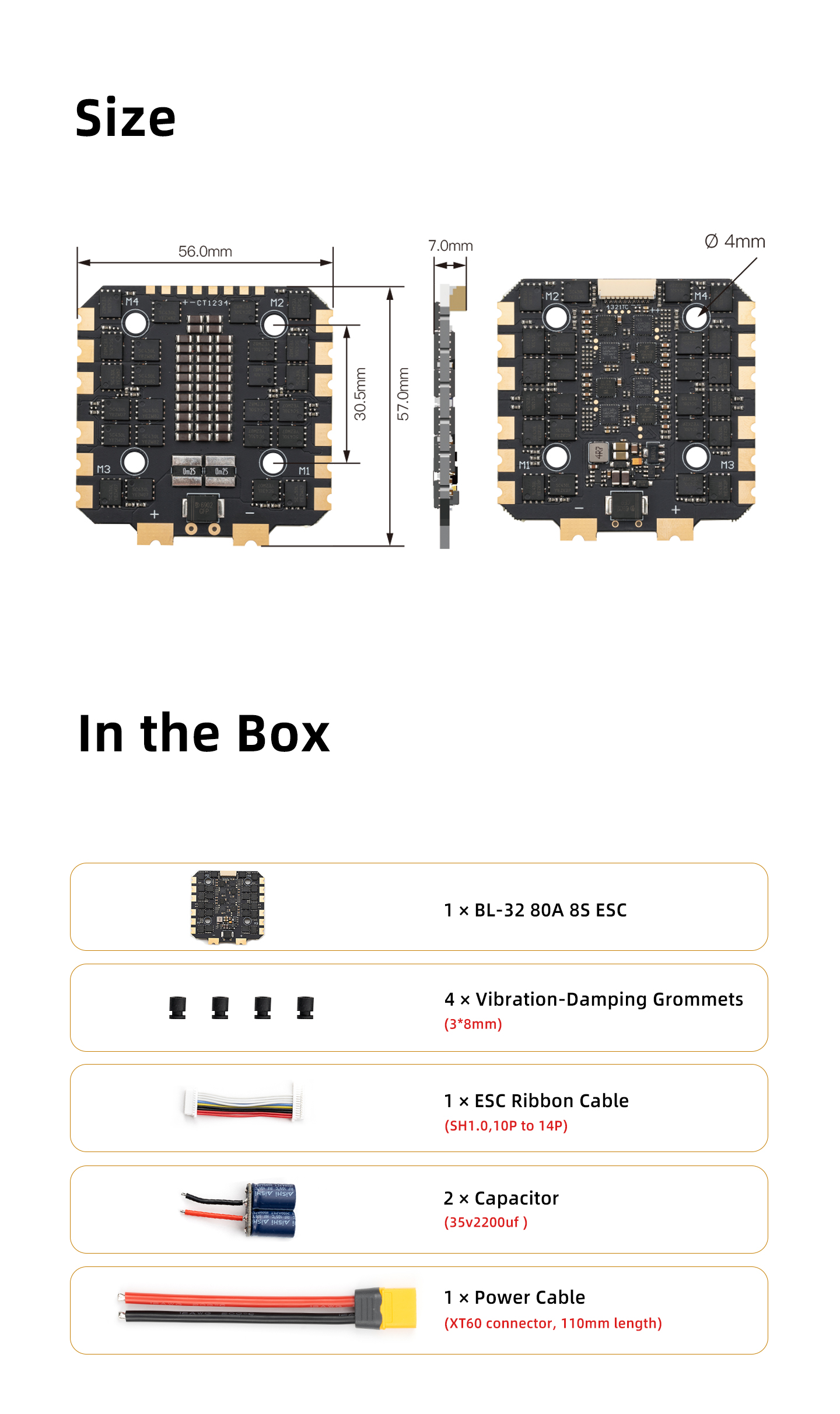

Mounting Hole:	30.5x30.5mm(4mm holes)
FC Plug:	14-Pin Plug-and-Play Port

$99.00

Received successfully

Coupon Code

Description
FAQ

The continuous current of the 4-in-1 ESC is the operating current under forced air cooling, provided that forced air cooling is used to keep the overall temperature below 90 degrees. FPV series aircraft come with built-in forced air cooling and can use this during high-speed flight. However, long-endurance aircraft typically use low KV motors without forced air cooling, so they cannot be used.
