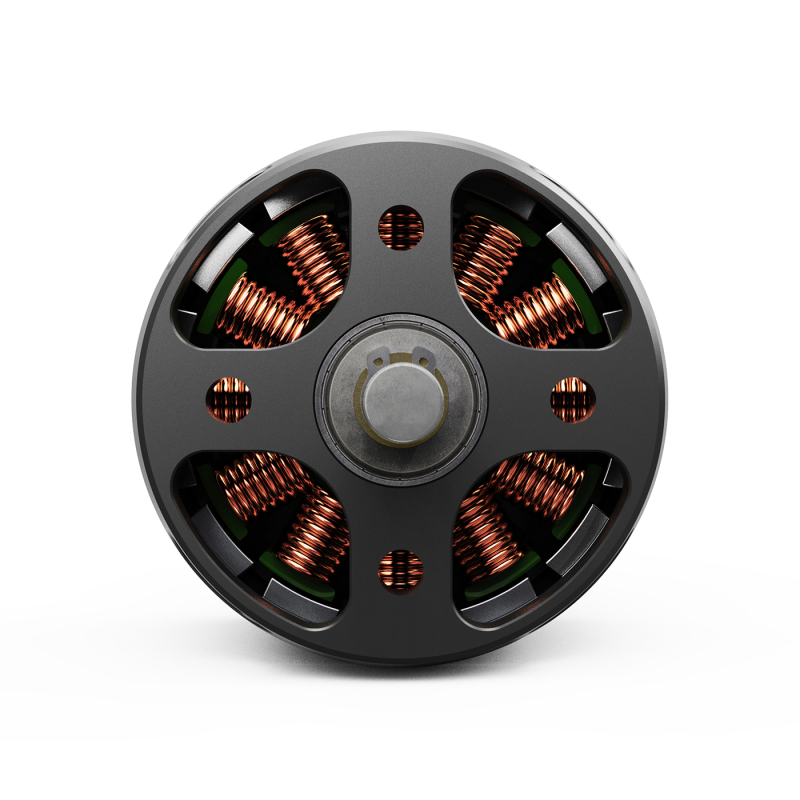

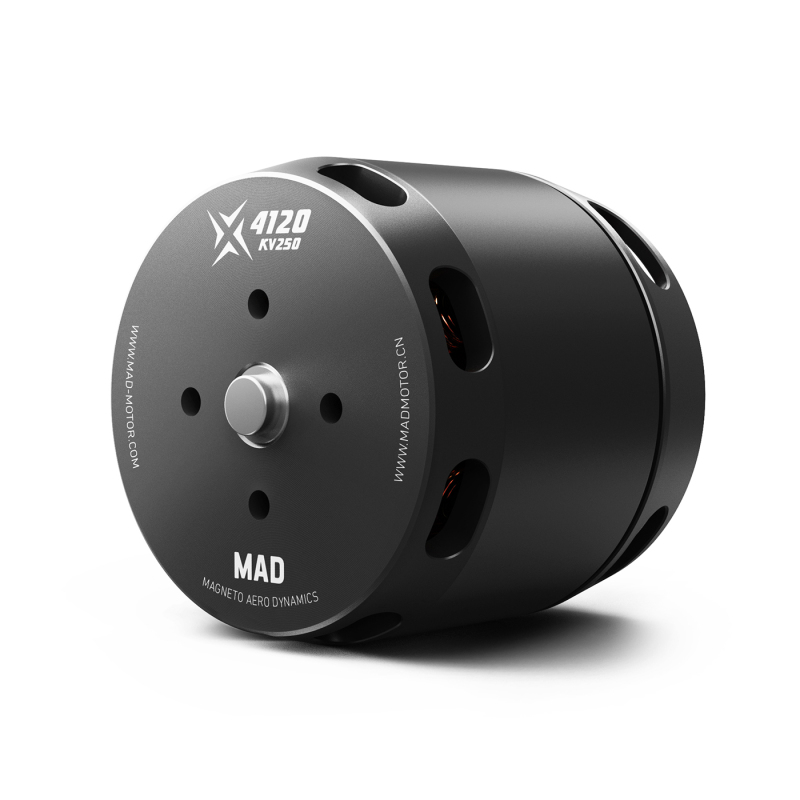

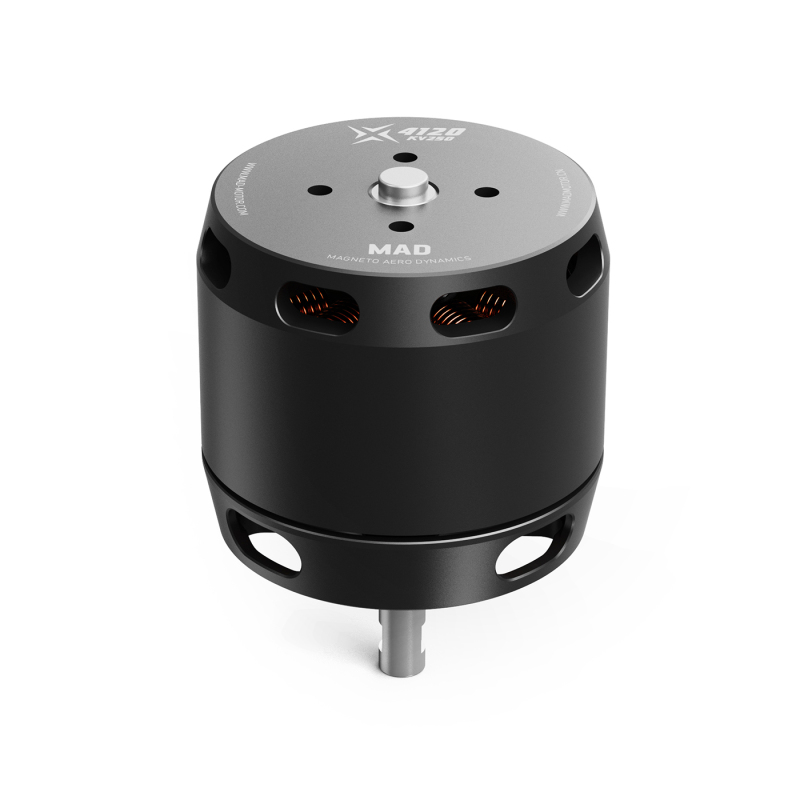

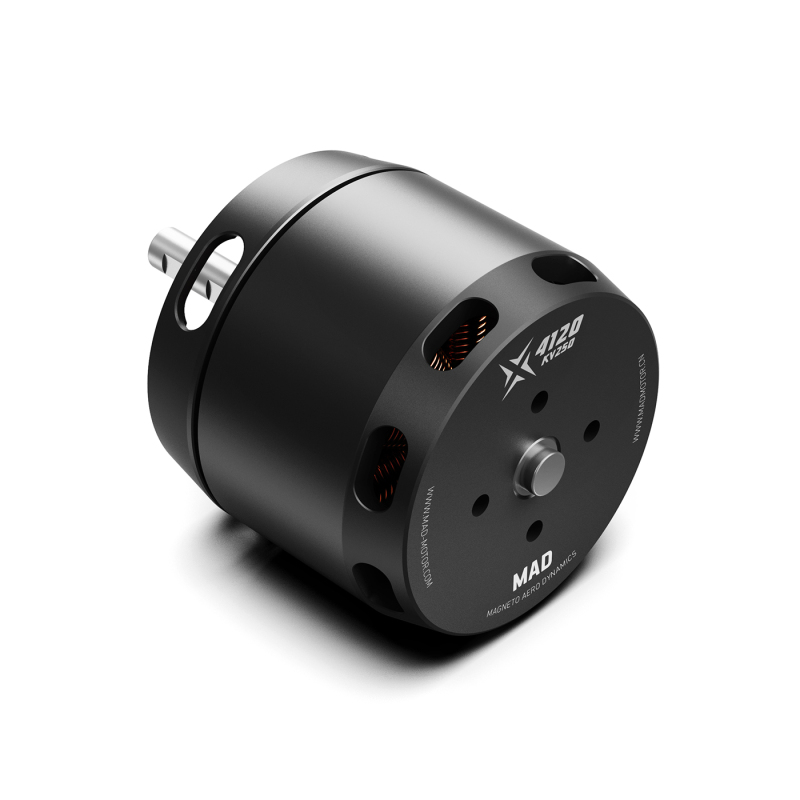

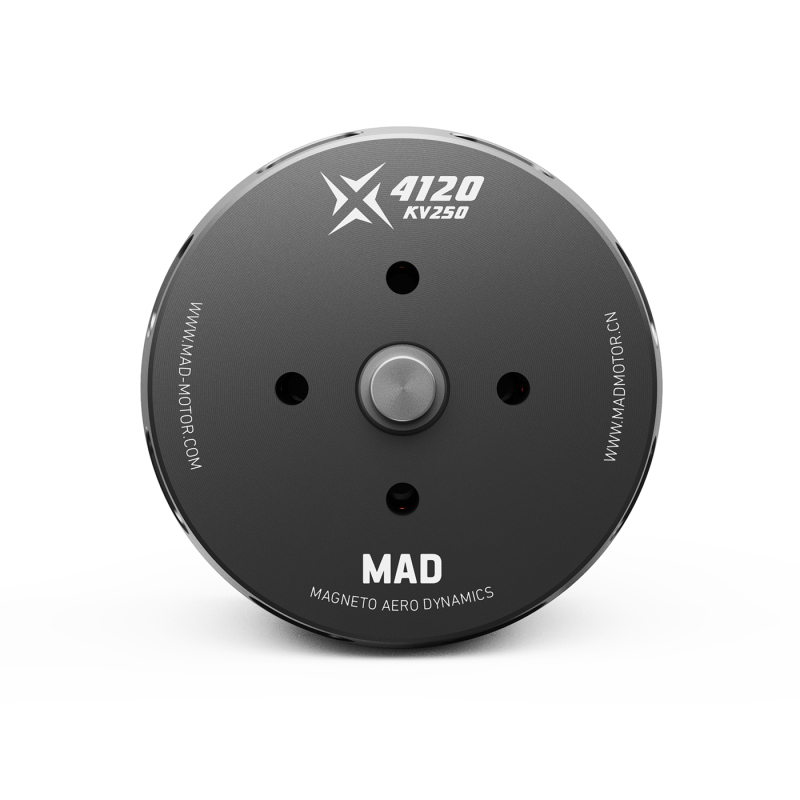

X4120 eVTOL Airplane Drone Motor

SKU: 0101DJ2580

Power Range: 1.8 - 1.6 kW
Thrust Range: 2 - 5.6 kgf
Peak Efficiency: 60-80% throttle (optimized for high-speed cruise)
Recommended Propellers: 15-16" fixed-wing props (high-RPM)
Typical Applications:
- Racing / Target Drones
- Small VTOL (Vertical Takeoff & Landing)
- Military micro-UAVs
- Hybrid-powered FPV drones

$85.00

Received successfully

Coupon Code

Download

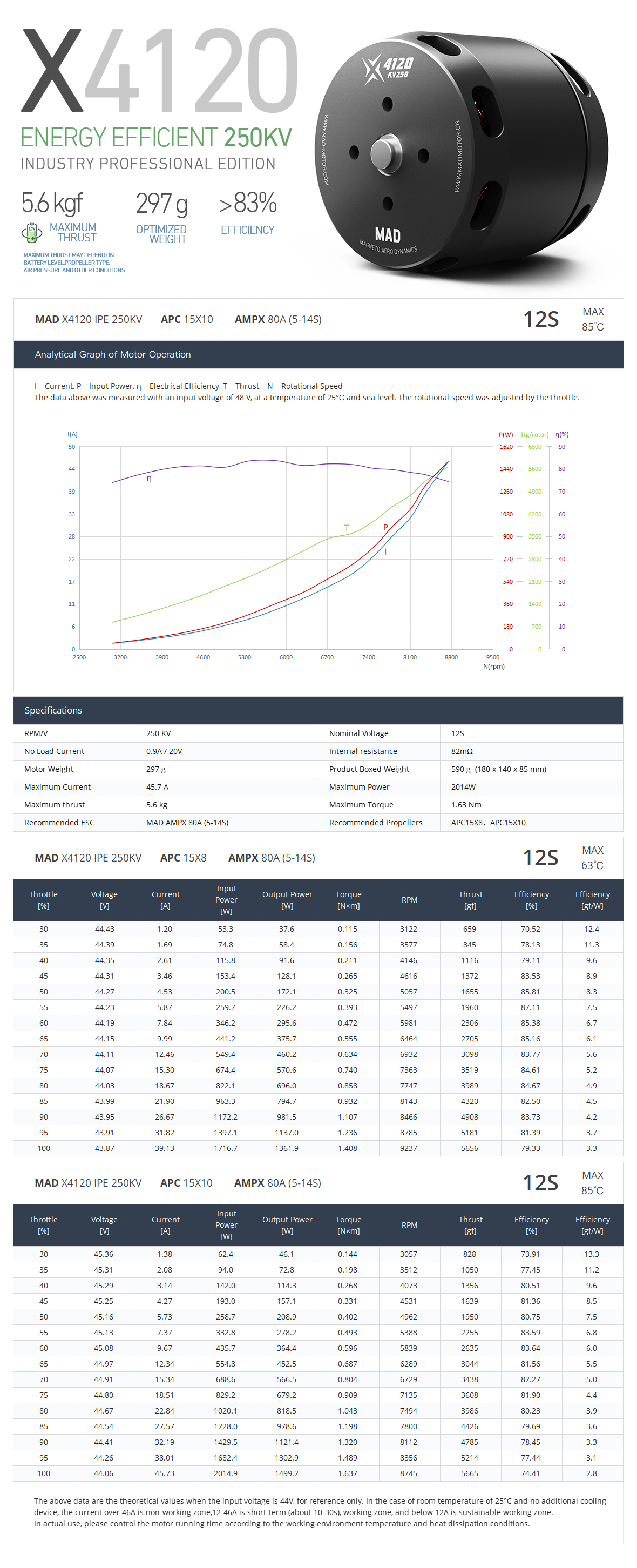

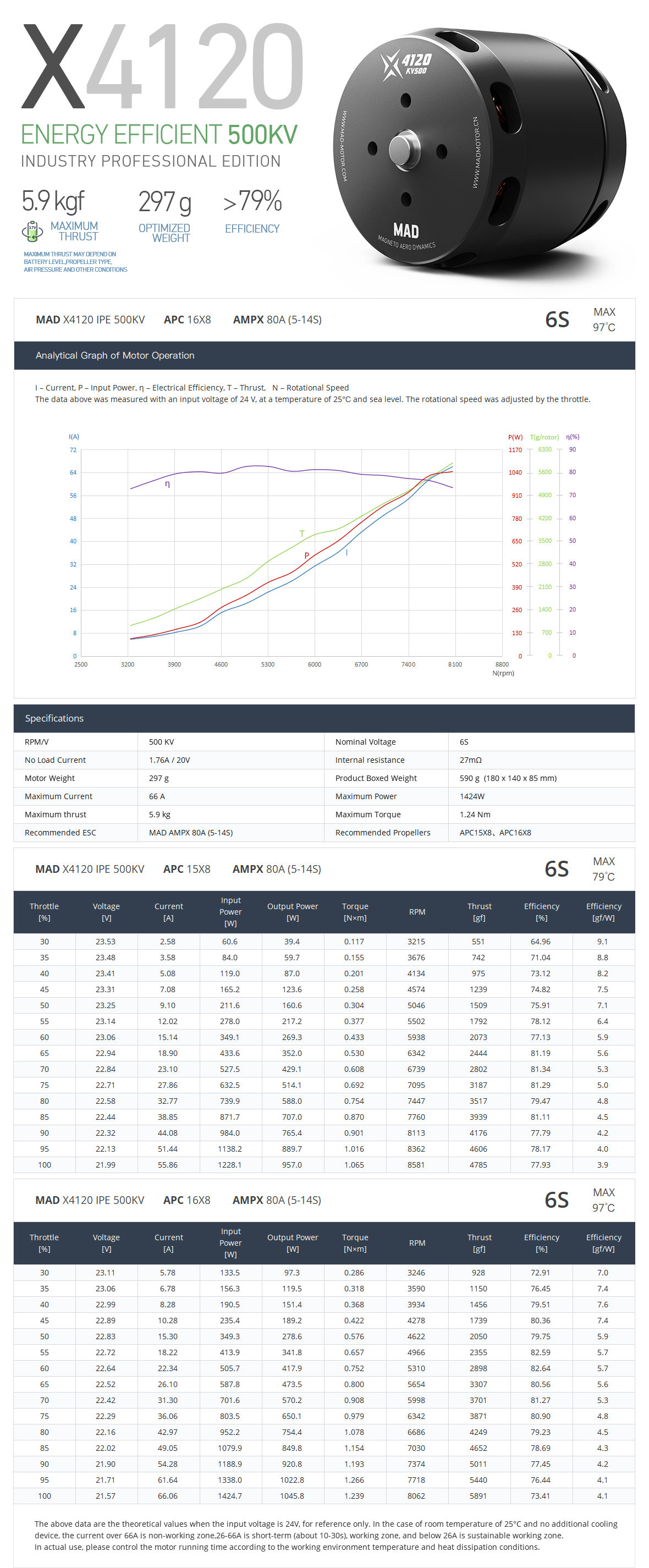

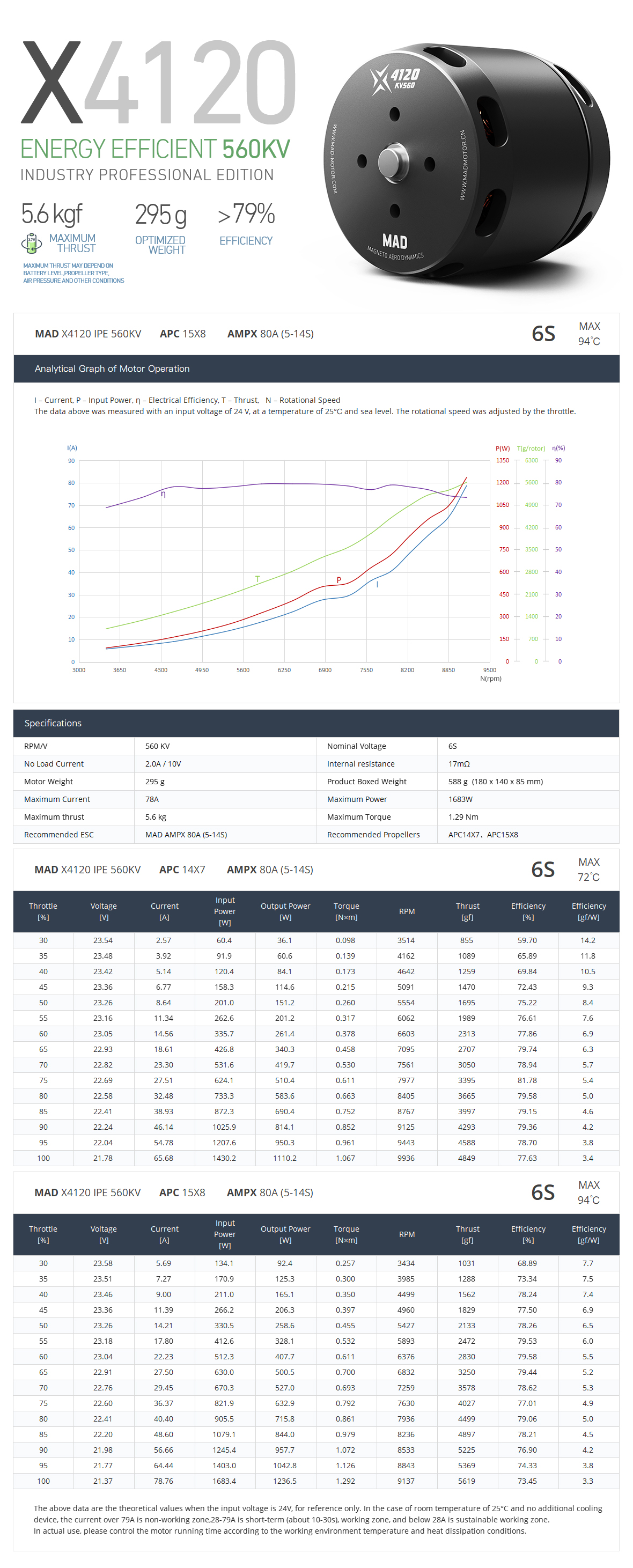

Motor Data

Motor Model	MAD X4120 IPE V1.0	Number of pole pairs	7
Stator	TAIWAN / Anticorrosive	Varnished wire Degree	180°C
Motor Size	D:50 × 69 mm	Magnet Degree	150°C
Degree of Protection	IP35	Cable Length	enamelled wire 100 mm
Centrifugal Heat Dissipation	YES	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:20 M3×4 / M8 Nut	Motor Balance	≤10 mg
Shaft Diameter	IN: 6 mm	Motor Mounting Holes	D:30 M4×4 / D:56 M4×4 / D:60 M4×4
Bearing	MR126 ZZ*2 / 696 ZZ	Disruptive test	500 V
